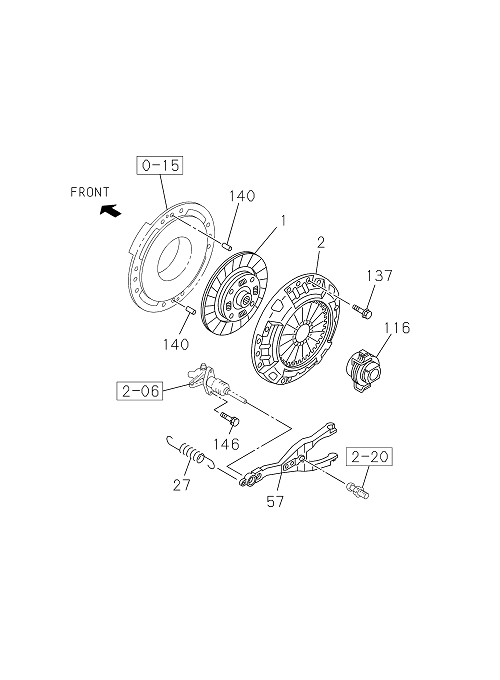

2-01 | CLUTCH
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-L8255 140-0 | DISC; CLUTCH | 1 | 2204- | ALL | (BVP) | ||
| 116 | I8-97255 313-A | BLOCK; SHIFT,CLU | 1 | 2204- | ALL | |||
| 146 | I0-28650 830-0 | BOLT; SLAVE CYL TO TRANS CASE | 2 | 2204- | ALL | M8X30 FLANGE | ||
| 116 | I6-97255 313-0 | BLOCK; SHIFT,CLU | 1 | 2204- | ALL | (IADG) | ||
| 001 | I8-98255 140-1 | DISC; CLUTCH | 1 | 2204- | ALL | |||
| 116 | I8-97255 313-0 | BLOCK; SHIFT,CLU | 1 | 2204- | ALL | |||
| 057 | I8-97255 303-0 | FORK; SHIFT,CLU | 1 | 2204- | ALL | |||
| 137 | I0-28051 016-0 | BOLT; CLU COVER | 10 | 2204- | ALL | M10X16 FLANGE | ||
| 002 | I8-97038 831-3 | PLATE ASM; PRESSURE,CLU | 1 | 2204- | ALL | |||
| 140 | I8-94410 361-0 | PIN; STRAIGHT | 2 | 2204- | ALL | L=25 | ||
| 002 | I8-L7038 831-0 | PLATE ASM; PRESSURE,CLU | 1 | 2204- | ALL | (BVP) |
