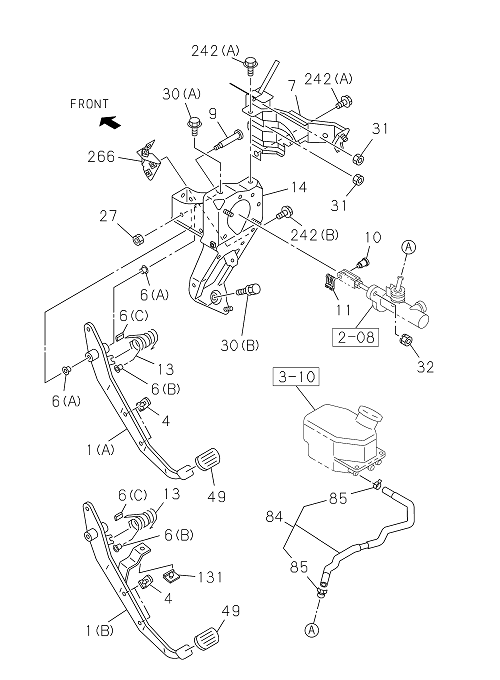

2-03 | CLUTCH PEDAL AND CONTROL
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 084 | I8-98218 207-1 | HOSE; RUBBER,CLU LINE | 1 | 2204- | NQR81 | |||
| 030 | I8-97313 188-0 | BOLT; CLU MTG BRKT | 1 | 2204- | ALL | (B) M10X22 W/PL WASHER | ||
| 131 | I8-97302 305-0 | STOPPER; CLU SW | 2 | 2204- | NPS81 | |||
| 007 | I8-98029 186-4 | BRACKET; CLU PEDAL | 1 | 2204- | ALL | |||
| 001 | I8-98374 437-0 | PEDAL; CLU | 1 | 2204- | NQR81 | (A) | ||
| 009 | I8-97866 667-0 | PIN; CLU PEDAL | 1 | 2204- | ALL | |||
| 242 | I0-28050 612-0 | BOLT; BRKT,CLUTCH | 2 | 2204- | ALL | (B) M6X12 FLANGE | ||
| 084 | I8-98217 270-1 | HOSE; RUBBER,CLU LINE | 1 | 2204- | NPS81 | |||
| 266 | I8-98340 773-1 | BRACKET; CLU SWITCH | 1 | 2204- | NPS81 | |||
| 031 | I8-94279 050-0 | NUT; MTG BRKT TO BODY | 2 | 2204- | ALL | M8 W/LK WASHER | ||
| 013 | I8-98374 602-0 | SPRING; ASSIST,CLU PEDAL | 1 | 2204- | ALL | |||
| 006 | I8-97853 619-0 | BUSHING; CLU PEDAL | 2 | 2204- | ALL | (B) | ||
| 085 | I8-98168 080-0 | CLIP; HOSE TO M/CYL | 2 | 2204- | ALL | |||
| 014 | I8-98074 425-0 | BRACKET ASM; CLU PEDAL MTG | 1 | 2204- | NPS81 | |||
| 030 | I0-28661 025-0 | BOLT; CLU MTG BRKT | 1 | 2204- | ALL | (A) M10X25 FLANGE | ||
| 032 | I8-94279 050-0 | NUT; BRKT TO CLU M/CYL | 2 | 2204- | ALL | M8 W/LK WASHER | ||
| 027 | I0-91380 010-0 | NUT; FULCRUM PIN | 1 | 2204- | ALL | M10 LOCK NUT FLANGE | ||
| 242 | I0-28450 816-0 | BOLT; BRKT,CLUTCH | 2 | 2204- | ALL | (A) M8X16 FLANGE | ||
| 001 | I8-98374 439-0 | PEDAL; CLU | 1 | 2204- | NPS81 | (B) | ||
| 049 | I8-97853 413-2 | RUBBER; PAD,CLU PEDAL | 1 | 2204- | ALL | |||
| 014 | I8-98034 750-0 | BRACKET ASM; CLU PEDAL MTG | 1 | 2204- | NQR81 | |||
| 010 | I8-98147 657-0 | PIN; CLU PEDAL | 1 | 2204- | ALL | |||
| 006 | I8-97853 620-0 | BUSHING; CLU PEDAL | 1 | 2204- | ALL | (C) | ||
| 011 | I8-98007 161-0 | PIN; SNAP,PUSH ROD TO PEDAL | 1 | 2204- | ALL | |||
| 006 | I8-94238 596-0 | BUSHING; CLU PEDAL | 2 | 2204- | ALL | (A) | ||
| 004 | I8-97853 534-1 | STOPPER; CLU PEDAL | 2 | 2204- | ALL |
