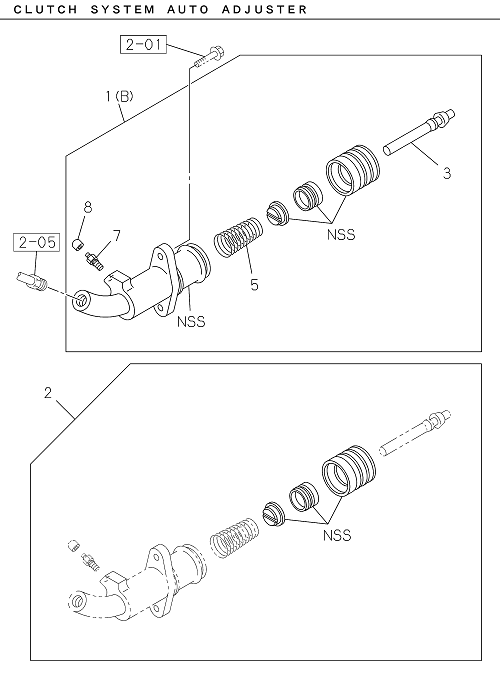

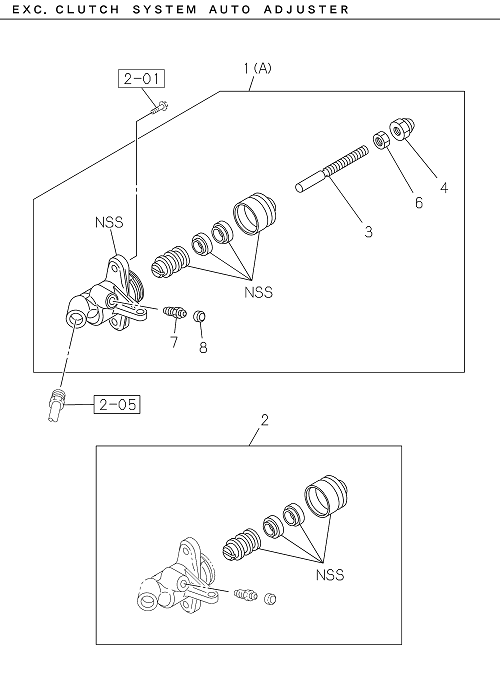

2-06 | CLUTCH SLAVE CYLINDER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 006 | I0-91111 510-0 | NUT; LK,ROD END | 1 | 2204- | ALL | M10 | ||
| 003 | I8-97349 910-0 | ROD; PUSH,SLAVE CYL | 1 | 2204- | ALL | |||
| 007 | I8-98020 477-0 | SCREW; BLEEDER,SLAVE CYL | 1 | 2204- | ALL | M8X10 | ||
| 001 | I8-97349 424-0 | CYLINDER; SLAVE,CLU | 1 | 2204- | ALL | (B) | ||
| 008 | I9-47619 005-0 | CAP; BLEEDER,SLAVE CYL | 1 | 2204- | ALL | OD=9.5 | ||
| 005 | I8-97160 570-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 2204- | ALL | |||
| 002 | I5-87832 285-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 2204- | ALL |
