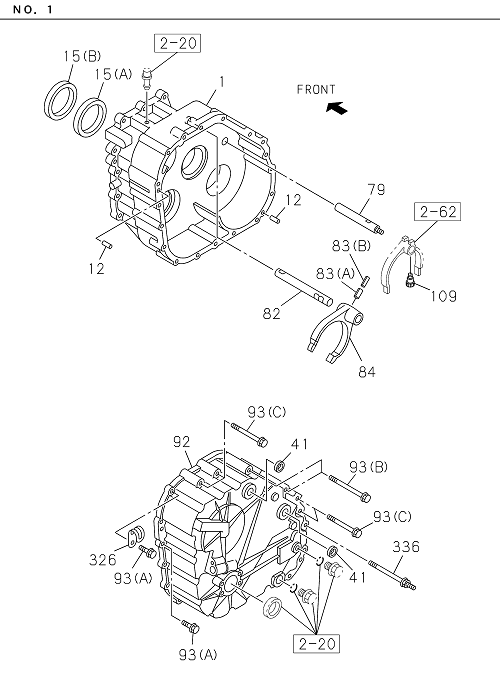

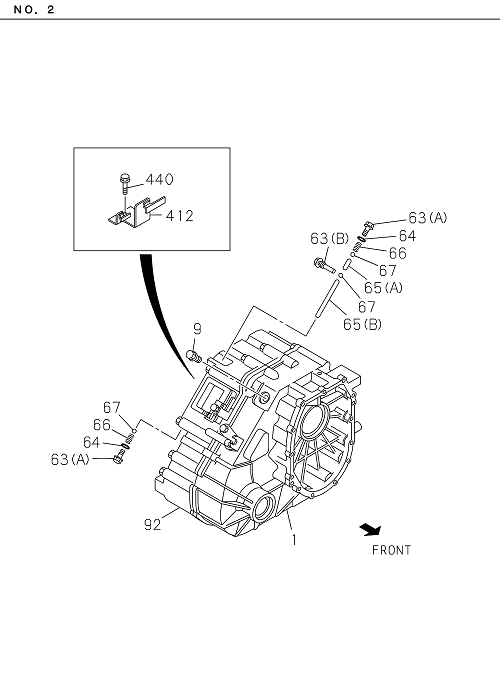

2-61 | TRANSFER CASE AND GEAR SHIFTER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 066 | I8-97326 927-0 | SPRING; DETENT,SHIFT ROD | 2 | 2204- | NPS81 | |||
| 065 | I8-98072 452-0 | ROD; INTER LOCK,SHIFT ROD | 1 | 2204- | NPS81 | (B) | ||
| 065 | I8-98072 451-0 | ROD; INTER LOCK,SHIFT ROD | 1 | 2204- | NPS81 | (A) | ||
| 063 | I8-98072 453-0 | PLUG; DETENT SPRING | 1 | 2204- | NPS81 | (B) | ||
| 001 | I8-98481 196-0 | CASE; TRANSFER | 1 | 2204- | NPS81 | |||
| 083 | I8-97326 932-0 | PIN; SPRING,LOW-HIGH,SHIFT BLOCK | 1 | 2204- | NPS81 | (A) | ||
| 326 | I8-97329 633-0 | CLIP; HARNESS | 1 | 2204- | NPS81 | ID=8 B=18 | ||
| 009 | I8-98363 542-0 | SWITCH; TRANSFER | 1 | 2204- | NPS81 | |||
| 093 | I8-97326 882-0 | BOLT; TRANSFER CASE TO RR COVER | 4 | 2204- | NPS81 | (C) M10X70 FLANGE | ||
| 015 | I8-97326 934-0 | SEAL; OIL,INPUT & FRT OUTPUT | 1 | 2204- | NPS81 | (A) | ||
| 063 | I8-97326 926-0 | PLUG; DETENT SPRING | 2 | 2204- | NPS81 | (A) | ||
| 064 | I8-97326 925-0 | GASKET; DETENT SPRING PLUG | 3 | 2204- | NPS81 | |||
| 067 | I8-97326 928-0 | BALL; DETENT,SHIFT ROD,TRANSFER | 3 | 2204- | NPS81 | |||
| 015 | I8-97327 114-0 | SEAL; OIL,INPUT & FRT OUTPUT | 1 | 2204- | NPS81 | (B) | ||
| 440 | I8-98072 445-0 | BOLT; W/WASHER | 1 | 2204- | NPS81 | |||
| 012 | I8-97326 880-0 | PIN; STRAIGHT,TRANSFER CASE | 2 | 2204- | NPS81 | |||
| 109 | I1-09052 034-2 | BOLT; TAPER,TRANSFER CASE | 1 | 2204- | NPS81 | |||
| 412 | I8-97327 662-1 | BRACKET; SW CONN | 1 | 2204- | NPS81 | |||
| 336 | I8-98098 017-0 | STUD; CASE | 1 | 2204- | NPS81 | |||
| 084 | I8-98072 455-0 | FORK; SHIFT,LOW & HIGH | 1 | 2204- | NPS81 | |||
| 093 | I8-97326 881-0 | BOLT; TRANSFER CASE TO RR COVER | 2 | 2204- | NPS81 | (B) M10X100 FLANGE | ||
| 041 | I8-97326 887-0 | SEAL; OIL,SHIFT ROD | 2 | 2204- | NPS81 | |||
| 083 | I8-97326 931-0 | PIN; SPRING,LOW-HIGH,SHIFT BLOCK | 1 | 2204- | NPS81 | (B) | ||
| 079 | I8-97357 217-0 | ROD; SHIFT,NEUTRAL & FRT DRIVE | 1 | 2204- | NPS81 | |||
| 082 | I8-98072 454-0 | ROD; SHIFT,LOW & HIGH | 1 | 2204- | NPS81 | |||
| 093 | I8-97326 883-0 | BOLT; TRANSFER CASE TO RR COVER | 11 | 2204- | NPS81 | (A) M10X40 FLANGE | ||
| 092 | I8-98072 447-1 | COVER; RR,TRANSFER | 1 | 2204- | NPS81 |
