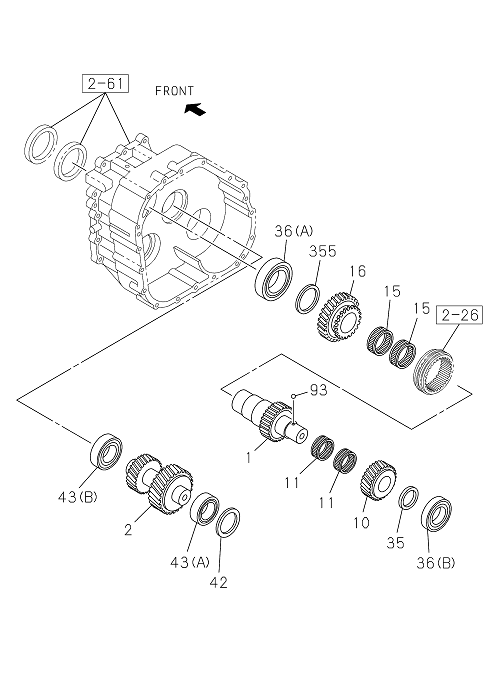

2-65 | MANUAL TRANSFER GEAR; INPUT AND IDLE
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 035 | I8-97326 937-0 | WASHER; THRUST,LOW GEAR, TRANSFER | 1 | 2204- | NPS81 | |||
| 355 | I8-97326 942-0 | WASHER; THRUST,INPUT SHAFT | 1 | 2204- | NPS81 | |||
| 002 | I8-97326 921-0 | SHAFT; GEAR,IDLE | 1 | 2204- | NPS81 | |||
| 016 | I8-97326 944-0 | GEAR; INPUT,HIGH | 1 | 2204- | NPS81 | |||
| 042 | I8-97326 917-0 | SHIM; IDLE SHAFT BRG | 1 | 2204- | NPS81 | T=0.25 | ||
| 036 | I8-97326 936-0 | BEARING; IDLE SHAFT,TRANSFER | 1 | 2204- | NPS81 | (A) | ||
| 043 | I8-97326 919-0 | BEARING; ROLLER,IDLE SHAFT | 1 | 2204- | NPS81 | (A) | ||
| 042 | I8-97326 916-0 | SHIM; IDLE SHAFT BRG | 1 | 2204- | NPS81 | T=0.30 | ||
| 093 | I8-97328 680-0 | BALL; INPUT SHAFT | 2 | 2204- | NPS81 | |||
| 042 | I8-97326 912-0 | SHIM; IDLE SHAFT BRG | 1 | 2204- | NPS81 | T=0.18 | ||
| 011 | I8-97351 791-0 | BEARING; LOW GEAR,TRANSFER | 2 | 2204- | NPS81 | |||
| 036 | I8-97326 935-0 | BEARING; IDLE SHAFT,TRANSFER | 1 | 2204- | NPS81 | (B) | ||
| 042 | I8-97326 915-0 | SHIM; IDLE SHAFT BRG | 1 | 2204- | NPS81 | T=0.35 | ||
| 043 | I8-97326 920-0 | BEARING; ROLLER,IDLE SHAFT | 1 | 2204- | NPS81 | (B) | ||
| 042 | I8-97326 913-0 | SHIM; IDLE SHAFT BRG | 2 | 2204- | NPS81 | T=0.50 | ||
| 001 | I8-97326 946-0 | SHAFT; GEAR,INPUT | 1 | 2204- | NPS81 | |||
| 015 | I8-97326 943-0 | BEARING; HIGH GEAR,TRANSFER | 2 | 2204- | NPS81 | |||
| 010 | I8-98000 326-0 | GEAR; INPUT,LOW | 1 | 2204- | NPS81 | |||
| 042 | I8-97326 914-0 | SHIM; IDLE SHAFT BRG | 1 | 2204- | NPS81 | T=0.40 |
