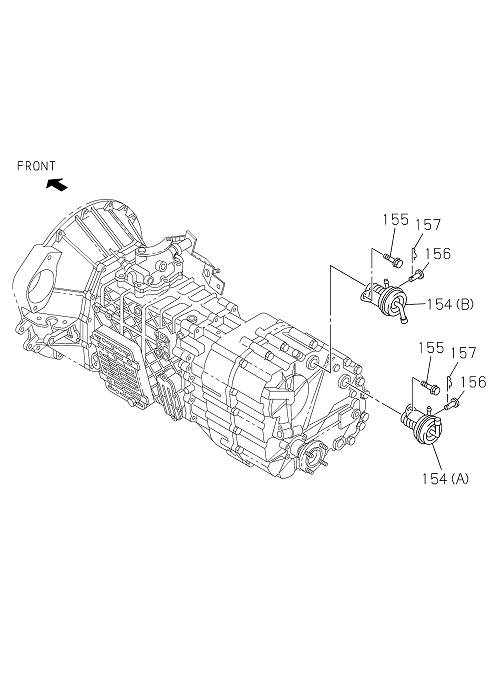

| 156 |
I0-82353 416-0 |
|
PIN; JOINT,SELECT ACTUATOR |
2 |
2204- |
|
NPS81 |
OD=4 L=16 |
| 154 |
I8-98031 513-0 |
|
ACTUATOR; SELECT,TRANSFER |
1 |
2204- |
|
NPS81 |
(A) |
| 155 |
I7-04508 025-A |
|
BOLT; SELECT ACTUATOR |
4 |
2204- |
|
ALL |
M8X20 FLANGE |
| 157 |
I8-97079 213-0 |
|
PIN; SNAP,SELECT ACTUATOR |
2 |
2204- |
|
NPS81 |
|
| 156 |
I0-82353 416-0 |
|
PIN; JOINT,SELECT ACTUATOR |
2 |
2204- |
|
NPS81 |
OD=4 L=16 |
| 154 |
I8-98067 973-0 |
|
ACTUATOR; SELECT,TRANSFER |
1 |
2204- |
|
NPS81 |
(B) |
| 157 |
I8-97079 213-0 |
|
PIN; SNAP,SELECT ACTUATOR |
2 |
2204- |
|
NPS81 |
|
| 154 |
I8-98031 513-0 |
|
ACTUATOR; SELECT,TRANSFER |
1 |
2204- |
|
NPS81 |
(A) |
| 155 |
I7-04508 025-A |
|
BOLT; SELECT ACTUATOR |
4 |
2204- |
|
ALL |
M8X20 FLANGE |
| 154 |
I8-98067 973-0 |
|
ACTUATOR; SELECT,TRANSFER |
1 |
2204- |
|
NPS81 |
(B) |
