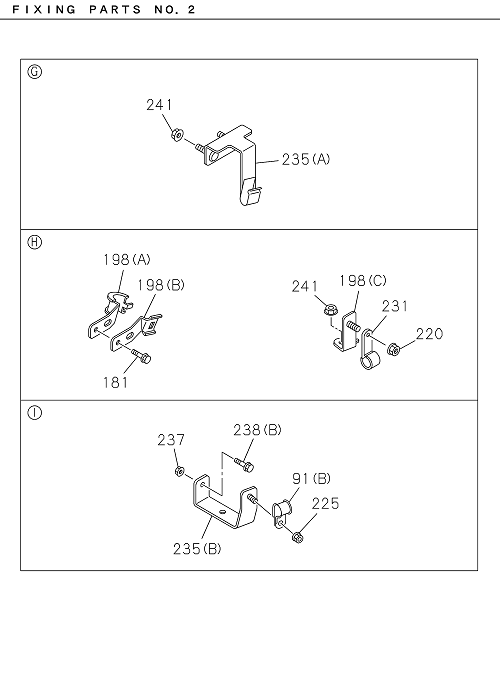

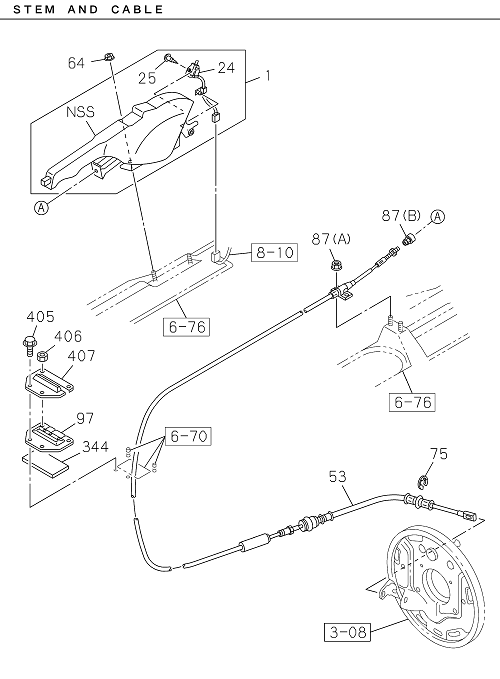

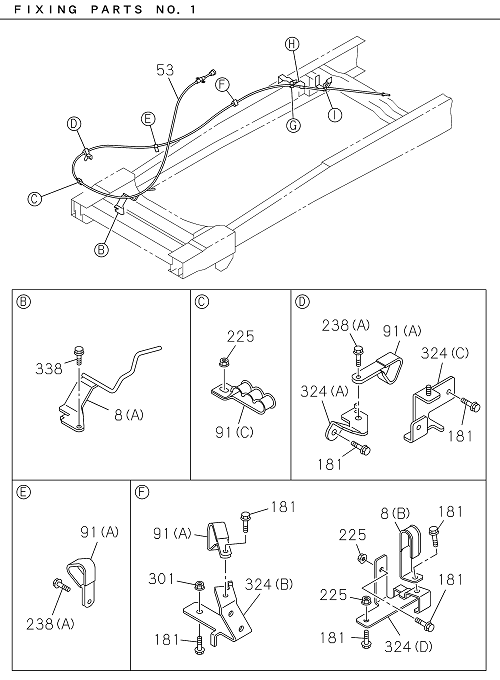

3-11 | PARKING BRAKE CONTROL
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 338 | I8-98046 876-0 | SCREW; GUIDE | 1 | 2204- | ALL | BOLT M8X35 FLANGE | ||
| 198 | I8-97303 973-0 | BRACKET; CABLE | 1 | 2204- | NPS81 | (B) | ||
| 087 | I7-05108 010-A | NUT | 2 | 2204- | ALL | (A) M8 FLANGE | ||
| 075 | I0-91805 512-0 | RING; SNAP,HAND BRK CABLE | 1 | 2204- | ALL | ID=12 | ||
| 238 | I0-28651 030-0 | BOLT; CLIP TO BRKT | 1 | 2204- | ALL | (B) M10X30 FLANGE | ||
| 324 | I8-98034 185-1 | BRACKET | 1 | 2204- | ALL | (B) | ||
| 097 | I8-97065 212-1 | GROMMET; PARKING BRK CABLE | 1 | 2204- | ALL | |||
| 324 | I8-98034 115-0 | BRACKET | 1 | 2204- | ALL | (A) | ||
| 237 | I0-91180 110-0 | NUT; BRKT TO FRAME | 1 | 2204- | ALL | M10 FLANGE | ||
| 324 | I8-98222 356-1 | BRACKET | 1 | 2204- | ALL | (D) | ||
| 087 | I8-98034 313-1 | NUT | 1 | 2204- | ALL | (B) M6 | ||
| 001 | I8-97426 513-0 | STEM ASM; PARKING BRK | 1 | 2204- | ALL | GRAY | ||
| 324 | I8-98216 763-1 | BRACKET | 1 | 2204- | ALL | (C) | ||
| 225 | I7-05108 010-A | NUT; CABLE CLIP | 1 | 2204- | ALL | M8 FLANGE | ||
| 091 | I8-98023 622-0 | CLIP; PARKING BRK CABLE | 1 | 2204- | ALL | (C) | ||
| 075 | I0-91805 512-0 | RING; SNAP,HAND BRK CABLE | 1 | 2204- | ALL | ID=12 | ||
| 008 | I8-98222 357-0 | GUIDE; PARKING BRK | 1 | 2204- | ALL | (B) | ||
| 025 | I8-98152 463-0 | SCREW; SW,PARKING BRK | 1 | 2204- | ALL | |||
| 091 | I1-09701 012-0 | CLIP; PARKING BRK CABLE | 1 | 2204- | ALL | (B) ID=14.5 L=20 | ||
| 024 | I8-98238 611-0 | SWITCH ASM; PARK BRK | 1 | 2204- | ALL | |||
| 053 | I7-85202 213-A | CABLE; PARK BRK,FRT LWR | 1 | 2204- | NPS81 | |||
| 235 | I8-98087 322-0 | BRACKET; CONT CABLE TO FRAME | 1 | 2204- | ALL | (B) | ||
| 181 | I0-28050 612-0 | BOLT; BRKT | 2 | 2204- | ALL | M6X12 FLANGE | ||
| 405 | I0-28450 620-0 | BOLT; GROMMET | 2 | 2204- | ALL | M6X20 FLANGE | ||
| 008 | I8-98191 525-0 | GUIDE; PARKING BRK | 1 | 2204- | ALL | (A) | ||
| 344 | I8-97096 753-0 | GASKET; DASH LWR | 1 | 2204- | NPS81 | |||
| 053 | I8-98041 315-A | CABLE; PARK BRK,FRT LWR | 1 | 2204- | NQR81 | |||
| 238 | I0-28650 825-0 | BOLT; CLIP TO BRKT | 1 | 2204- | ALL | (A) M8X25 FLANGE | ||
| 181 | I0-28650 825-0 | BOLT; BRKT | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 406 | I0-91180 106-0 | NUT; GROMMET | 2 | 2204- | ALL | M6 FLANGE | ||
| 198 | I8-98097 898-1 | BRACKET; CABLE | 1 | 2204- | NPS81 | (C) | ||
| 181 | I0-28050 816-0 | BOLT; BRKT | 1 | 2204- | ALL | M8X16 FLANGE | ||
| 301 | I7-05108 010-A | NUT; BRKT,BRK & CLU PEDAL | 1 | 2204- | ALL | M8 FLANGE | ||
| 091 | I1-09701 012-0 | CLIP; PARKING BRK CABLE | 1 | 2204- | ALL | (B) ID=14.5 L=20 | ||
| 338 | I0-28650 825-0 | SCREW; GUIDE | 1 | 2204- | ALL | BOLT M8X25 FLANGE | ||
| 091 | I8-97036 333-1 | CLIP; PARKING BRK CABLE | 1 | 2204- | ALL | (A) | ||
| 241 | I7-05110 010-A | NUT; BRKT | 1 | 2204- | ALL | M10 FLANGE | ||
| 091 | I8-97036 333-1 | CLIP; PARKING BRK CABLE | 1 | 2204- | ALL | (A) | ||
| 241 | I7-05108 010-A | NUT; BRKT | 1 | 2204- | ALL | M8 FLANGE | ||
| 231 | I0-95235 536-0 | CLIP; BAND,BRK CABLE | 1 | 2204- | NPS81 | ID=16 L=20 | ||
| 198 | I8-97303 974-0 | BRACKET; CABLE | 1 | 2204- | NPS81 | (A) | ||
| 091 | I8-97036 333-1 | CLIP; PARKING BRK CABLE | 1 | 2204- | ALL | (A) | ||
| 220 | I7-05108 010-A | NUT; CLIP,PARKING CONT CABLE | 1 | 2204- | ALL | M8 FLANGE | ||
| 235 | I8-98106 986-1 | BRACKET; CONT CABLE TO FRAME | 1 | 2204- | ALL | (A) | ||
| 064 | I0-91380 008-0 | NUT; PARKING BRK | 2 | 2204- | ALL | M8 LOCK NUT FLANGE | ||
| 407 | I1-33657 674-0 | RETAINER; GROMMET | 1 | 2204- | ALL |
