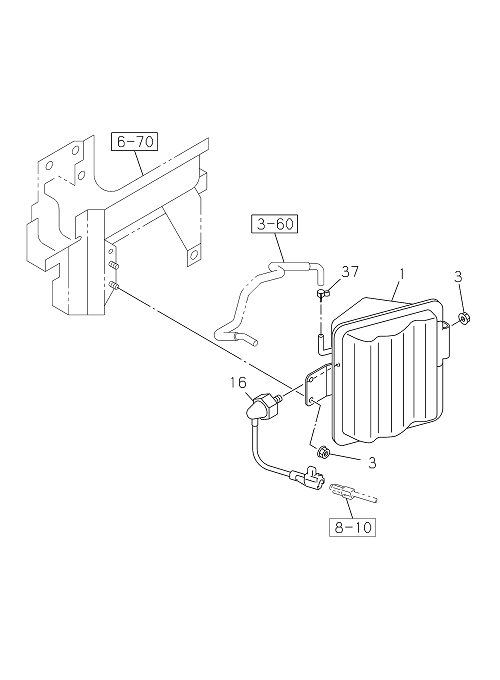

3-21 | VACUUM TANK
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98009 122-2 | TANK; VAC,MAIN | 1 | 2204- | NPS81 | |||
| 037 | I8-94448 727-0 | CLIP; RUBBER HOSE | 2 | 2204- | NPS81 | ID=15.5 | ||
| 016 | I8-98049 417-0 | SWITCH; VAC | 1 | 2204- | NPS81 | |||
| 003 | I0-91380 006-0 | NUT; VAC TANK TO BRKT | 3 | 2204- | NPS81 | |||
| 037 | I8-94448 727-0 | CLIP; RUBBER HOSE | 1 | 2204- | NPS81 | ID=15.5 | ||
| 037 | I8-94448 727-0 | CLIP; RUBBER HOSE | 1 | 2204- | NPS81 | ID=15.5 | ||
| 003 | I0-91380 006-0 | NUT; VAC TANK TO BRKT | 3 | 2204- | NPS81 |
