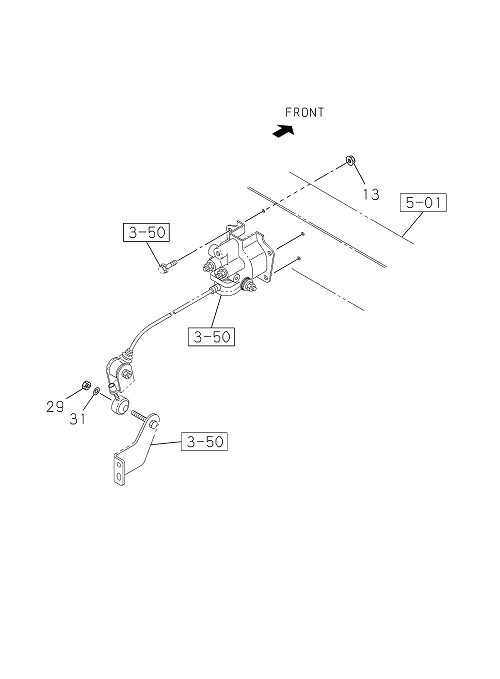

3-45 | LOAD SENSING PROPORTIONING VALVE
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 029 | I7-05108 010-A | NUT; SHACKLE | 1 | 2204- | ALL | M8 FLANGE | ||
| 013 | I7-05108 010-A | NUT; LSPV TO BRKT | 4 | 2204- | ALL | M8 FLANGE | ||
| 031 | I0-91610 708-0 | WASHER; LK,SHACKLE | 1 | 2204- | ALL | ID=8.4 OD=22 |
