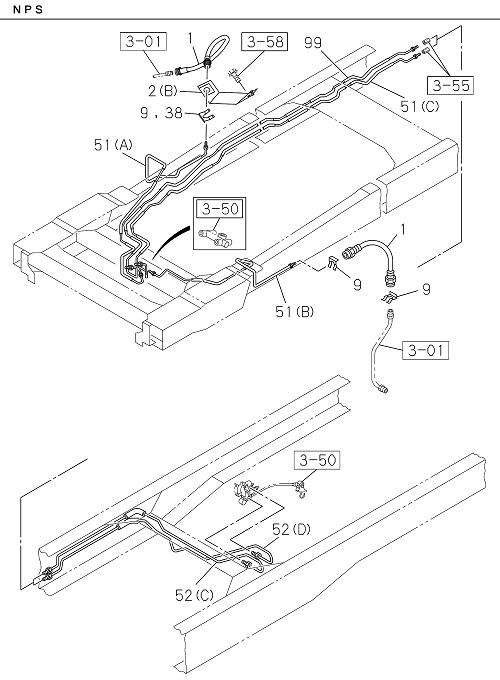

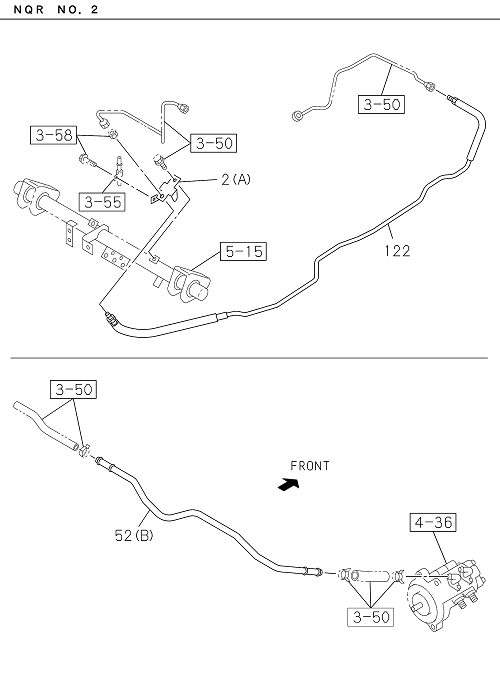

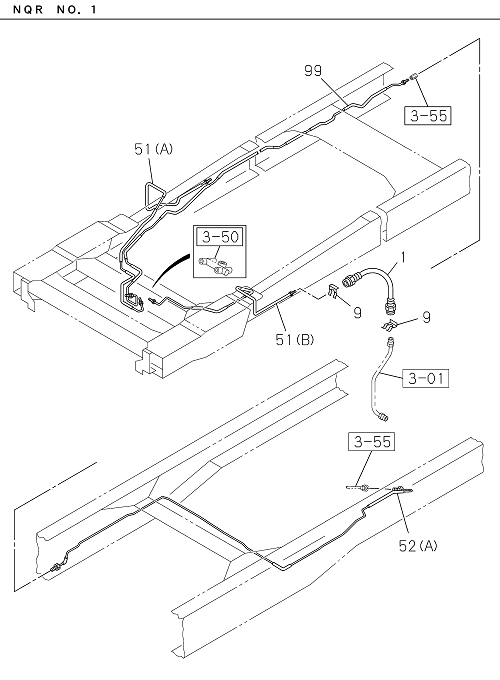

3-52 | BRAKE PIPING; OIL,FRONT
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 051 | I8-98065 765-1 | PIPE; BRK | 1 | 2204- | NQR81 | (A) 5/6WAY TO FRONT | ||
| 122 | I8-97672 164-0 | PIPE ASM; BRK,2 WAY | 1 | 2204- | NQR81 | |||
| 002 | I8-98049 943-1 | BRACKET; FLEX HOSE,FRT BRK | 1 | 2204- | NPS81 | (B) | ||
| 001 | I8-97039 543-1 | HOSE; FLEX,FRT BRK | 2 | 2204- | ALL | L=430 | ||
| 052 | I8-98319 374-0 | PIPE; BRK | 1 | 2204- | NQR81 | (B) | ||
| 051 | I8-98159 906-0 | PIPE; BRK | 1 | 2204- | NQR81 | (B) 5/6WAY TO FRONT | ||
| 002 | I8-98136 577-0 | BRACKET; FLEX HOSE,FRT BRK | 1 | 2204- | NQR81 | (A) | ||
| 051 | I8-98159 902-0 | PIPE; BRK | 1 | 2204- | NPS81 | (B) 6WAY TO 2WAY,FRONT | ||
| 052 | I8-98057 265-0 | PIPE; BRK | 1 | 2204- | NPS81 | (D) 2WAY TO LSPV,REAR | ||
| 009 | I8-97360 054-0 | CLIP; FLEX HOSE,FRT BRK | 2 | 2204- | ALL | |||
| 052 | I8-98159 766-0 | PIPE; BRK | 1 | 2204- | NQR81 | (A) 2WAY TO REAR | ||
| 051 | I8-98057 260-0 | PIPE; BRK | 1 | 2204- | NPS81 | (C) 4/6WAY TO 2WAY,FRONT | ||
| 099 | I8-98057 259-0 | PIPE ASM; 4/5/6 WAY | 1 | 2204- | ALL | 4/6WAY TO 2WAY,REAR | ||
| 001 | I8-97039 543-1 | HOSE; FLEX,FRT BRK | 2 | 2204- | ALL | L=430 | ||
| 052 | I8-98057 268-0 | PIPE; BRK | 1 | 2204- | NPS81 | (C) 2WAY TO LSPV,FRONT | ||
| 051 | I8-98060 402-1 | PIPE; BRK | 1 | 2204- | NPS81 | (A) 6WAY TO 2WAY,FRONT | ||
| 038 | I8-97360 054-0 | CLIP | 2 | 2204- | ALL |
