3-58 | FIXING PARTS; OIL PIPING
ELF
NPS81 NQR81 E4

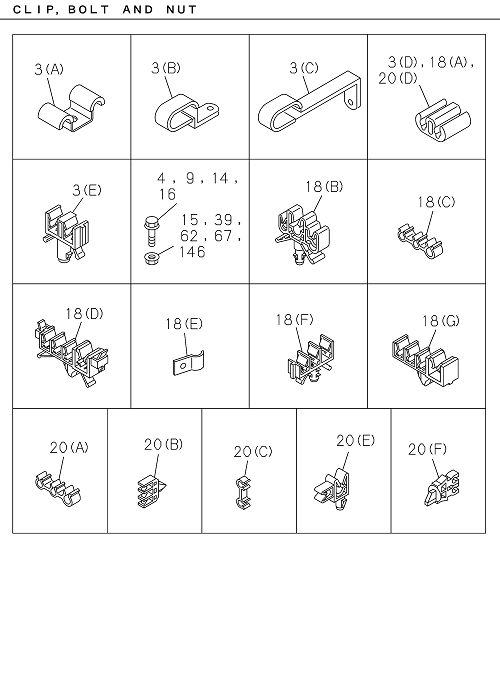

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

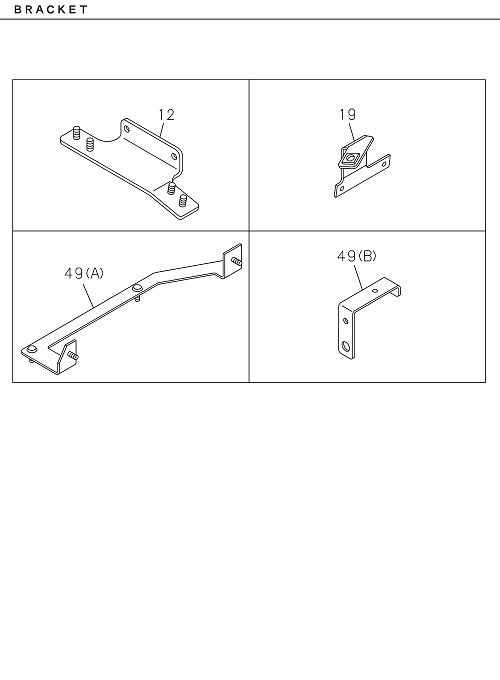

| 049 | I8-98041 600-0 | BRACKET; BRK PIPE | 1 | 2204- | NQR81 | (A) | ||
| 020 | I8-94250 923-2 | CLIP; BRK PIPE | 1 | 2204- | ALL | (B) ID=6.35 & 4.76X2 | ||
| 019 | I8-97389 845-2 | BRACKET; OIL PIPE | 1 | 2204- | ALL | |||
| 020 | I8-94128 307-0 | CLIP; BRK PIPE | 1 | 2204- | NPS81 | (F) | ||
| 018 | I8-97326 158-1 | CLIP; BRK PIPE | 7 | 2204- | ALL | (D) ID=10 & 4.76X3 | ||
| 020 | I8-97215 437-0 | CLIP; BRK PIPE | 1 | 2204- | ALL | (E) ID=12 & 6.35 | ||
| 067 | I0-91111 514-0 | NUT; BRKT | 1 | 2204- | ALL | M14 | ||
| 020 | I8-94146 043-0 | CLIP; BRK PIPE | 1 | 2204- | ALL | (A) ID=6.4 & 4.8X2 | ||
| 018 | I8-97326 158-1 | CLIP; BRK PIPE | 6 | 2204- | ALL | (D) ID=10 & 4.76X3 | ||
| 067 | I7-05108 010-A | NUT; BRKT | 2 | 2204- | ALL | M8 FLANGE | ||
| 016 | I7-04508 025-A | BOLT; BRKT TO FRAME | 1 | 2204- | ALL | M8X20 FLANGE | ||
| 062 | I0-91180 110-0 | NUT | 2 | 2204- | ALL | M10 FLANGE | ||
| 020 | I8-94122 333-0 | CLIP; BRK PIPE | 1 | 2204- | NPS81 | (C) ID=4.8X2 | ||
| 012 | I8-98319 375-0 | BRACKET; OIL PIPE | 1 | 2204- | NQR81 | |||
| 018 | I8-97064 484-1 | CLIP; BRK PIPE | 3 | 2204- | ALL | (F) ID=10 & 6.4 & 4.8 | ||
| 018 | I8-98153 939-1 | CLIP; BRK PIPE | 4 | 2204- | ALL | (B) ID=10 OR 12 & 6.35 OR 8.0 & 4. 76 OR 6.35 | ||
| 003 | I1-09700 072-0 | CLIP; BRK PIPE | 1 | 2204- | NQR81 | (A) ID=13 & 13 L=16 & 16 | ||
| 009 | I0-28650 825-0 | BOLT; BRKT | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 018 | I8-97326 158-1 | CLIP; BRK PIPE | 4 | 2204- | ALL | (D) ID=10 & 4.76X3 | ||
| 146 | I7-05108 010-A | NUT; PIPE | 1 | 2204- | ALL | M8 FLANGE | ||
| 004 | I0-28651 025-0 | BOLT; BRKT | 1 | 2204- | ALL | M10X25 FLANGE | ||
| 018 | I8-97168 819-0 | CLIP; BRK PIPE | 3 | 2204- | ALL | (G) ID=10 & 4.76X3 | ||
| 003 | I8-97018 546-0 | CLIP; BRK PIPE | 3 | 2204- | ALL | (E) ID=10X2 H=37.5 | ||
| 003 | I8-94252 455-2 | CLIP; BRK PIPE | 4 | 2204- | NQR81 | (D) ID=10X2 H=22 | ||
| 067 | I0-91180 110-0 | NUT; BRKT | 1 | 2204- | ALL | M10 FLANGE | ||
| 146 | I0-91180 110-0 | NUT; PIPE | 2 | 2204- | ALL | M10 FLANGE | ||
| 049 | I8-98033 802-1 | BRACKET; BRK PIPE | 1 | 2204- | NQR81 | (B) | ||
| 018 | I1-09700 372-0 | CLIP; BRK PIPE | 2 | 2204- | ALL | (E) B=18 L=20 | ||
| 018 | I8-94389 060-0 | CLIP; BRK PIPE | 1 | 2204- | NPS81 | (A) ID=4.8X2 | ||
| 015 | I7-05108 010-A | NUT; CLIP,OIL PIPE | 2 | 2204- | ALL | M8 FLANGE | ||
| 018 | I8-94146 043-0 | CLIP; BRK PIPE | 1 | 2204- | ALL | (C) ID=6.4 & 4.8X2 | ||
| 004 | I0-28650 825-0 | BOLT; BRKT | 2 | 2204- | ALL | M8X25 FLANGE | ||
| 018 | I8-97064 484-1 | CLIP; BRK PIPE | 2 | 2204- | ALL | (F) ID=10 & 6.4 & 4.8 | ||
| 039 | I7-05108 010-A | NUT; BRKT FIX | 1 | 2204- | ALL | M8 FLANGE | ||
| 014 | I0-28650 825-0 | BOLT; CLIP,OIL PIPE | 2 | 2204- | ALL | M8X25 FLANGE | ||
| 003 | I1-09701 101-0 | CLIP; BRK PIPE | 1 | 2204- | NQR81 | (C) ID=14X2 H=25 L=30 | ||
| 020 | I8-94474 113-0 | CLIP; BRK PIPE | 3 | 2204- | NQR81 | (D) ID=6.35 & 6.35 | ||
| 003 | I1-09700 744-0 | CLIP; BRK PIPE | 1 | 2204- | NQR81 | (B) ID=14X2 H=15 L=20 |
