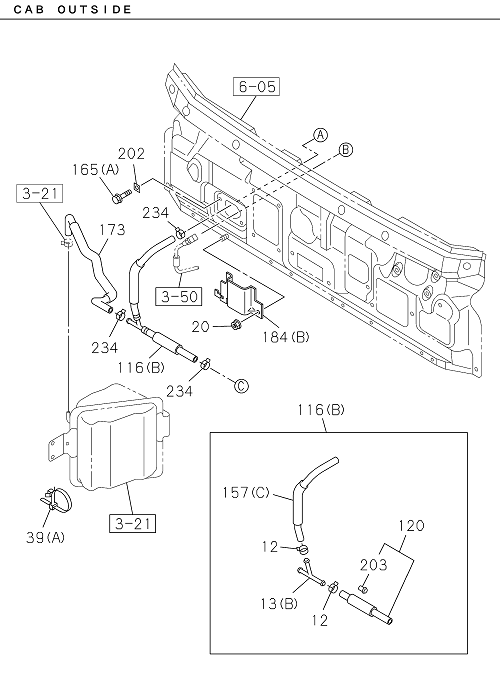

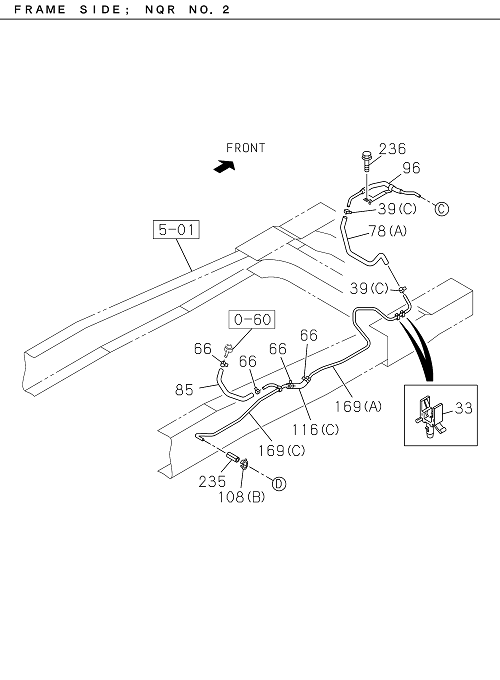

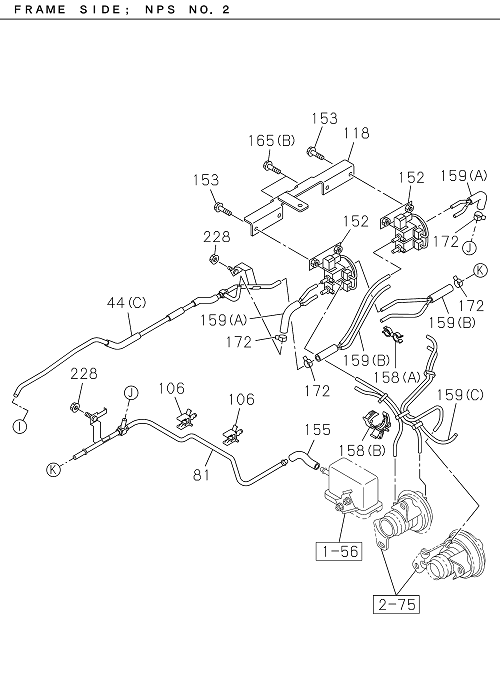

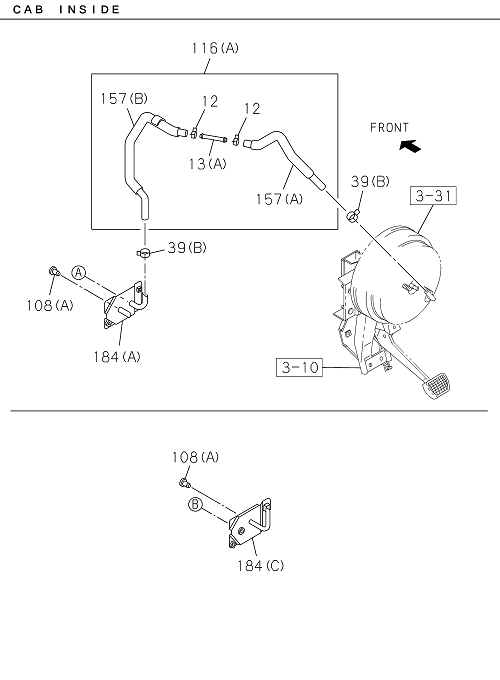

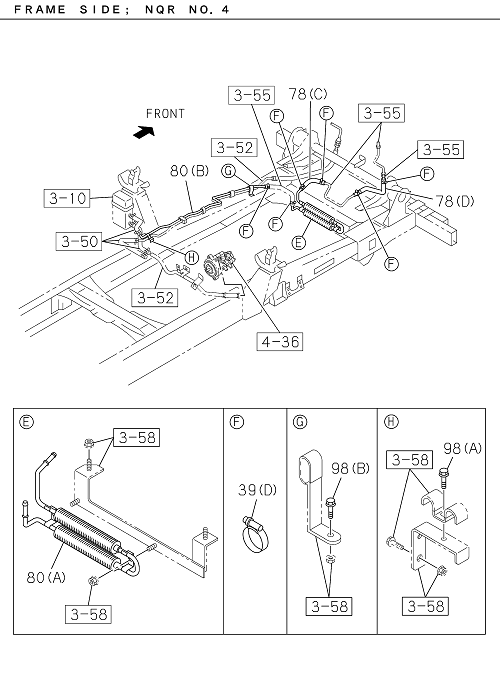

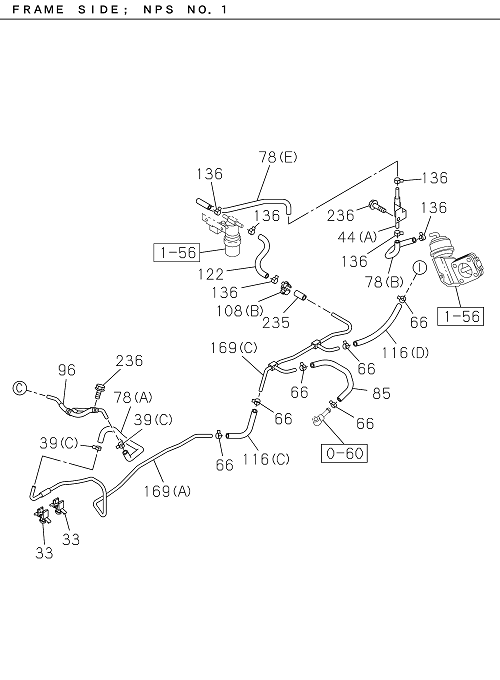

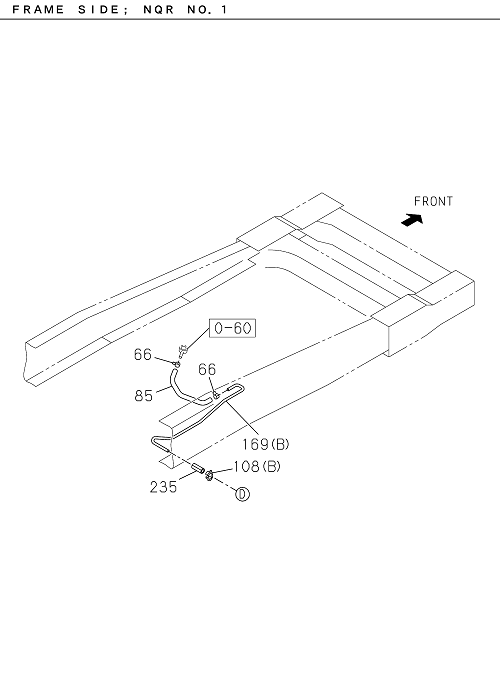

3-60 | BRAKE PIPING; VACUUM
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 169 | I8-98111 766-0 | PIPE; VAC,BOOSTER SIDE | 1 | 2204- | NPS81 | (A) | ||
| 184 | I8-98017 628-1 | BRACKET; UNION FIX | 1 | 2204- | ALL | (B) | ||
| 202 | I8-97856 616-0 | SEAL | 2 | 2204- | ALL | |||
| 172 | I8-98008 098-0 | CLIP; VAC HOSE | 4 | 2204- | ALL | ID=16 | ||
| 013 | I8-98035 106-0 | JOINT; HOSE,VAC | 1 | 2204- | NPS81 | (B) | ||
| 153 | I0-28651 025-0 | BOLT; VSV | 4 | 2204- | ALL | M10X25 FLANGE | ||
| 078 | I0-08258 300-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NPS81 | (B) L=260 | ||
| 085 | I8-98216 780-1 | HOSE; VAC,ENG SIDE | 1 | 2204- | ALL | |||
| 039 | I1-09987 182-0 | CLIP; HOSE,VAC | 1 | 2204- | ALL | (A) L=170.3 | ||
| 039 | I8-98008 098-0 | CLIP; HOSE,VAC | 2 | 2204- | NPS81 | (B) ID=16 | ||
| 033 | I8-94462 219-0 | CLIP; VAC PIPE | 2 | 2204- | NPS81 | ID=10 H=40 | ||
| 169 | I8-98082 405-1 | PIPE; VAC,BOOSTER SIDE | 1 | 2204- | NQR81 | (B) | ||
| 228 | I0-91180 110-0 | NUT; PIPE | 2 | 2204- | ALL | M10 FLANGE | ||
| 039 | I8-98030 682-0 | CLIP; HOSE,VAC | 2 | 2204- | ALL | (C) ID=16 | ||
| 234 | I8-98008 098-0 | CLAMP; PIPE | 3 | 2204- | NPS81 | ID=16 | ||
| 152 | I8-98256 404-0 | VALVE; VAC SWITCHING,TRANSFER CONT | 2 | 2204- | NPS81 | |||
| 020 | I0-91180 106-0 | NUT; BRKT | 1 | 2204- | ALL | M6 FLANGE | ||
| 169 | I8-98100 233-1 | PIPE; VAC,BOOSTER SIDE | 1 | 2204- | NPS81 | (C) | ||
| 106 | I8-94462 219-0 | CLIP; PIPE | 2 | 2204- | NPS81 | ID=10 H=40 | ||
| 012 | I8-98008 097-0 | CLIP; HOSE | 2 | 2204- | NPS81 | ID=15.5 | ||
| 184 | I8-98183 467-1 | BRACKET; UNION FIX | 1 | 2204- | NPS81 | (A) | ||
| 169 | I8-98111 766-0 | PIPE; VAC,BOOSTER SIDE | 1 | 2204- | NPS81 | (A) | ||
| 078 | I8-98171 287-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NPS81 | (E) | ||
| 012 | I8-98008 097-0 | CLIP; HOSE | 2 | 2204- | NPS81 | ID=15.5 | ||
| 155 | I0-08258 300-0 | HOSE; VAC,AIR FILTER | 1 | 2204- | NPS81 | L=130 | ||
| 165 | I8-98031 842-0 | BOLT; BRKT | 2 | 2204- | ALL | (A) M6X20 W/LK&PL WASHER | ||
| 120 | I8-97389 696-2 | HOSE; VAC,M/VAC,W/CHECK VALVE | 1 | 2204- | NPS81 | |||
| 116 | I8-98115 399-1 | HOSE; VAC,M/VAC | 1 | 2204- | NPS81 | (A) | ||
| 080 | I8-97386 605-0 | PIPE; VAC,ENG SIDE | 1 | 2204- | NQR81 | (A) | ||
| 044 | I8-98103 009-0 | PIPE; VAC,MAG VLV | 1 | 2204- | NPS81 | (C) | ||
| 236 | I0-28650 825-0 | BOLT; PIPE | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 033 | I8-94462 219-0 | CLIP; VAC PIPE | 2 | 2204- | NPS81 | ID=10 H=40 | ||
| 116 | I0-08158 300-0 | HOSE; VAC,M/VAC | 1 | 2204- | NPS81 | (C) L=140 | ||
| 044 | I8-98034 281-1 | PIPE; VAC,MAG VLV | 1 | 2204- | NQR81 | (B) | ||
| 116 | I8-97389 690-3 | HOSE; VAC,M/VAC | 1 | 2204- | NPS81 | (B) | ||
| 203 | I8-94104 021-0 | VALVE; CHECK | 1 | 2204- | NPS81 | |||
| 012 | I8-98008 097-0 | CLIP; HOSE | 2 | 2204- | NPS81 | ID=15.5 | ||
| 136 | I8-98008 098-0 | CLIP; VAC HOSE | 6 | 2204- | ALL | ID=16 | ||
| 184 | I8-98017 628-1 | BRACKET; UNION FIX | 1 | 2204- | ALL | (B) | ||
| 158 | I8-94473 320-0 | CLIP; HOSE | 1 | 2204- | NPS81 | (A) ID=16.5 & 16.5 | ||
| 159 | I8-97660 873-0 | HOSE ASM; VAC | 2 | 2204- | NPS81 | (B) | ||
| 078 | I8-98133 654-1 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NQR81 | (F) | ||
| 173 | I8-98107 558-0 | HOSE; VAC,VAC TANK SIDE | 1 | 2204- | NPS81 | |||
| 159 | I8-97660 874-0 | HOSE ASM; VAC | 2 | 2204- | NPS81 | (A) | ||
| 184 | I8-98193 145-0 | BRACKET; UNION FIX | 1 | 2204- | NQR81 | (C) | ||
| 165 | I0-28651 030-0 | BOLT; BRKT | 2 | 2204- | ALL | (B) M10X30 FLANGE | ||
| 096 | I8-98220 579-0 | PIPE; VAC,M/VAC TO VAC PUMP | 1 | 2204- | NPS81 | |||
| 039 | I1-09987 182-0 | CLIP; HOSE,VAC | 1 | 2204- | ALL | (A) L=170.3 | ||
| 108 | I8-94128 319-A | GROMMET; PIPE | 1 | 2204- | ALL | (B) ID=17 | ||
| 078 | I8-97386 589-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NQR81 | (C) | ||
| 098 | I0-28050 612-0 | BOLT; VAC PIPE FIX | 2 | 2204- | ALL | (A) M6X12 FLANGE | ||
| 122 | I8-98189 104-0 | HOSE; AIR,MAG VLV TO AIR PIPE | 1 | 2204- | ALL | |||
| 078 | I8-98136 613-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NQR81 | (D) | ||
| 118 | I8-98069 541-A | BRACKET; VSV | 1 | 2204- | NPS81 | |||
| 234 | I8-98008 098-0 | CLAMP; PIPE | 3 | 2204- | NPS81 | ID=16 | ||
| 078 | I8-98189 106-0 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NQR81 | (G) | ||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 2204- | ALL | ID=16 | ||
| 235 | I8-97214 235-0 | RUBBER; SUPPORT,PIPE | 1 | 2204- | ALL | OD=16.5 L=50 | ||
| 039 | I8-98030 682-0 | CLIP; HOSE,VAC | 2 | 2204- | ALL | (C) ID=16 | ||
| 157 | I8-98125 849-1 | HOSE; JOINT | 1 | 2204- | NPS81 | (A) | ||
| 039 | I8-98173 762-1 | CLIP; HOSE,VAC | 4 | 2204- | NQR81 | (D) ID=11-17 | ||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 2204- | ALL | ID=16 | ||
| 157 | I8-98022 868-3 | HOSE; JOINT | 1 | 2204- | NPS81 | (C) | ||
| 116 | I0-08158 300-0 | HOSE; VAC,M/VAC | 1 | 2204- | NPS81 | (C) L=140 | ||
| 078 | I8-98080 833-1 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NPS81 | (A) | ||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 2204- | ALL | ID=16 | ||
| 108 | I9-09956 353-A | GROMMET; PIPE | 1 | 2204- | ALL | (A) | ||
| 081 | I8-98161 630-0 | PIPE; VAC,VSV | 1 | 2204- | NPS81 | L=555 | ||
| 158 | I8-97061 603-0 | CLIP; HOSE | 1 | 2204- | ALL | (B) ID=14-20 | ||
| 013 | I8-98048 075-0 | JOINT; HOSE,VAC | 1 | 2204- | NPS81 | (A) | ||
| 013 | I8-98035 106-0 | JOINT; HOSE,VAC | 1 | 2204- | NPS81 | (B) | ||
| 098 | I0-28650 825-0 | BOLT; VAC PIPE FIX | 2 | 2204- | ALL | (B) M8X25 FLANGE | ||
| 078 | I8-98080 833-1 | HOSE; VAC,PIPE TO PIPE | 1 | 2204- | NPS81 | (A) | ||
| 039 | I8-98008 098-0 | CLIP; HOSE,VAC | 2 | 2204- | NPS81 | (B) ID=16 | ||
| 066 | I8-98008 098-0 | CLIP; VAC HOSE,M/VAC | 2 | 2204- | ALL | ID=16 | ||
| 236 | I0-28050 612-0 | BOLT; PIPE | 1 | 2204- | ALL | M6X12 FLANGE | ||
| 116 | I0-08258 300-0 | HOSE; VAC,M/VAC | 1 | 2204- | NPS81 | (D) L=280 | ||
| 044 | I8-98070 194-0 | PIPE; VAC,MAG VLV | 1 | 2204- | NPS81 | (A) | ||
| 157 | I8-97389 671-3 | HOSE; JOINT | 1 | 2204- | NPS81 | (B) | ||
| 159 | I8-97492 140-0 | HOSE ASM; VAC | 1 | 2204- | NPS81 | (C) | ||
| 020 | I0-91180 106-0 | NUT; BRKT | 1 | 2204- | ALL | M6 FLANGE | ||
| 096 | I8-98220 579-0 | PIPE; VAC,M/VAC TO VAC PUMP | 1 | 2204- | NPS81 | |||
| 080 | I8-98097 788-0 | PIPE; VAC,ENG SIDE | 1 | 2204- | NQR81 | (B) |
