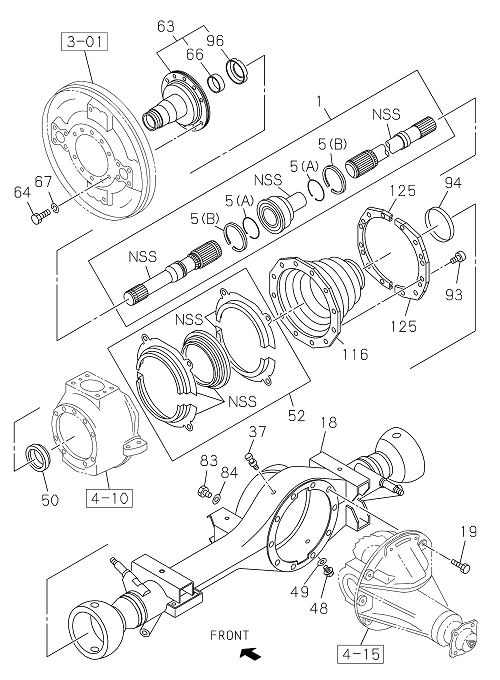

| 001 |
I8-97043 026-0 |
|
SHAFT ASM; FRT DRIVE |
1 |
2204- |
|
NPS81 |
|
| 093 |
I8-94477 783-0 |
|
SCREW; TUBE END BOOT HOLDER, FRT AXLE |
24 |
2204- |
|
NPS81 |
M6X12 |
| 066 |
I8-97116 630-0 |
|
BUSHING; SPINDLE,FRT AXLE SHAFT |
2 |
2204- |
|
NPS81 |
|
| 018 |
I8-97073 899-1 |
|
CASE; FRT AXLE |
1 |
2204- |
|
NPS81 |
|
| 116 |
I8-94321 407-0 |
|
BOOT; TUBE END,FRT AXLE |
2 |
2204- |
|
NPS81 |
|
| 005 |
I8-97106 944-0 |
|
RING; RET,FRT DRIVE SHAFT |
4 |
2204- |
|
NPS81 |
(A) |
| 067 |
I0-91510 812-0 |
|
WASHER; LK,SPINDLE |
18 |
2204- |
|
ALL |
ID=12.2 |
| 019 |
I0-50561 040-0 |
|
BOLT; FRT AXLE |
10 |
2204- |
|
ALL |
M10X40 W/LK WASHER |
| 048 |
I8-97307 060-0 |
|
PLUG; DRAIN,AXLE CASE |
1 |
2204- |
|
ALL |
M16X12.5 |
| 083 |
I8-98009 333-0 |
|
PLUG; OIL FILLER |
1 |
2204- |
|
ALL |
M20X10.5 |
| 094 |
I8-94447 698-0 |
|
BAND; TUBE END BOOT,FRT AXLE |
2 |
2204- |
|
NPS81 |
|
| 064 |
I8-94440 908-0 |
|
BOLT; SPINDLE |
18 |
2204- |
|
NPS81 |
|
| 096 |
I8-94440 903-0 |
|
WASHER; THRUST,SPINDLE,FRT AXLE |
2 |
2204- |
|
NPS81 |
|
| 063 |
I8-94440 882-0 |
|
SPINDLE; KNUCKLE,FRT AXLE SHAFT |
2 |
2204- |
|
NPS81 |
|
| 084 |
I8-94462 734-0 |
|
GASKET; PLUG,OIL FILLER |
1 |
2204- |
|
ALL |
ID=20 OD=30 |
| 125 |
I8-98049 388-0 |
|
HOLDER; TUBE END BOOT,FRT AXLE |
4 |
2204- |
|
NPS81 |
|
| 001 |
I8-97043 027-0 |
|
SHAFT ASM; FRT DRIVE |
1 |
2204- |
|
NPS81 |
|
| 052 |
I8-97125 754-0 |
|
SEAL; OIL,KNUCKLE |
2 |
2204- |
|
NPS81 |
|
| 050 |
I8-94459 416-0 |
|
SEAL; OIL,SHAFT,FRT AXLE |
2 |
2204- |
|
NPS81 |
|
| 005 |
I8-97106 945-0 |
|
RING; RET,FRT DRIVE SHAFT |
4 |
2204- |
|
NPS81 |
(B) |
| 037 |
I8-98006 960-0 |
|
BREATHER; FRT AXLE CASE |
1 |
2204- |
|
ALL |
L=29 |
| 049 |
I9-09571 416-0 |
|
GASKET; DRAIN PLUG |
1 |
2204- |
|
ALL |
ID=16.2 OD=24 |
