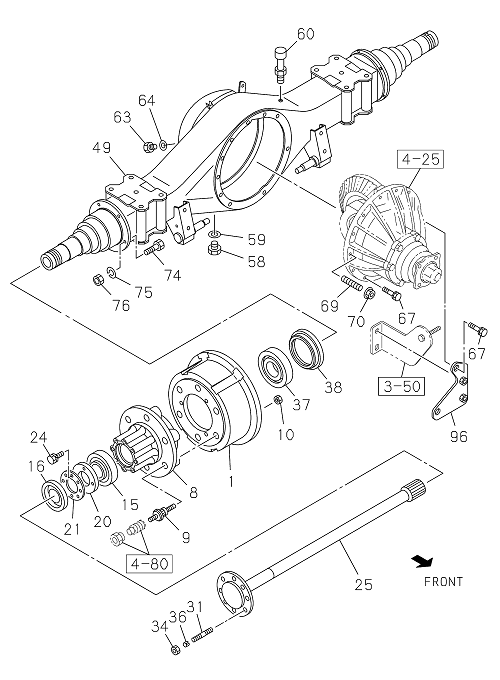

4-20 | REAR AXLE CASE AND SHAFT
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 075 | I0-91510 814-0 | WASHER; LK,RR BRK ASM SETTING | 12 | 2204- | ALL | ID=14.2 | ||
| 001 | I8-97081 219-A | DRUM; BRK,RR | 2 | 2204- | NPS81 | |||
| 038 | I6-97122 937-0 | SEAL; OIL,RR HUB,INNER | 2 | 2204- | NQR81 | (IADG) | ||
| 038 | I8-97122 937-0 | SEAL; OIL,RR HUB,INNER | 2 | 2204- | NQR81 | NOK | ||
| 025 | I8-97134 439-0 | SHAFT; AXLE,RR | 2 | 2204- | ALL | L=885 | ||
| 096 | I8-98049 286-0 | BRACKET; LSPV,AXLE CASE | 1 | 2204- | NPS81 | |||
| 060 | I8-98006 960-0 | BREATHER; RR AXLE CASE | 1 | 2204- | ALL | L=29 | ||
| 067 | I0-50561 050-0 | BOLT; FINAL DRIVE SETTING | 4 | 2204- | ALL | M10X50 W/LK WASHER | ||
| 008 | I8-97107 549-A | HUB; RR AXLE | 2 | 2204- | NQR81 | |||
| 037 | I8-97122 938-A | BEARING; HUB INNER,RR AXLE | 2 | 2204- | NQR81 | (IADG) | ||
| 008 | I8-97081 323-A | HUB; RR AXLE | 2 | 2204- | NPS81 | |||
| 069 | I8-97359 802-0 | STUD; AXLE CASE | 2 | 2204- | ALL | M10X40.5 L=52.5 | ||
| 037 | I9-00093 624-A | BEARING; HUB INNER,RR AXLE | 2 | 2204- | NPS81 | (IADG) | ||
| 020 | I8-97137 094-0 | NUT; BRG,RR HUB | 2 | 2204- | ALL | M55 | ||
| 037 | I8-97122 938-0 | BEARING; HUB INNER,RR AXLE | 2 | 2204- | NQR81 | |||
| 038 | I8-94367 958-0 | SEAL; OIL,RR HUB,INNER | 2 | 2204- | NPS81 | NOK | ||
| 059 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 2204- | ALL | ID=16.2 OD=24 | ||
| 070 | I7-05110 010-A | NUT; CARRIER | 2 | 2204- | ALL | M10 FLANGE | ||
| 049 | I8-97222 080-3 | CASE; RR AXLE | 1 | 2204- | NPS81 | |||
| 187 | I5-87411 892-1 | PIN; WHEEL SET,RR AXLE, LH | 1 | 2204- | ALL | |||
| 016 | I6-94336 317-2 | SEAL; OIL,RR HUB,OUTER | 2 | 2204- | ALL | (IADG) | ||
| 009 | I8-97081 584-4 | PIN; WHEEL,RR AXLE | 6 | 2204- | ALL | M20X28,M22X57 RH THREAD | ||
| 187 | I5-87411 891-1 | PIN; WHEEL SET,RR AXLE, RH | 1 | 2204- | ALL | |||
| 015 | I9-00093 609-A | BEARING; HUB OUTER,RR AXLE | 2 | 2204- | ALL | |||
| 016 | I8-98202 912-0 | SEAL; OIL,RR HUB,OUTER | 2 | 2204- | ALL | NOK | ||
| 001 | I8-97102 001-3 | DRUM; BRK,RR | 2 | 2204- | NQR81 | |||
| 064 | I8-94462 734-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 2204- | ALL | ID=20 OD=30 | ||
| 020 | I6-97137 094-0 | NUT; BRG,RR HUB | 2 | 2204- | ALL | (IADG) M55 | ||
| 076 | I0-91110 514-0 | NUT; RR BRK ASM SETTING | 12 | 2204- | ALL | M14 | ||
| 049 | I8-97222 079-4 | CASE; RR AXLE | 1 | 2204- | NQR81 | |||
| 063 | I8-98009 333-0 | PLUG; OIL FILLER,AXLE CASE | 1 | 2204- | ALL | M20X10.5 | ||
| 036 | I8-97360 004-0 | WASHER; SPECIAL,AXLE SHAFT | 16 | 2204- | ALL | ID=10.5 | ||
| 067 | I0-50561 040-0 | BOLT; FINAL DRIVE SETTING | 7 | 2204- | ALL | M10X40 W/LK WASHER | ||
| 075 | I0-91510 812-0 | WASHER; LK,RR BRK ASM SETTING | 12 | 2204- | ALL | ID=12.2 | ||
| 038 | I6-94336 316-1 | SEAL; OIL,RR HUB,INNER | 2 | 2204- | NPS81 | (IADG) | ||
| 031 | I8-97359 803-0 | STUD; AXLE SHAFT TO HUB | 16 | 2204- | ALL | M10X30 L=49 | ||
| 076 | I0-91110 512-0 | NUT; RR BRK ASM SETTING | 12 | 2204- | NPS81 | M12 | ||
| 034 | I7-05110 010-A | NUT; AXLE SHAFT | 16 | 2204- | ALL | M10 FLANGE | ||
| 021 | I9-09653 002-1 | WASHER; LK,BRG NUT | 2 | 2204- | ALL | ID=55 | ||
| 038 | I8-94336 316-1 | SEAL; OIL,RR HUB,INNER | 2 | 2204- | NPS81 | TKK | ||
| 010 | I0-91110 522-0 | NUT; WHEEL PIN,RR AXLE | 12 | 2204- | ALL | M22 | ||
| 074 | I8-97359 819-0 | BOLT; RR BRK ASM SETTING | 12 | 2204- | NPS81 | M12X32 | ||
| 074 | I8-98007 879-0 | BOLT; RR BRK ASM SETTING | 12 | 2204- | NQR81 | M14X40 | ||
| 024 | I0-28050 612-0 | BOLT; LK WASHER | 4 | 2204- | ALL | M6X12 FLANGE | ||
| 037 | I9-00093 624-0 | BEARING; HUB INNER,RR AXLE | 2 | 2204- | NPS81 | |||
| 009 | I8-97081 585-4 | PIN; WHEEL,RR AXLE | 6 | 2204- | ALL | M20X28 LH THREAD,M22X57 RH THREAD | ||
| 058 | I8-97307 060-0 | PLUG; DRAIN,AXLE CASE | 1 | 2204- | ALL | M16X12.5 |
