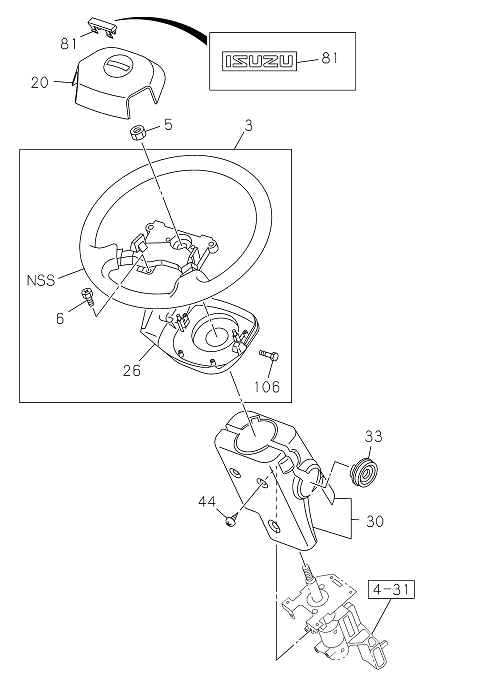

4-30 | STEERING WHEEL AND COWL
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I8-97412 556-1 | WHEEL; STRG | 1 | 2204- | ALL | DARK GRAY | ||
| 033 | I8-97409 495-0 | COVER; STRG COWL | 1 | 2204- | ALL | DARK GRAY | ||
| 081 | I8-97405 986-0 | EMBLEM; STRG WHEEL | 1 | 2204- | ALL | DARK GRAY | ||
| 006 | I8-97167 588-0 | SCREW; HORN SPR CONTACT | 4 | 2204- | ALL | M4X12 | ||
| 026 | I8-97409 275-2 | COVER; STRG WHEEL,LWR | 1 | 2204- | ALL | DARK GRAY | ||
| 005 | I0-91111 514-0 | NUT; STRG WHEEL TO SHAFT | 1 | 2204- | ALL | M14 | ||
| 106 | I8-98231 397-0 | BOLT; TORX | 2 | 2204- | ALL | M6X14 | ||
| 030 | I8-97925 101-0 | COWL; STEERING | 1 | 2204- | ALL | |||
| 044 | I0-38050 512-0 | SCREW; STRG COWL | 3 | 2204- | ALL | M5X12 | ||
| 020 | I8-97405 985-1 | SHROUD; PAD,STRG WHEEL | 1 | 2204- | ALL | DARK GRAY |
