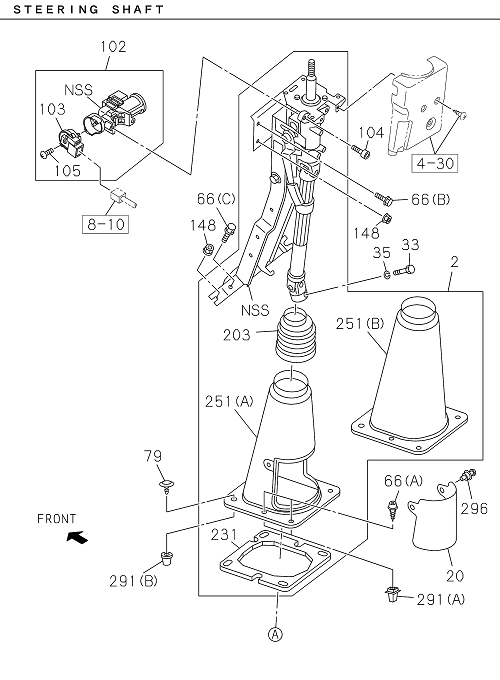

4-31 | STEERING COLUMN AND SHAFT
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 291 | I8-94463 268-A | GROMMET; STRG SHAFT COVER | 4 | 2204- | ALL | (A) H=15 | ||
| 296 | I8-97868 409-0 | CLIP; COVER | 1 | 2204- | NQR81 | BLACK | ||
| 001 | I8-97666 334-0 | STEERING UNIT | 1 | 2204- | ALL | |||
| 148 | I8-97329 625-0 | NUT; COLUMN TO BRKT | 3 | 2204- | ALL | M8 W/DISHED WASHER | ||
| 066 | I7-04508 025-A | BOLT; STRG COLUMN | 2 | 2204- | ALL | (B) M8X20 FLANGE | ||
| 104 | I8-97321 385-0 | BOLT; STRG LOCK TO COLUMN | 2 | 2204- | ALL | M8X20 TORQUE SHEAR BOLT | ||
| 033 | I8-97359 615-0 | BOLT; STRG SHAFT TO UNIT | 1 | 2204- | ALL | M8X30 | ||
| 251 | I8-97417 049-0 | COVER; LWR | 1 | 2204- | NQR81 | (A) BLACK | ||
| 348 | I1-09709 288-0 | CLIP; BRKT,STRG | 2 | 2204- | ALL | ID=5-12 L=22 | ||
| 231 | I8-98137 329-0 | SEAL; RUBBER,STRG COLUMN | 1 | 2204- | ALL | |||
| 066 | I8-98051 939-0 | BOLT; STRG COLUMN | 2 | 2204- | ALL | (C) M8X24.5 W/LK&PL WASHER | ||
| 096 | I8-97359 618-0 | NUT; STRG UNIT | 1 | 2204- | ALL | M12 FLANGE | ||
| 066 | I0-72180 518-0 | BOLT; STRG COLUMN | 4 | 2204- | ALL | (A) M5X18 TAPPING | ||
| 203 | I8-98137 331-0 | BOOT; STRG COLUMN LWR | 1 | 2204- | ALL | |||
| 079 | I8-97002 822-1 | CLIP; STRG COLUMN COVER | 2 | 2204- | ALL | L=19 BLACK | ||
| 002 | I8-97418 802-2 | SHAFT ASM; STRG | 1 | 2204- | NPS81 | BLACK | ||
| 020 | I8-97405 159-0 | COVER; STRG SHAFT | 1 | 2204- | NQR81 | BLACK | ||
| 002 | I8-97406 375-8 | SHAFT ASM; STRG | 1 | 2204- | NQR81 | BLACK | ||
| 095 | I8-98055 055-0 | BOLT; STRG UNIT | 4 | 2204- | ALL | M12X47 FLANGE | ||
| 035 | I0-91510 808-0 | WASHER; LK,STRG SHAFT | 1 | 2204- | ALL | ID=8.2 | ||
| 102 | I8-97556 660-0 | LOCK ASM; STRG | 1 | 2204- | ALL | |||
| 172 | I8-98081 033-0 | BRACKET; STRG | 1 | 2204- | ALL | (B) | ||
| 251 | I8-97418 804-0 | COVER; LWR | 1 | 2204- | NPS81 | (B) BLACK | ||
| 291 | I8-98029 442-1 | GROMMET; STRG SHAFT COVER | 2 | 2204- | ALL | (B) H=11.2 | ||
| 172 | I8-98055 256-1 | BRACKET; STRG | 1 | 2204- | ALL | (A) | ||
| 103 | I8-97556 731-0 | SWITCH; IGNITION | 1 | 2204- | ALL | |||
| 105 | I8-98045 346-0 | SCREW; IGN SW | 2 | 2204- | ALL |
