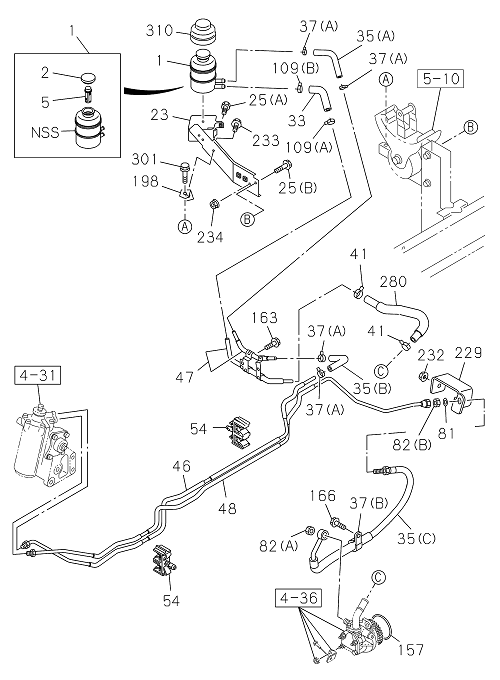

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 109 | I8-97359 141-0 | CLIP; RUBBER HOSE | 1 | 2204- | ALL | (B) ID=22 | ||
| 001 | I8-97107 987-0 | TANK ASM; OIL,P/S | 1 | 2204- | ALL | |||
| 048 | I8-98041 185-4 | PIPE; OIL,FLEX HOSE TO STRG UNIT | 1 | 2204- | ALL | |||
| 025 | I0-28450 620-0 | BOLT; OIL TANK BRKT | 1 | 2204- | ALL | (A) M6X20 FLANGE | ||
| 109 | I8-97359 141-0 | CLIP; RUBBER HOSE | 1 | 2204- | ALL | (B) ID=22 | ||
| 025 | I0-28450 620-0 | BOLT; OIL TANK BRKT | 1 | 2204- | ALL | (A) M6X20 FLANGE | ||
| 082 | I8-94370 339-0 | NUT; FLEX HOSE,P/S | 1 | 2204- | ALL | (B) M16 | ||
| 002 | I8-94146 153-2 | CAP; OIL TANK,P/S | 1 | 2204- | ALL | |||
| 166 | I0-28650 825-0 | BOLT; CLIP | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 229 | I8-98079 341-0 | BRACKET; HOSE,POWER STRG | 1 | 2204- | ALL | |||
| 035 | I8-98000 701-1 | HOSE; RETURN,P/S TANK | 1 | 2204- | ALL | (B) | ||
| 233 | I0-28650 825-0 | BOLT; PIPE CLIP,P/S | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 035 | I8-98000 701-1 | HOSE; RETURN,P/S TANK | 1 | 2204- | ALL | (B) | ||
| 109 | I8-98150 355-0 | CLIP; RUBBER HOSE | 1 | 2204- | ALL | (A) ID=21 | ||
| 025 | I0-28650 825-0 | BOLT; OIL TANK BRKT | 2 | 2204- | ALL | (B) M8X25 FLANGE | ||
| 033 | I8-97389 811-0 | HOSE; RUBBER,POWER STRG | 1 | 2204- | ALL | |||
| 033 | I8-97389 811-0 | HOSE; RUBBER,POWER STRG | 1 | 2204- | ALL | |||
| 041 | I8-98150 355-0 | CLIP; HOSE,P/S | 2 | 2204- | ALL | ID=21 | ||
| 109 | I8-98150 355-0 | CLIP; RUBBER HOSE | 1 | 2204- | ALL | (A) ID=21 | ||
| 037 | I1-09701 236-0 | CLIP; HOSE,P/S | 1 | 2204- | ALL | (B) ID=26 L=26 | ||
| 163 | I0-28650 825-0 | BOLT; OIL PIPE | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 166 | I0-28650 825-0 | BOLT; CLIP | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 035 | I8-97389 842-1 | HOSE; RETURN,P/S TANK | 1 | 2204- | ALL | (A) | ||
| 037 | I1-09701 236-0 | CLIP; HOSE,P/S | 1 | 2204- | ALL | (B) ID=26 L=26 | ||
| 037 | I8-98008 098-0 | CLIP; HOSE,P/S | 4 | 2204- | ALL | (A) ID=16 | ||
| 035 | I8-97389 842-1 | HOSE; RETURN,P/S TANK | 1 | 2204- | ALL | (A) | ||
| 280 | I8-98082 973-0 | HOSE; P/S OIL PUMP,INL | 1 | 2204- | NPS81 | |||
| 301 | I0-28650 825-0 | BOLT; STAY,OIL TANK | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 163 | I0-28650 825-0 | BOLT; OIL PIPE | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 041 | I8-98150 355-0 | CLIP; HOSE,P/S | 2 | 2204- | ALL | ID=21 | ||
| 082 | I8-94370 339-0 | NUT; FLEX HOSE,P/S | 1 | 2204- | ALL | (B) M16 | ||
| 232 | I0-91180 110-0 | NUT; BRKT | 1 | 2204- | ALL | M10 FLANGE | ||
| 023 | I8-98077 631-0 | BRACKET; OIL TANK,P/S | 1 | 2204- | ALL | |||
| 048 | I8-98041 185-4 | PIPE; OIL,FLEX HOSE TO STRG UNIT | 1 | 2204- | ALL | |||
| 234 | I7-05108 010-A | NUT; PIPE CLIP,P/S | 1 | 2204- | ALL | M8 FLANGE | ||
| 234 | I7-05108 010-A | NUT; PIPE CLIP,P/S | 1 | 2204- | ALL | M8 FLANGE | ||
| 082 | I8-97028 390-1 | NUT; FLEX HOSE,P/S | 1 | 2204- | ALL | (A) M12 SELF LOCK | ||
| 054 | I8-97018 546-0 | CLIP; OIL PIPE | 2 | 2204- | ALL | ID=10X2 H=37.5 | ||
| 280 | I8-98082 973-0 | HOSE; P/S OIL PUMP,INL | 1 | 2204- | NPS81 | |||
| 046 | I8-98041 184-3 | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 2204- | ALL | |||
| 280 | I8-98082 972-0 | HOSE; P/S OIL PUMP,INL | 1 | 2204- | NQR81 | |||
| 001 | I8-97107 987-0 | TANK ASM; OIL,P/S | 1 | 2204- | ALL | |||
| 082 | I8-97028 390-1 | NUT; FLEX HOSE,P/S | 1 | 2204- | ALL | (A) M12 SELF LOCK | ||
| 233 | I0-28650 825-0 | BOLT; PIPE CLIP,P/S | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 002 | I8-94146 153-2 | CAP; OIL TANK,P/S | 1 | 2204- | ALL | |||
| 081 | I0-91541 216-0 | WASHER; LK,FLEX HOSE | 1 | 2204- | ALL | ID=16.5 TOOTH LK INT | ||
| 005 | I8-97094 732-0 | STRAINER; OIL TANK,P/S | 1 | 2204- | ALL | |||
| 310 | I8-97103 394-0 | COVER; OIL TANK | 1 | 2204- | ALL | |||
| 035 | I8-97389 832-2 | HOSE; RETURN,P/S TANK | 1 | 2204- | ALL | (C) | ||
| 280 | I8-98082 972-0 | HOSE; P/S OIL PUMP,INL | 1 | 2204- | NQR81 | |||
| 198 | I8-97081 778-2 | STAY; OIL TANK,POWER STEERING | 1 | 2204- | ALL | |||
| 023 | I8-98077 631-0 | BRACKET; OIL TANK,P/S | 1 | 2204- | ALL | |||
| 198 | I8-97081 778-2 | STAY; OIL TANK,POWER STEERING | 1 | 2204- | ALL | |||
| 301 | I0-28650 825-0 | BOLT; STAY,OIL TANK | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 232 | I0-91180 110-0 | NUT; BRKT | 1 | 2204- | ALL | M10 FLANGE | ||
| 035 | I8-97389 832-2 | HOSE; RETURN,P/S TANK | 1 | 2204- | ALL | (C) | ||
| 037 | I8-98008 098-0 | CLIP; HOSE,P/S | 4 | 2204- | ALL | (A) ID=16 | ||
| 157 | I8-97101 875-2 | GASKET; P/S PUMP | 1 | 2204- | ALL | |||
| 310 | I8-97103 394-0 | COVER; OIL TANK | 1 | 2204- | ALL | |||
| 157 | I8-97101 875-2 | GASKET; P/S PUMP | 1 | 2204- | ALL | |||
| 005 | I8-97094 732-0 | STRAINER; OIL TANK,P/S | 1 | 2204- | ALL | |||
| 046 | I8-98041 184-3 | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 2204- | ALL | |||
| 025 | I0-28650 825-0 | BOLT; OIL TANK BRKT | 2 | 2204- | ALL | (B) M8X25 FLANGE | ||
| 047 | I8-98083 166-1 | PIPE; RETURN | 1 | 2204- | ALL | |||
| 229 | I8-98079 341-0 | BRACKET; HOSE,POWER STRG | 1 | 2204- | ALL | |||
| 054 | I8-97018 546-0 | CLIP; OIL PIPE | 2 | 2204- | ALL | ID=10X2 H=37.5 | ||
| 047 | I8-98083 166-0 | PIPE; RETURN | 1 | 2204- | ALL | |||
| 081 | I0-91541 216-0 | WASHER; LK,FLEX HOSE | 1 | 2204- | ALL | ID=16.5 TOOTH LK INT |
