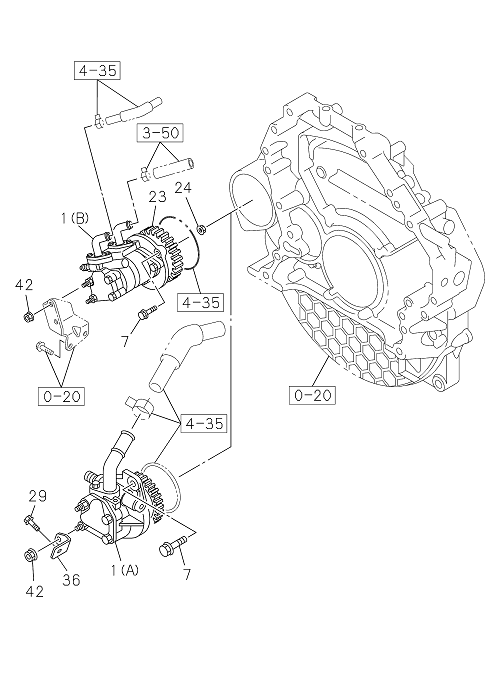

4-36 | POWER STEERING CONTROL; ENGINE SIDE
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 023 | I8-97114 550-1 | GEAR; OIL PUMP | 1 | 2204- | NQR81 | |||
| 001 | I8-98055 007-2 | PUMP ASM; OIL,P/S | 1 | 2204- | NQR81 | |||
| 001 | I8-98055 007-2 | PUMP ASM; OIL,P/S | 1 | 2204- | NQR81 | (B) | ||
| 007 | I0-28751 030-0 | BOLT; OIL PUMP,P/S | 2 | 2204- | ALL | M10X30 FLANGE | ||
| 001 | I8-98006 793-5 | PUMP ASM; OIL,P/S | 1 | 2204- | NPS81 | (A) | ||
| 024 | I0-91180 212-0 | NUT; GEAR,P/S PUMP | 1 | 2204- | NQR81 | M12 FLANGE | ||
| 036 | I8-98036 532-0 | BRACKET; PLATE,P/S PUMP | 1 | 2204- | NPS81 | |||
| 029 | I0-28851 420-0 | BOLT; BRKT,POWER STRG | 1 | 2204- | NPS81 | M14X20 FLANGE | ||
| 042 | I7-05108 010-A | NUT; ADJ PLATE | 1 | 2204- | ALL | M8 FLANGE | ||
| 001 | I8-98006 793-5 | PUMP ASM; OIL,P/S | 1 | 2204- | NPS81 |
