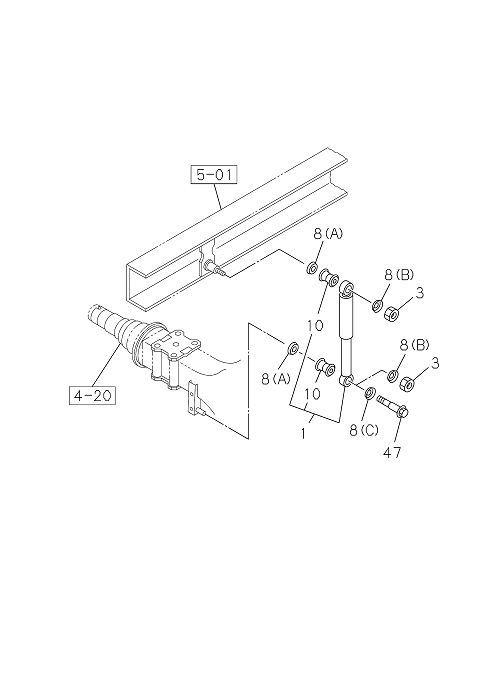

4-61 | SHOCK ABSORBER; REAR SUSPENSION
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I0-91110 514-0 | NUT; S/ABS | 2 | 2204- | ALL | M14 | ||
| 001 | I8-98380 745-0 | ABSORBER ASM; SHOCK,RR | 2 | 2204- | NPS81 | |||
| 047 | I0-28051 016-0 | PIN; S/ABS SETTING | 2 | 2204- | ALL | M10X16 FLANGE | ||
| 008 | I8-97360 056-0 | WASHER; S/ABS | 2 | 2204- | ALL | (B) ID=15 | ||
| 010 | I8-97120 139-0 | BUSHING; RUBBER,S/ABS | 4 | 2204- | ALL | KYB | ||
| 001 | I8-97253 662-2 | ABSORBER ASM; SHOCK,RR | 2 | 2204- | NQR81 | |||
| 008 | I8-97360 058-0 | WASHER; S/ABS | 2 | 2204- | ALL | (C) ID=10.5 | ||
| 008 | I8-97360 057-0 | WASHER; S/ABS | 4 | 2204- | ALL | (A) ID=20.0 | ||
| 001 | I8-97253 662-A | ABSORBER ASM; SHOCK,RR | 2 | 2204- | NQR81 | (IADG) |
