5-01 | FRAME AND OTHER PARTS
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

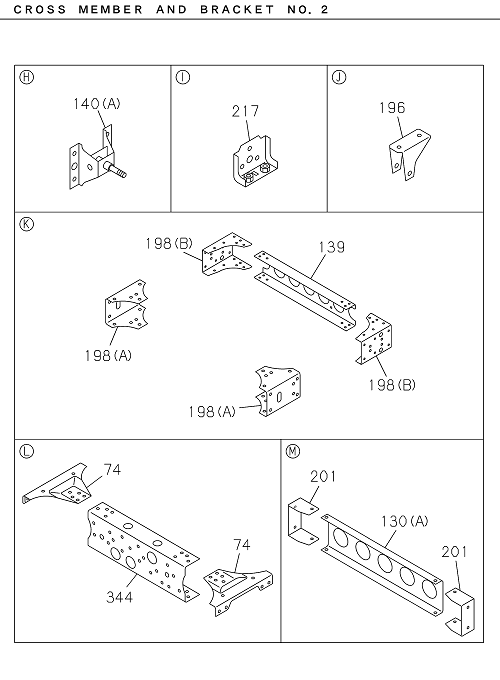

| 139 | I8-97107 384-0 | MEMBER; CROSS,6TH | 1 | 2204- | ALL | |||

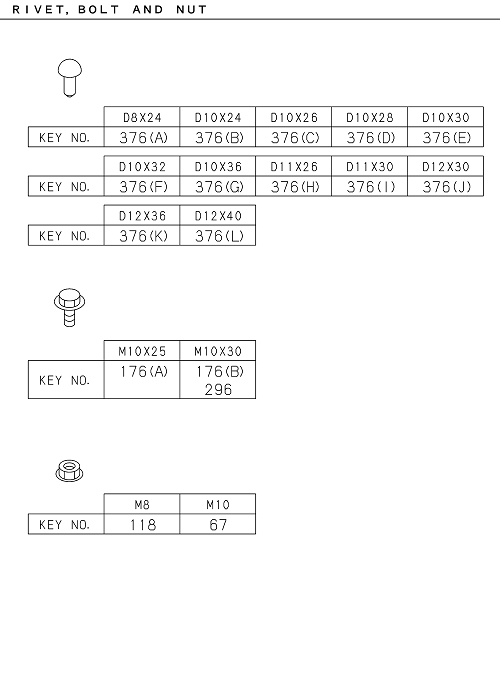

| 376 | I9-06751 028-0 | RIVET; FRAME | AR | 2204- | ALL | (D) D10X28 TAPER END | ||
| 376 | I9-06751 130-0 | RIVET; FRAME | AR | 2204- | ALL | (I) D11X30 TAPER END | ||
| 345 | I8-97175 993-3 | MEMBER; CROSS,5TH | 1 | 2204- | ALL | |||
| 376 | I9-06751 126-0 | RIVET; FRAME | AR | 2204- | ALL | (H) D11X26 TAPER END | ||

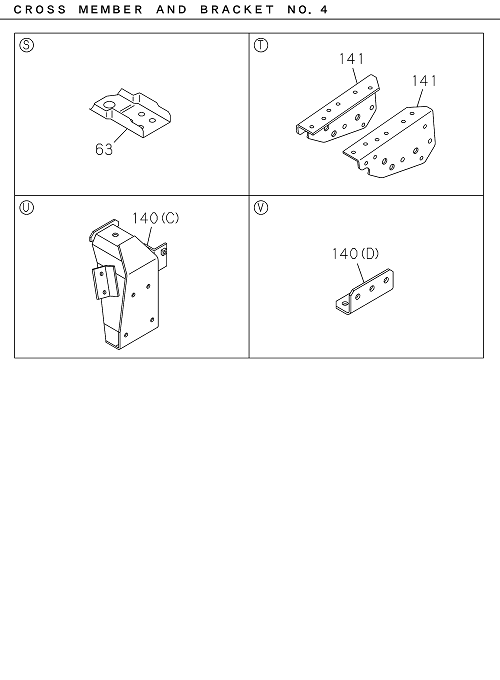

| 141 | I8-98064 355-2 | STIFFENER | 1 | 2204- | ALL | |||
| 446 | I8-97170 790-0 | STIFFENER; SPRING STOPPER | 2 | 2204- | NQR81 | (C) | ||
| 063 | I8-97115 668-0 | BRACKET; RAD MTG | 1 | 2204- | NPS81 | |||
| 123 | I8-97360 126-0 | NUT | 12 | 2204- | ALL | M12 | ||
| 376 | I9-06751 230-0 | RIVET; FRAME | AR | 2204- | ALL | (J) D12X30 TAPER END | ||
| 376 | I9-06751 030-0 | RIVET; FRAME | AR | 2204- | ALL | (E) D10X30 TAPER END | ||
| 296 | I0-28651 030-0 | BOLT; 3RD C/MBR | 15 | 2204- | ALL | M10X30 FLANGE | ||
| 031 | I6-97184 699-0 | BUSHING; FRT SPR,RR | 4 | 2204- | ALL | (IADG) OD=40 L=43.7 | ||
| 031 | I8-97184 699-1 | BUSHING; FRT SPR,RR | 4 | 2204- | ALL | OD=40 L=43.7 | ||
| 198 | I8-98092 778-1 | GUSSET; 6TH C/MBR | 1 | 2204- | NPS81 | (A) | ||
| 165 | I8-98000 886-0 | BRACKET; RAD STAY | 1 | 2204- | ALL | |||
| 024 | I8-98059 775-0 | BRACKET; FRT SPR,FRT | 2 | 2204- | NPS81 | (B) | ||
| 376 | I9-06751 236-0 | RIVET; FRAME | AR | 2204- | ALL | (K) D12X36 TAPER END | ||
| 376 | I9-06751 026-0 | RIVET; FRAME | AR | 2204- | ALL | (C) D10X26 TAPER END | ||
| 074 | I8-98000 584-0 | GUSSET; 4TH C/MBR | 2 | 2204- | ALL | RH UPPER,LH LOWER | ||
| 074 | I8-98000 583-0 | GUSSET; 4TH C/MBR | 2 | 2204- | ALL | RH LOWER,LH UPPER | ||
| 130 | I8-97205 394-0 | MEMBER; CROSS,END | 1 | 2204- | NQR81 | (B) | ||
| 105 | I8-98032 489-0 | BRACKET; RR SPR,RR | 1 | 2204- | ALL | |||
| 118 | I0-91370 008-0 | NUT; STOPPER | 2 | 2204- | NPS81 | M8 LOCK NUT | ||
| 376 | I9-06750 824-0 | RIVET; FRAME | AR | 2204- | ALL | (A) D8X24 TAPER END | ||
| 198 | I8-98092 777-1 | GUSSET; 6TH C/MBR | 1 | 2204- | NPS81 | (A) | ||

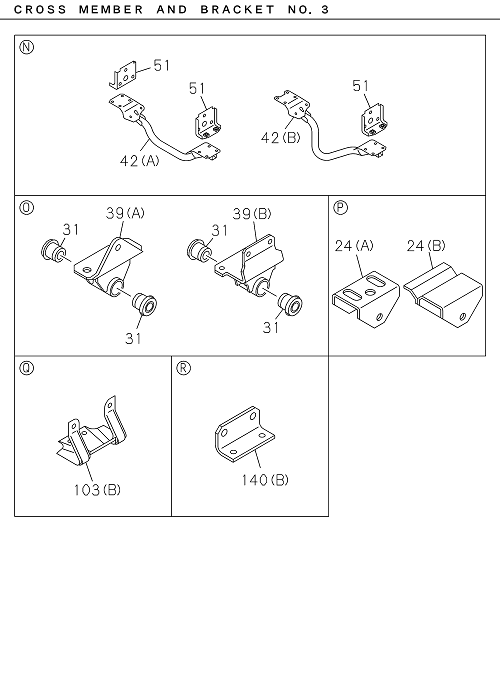

| 051 | I8-98034 961-0 | BRACKET; ENG SUPPORT,OUTER | 2 | 2204- | ALL | |||
| 141 | I8-98064 354-2 | STIFFENER | 1 | 2204- | ALL | |||
| 075 | I8-98000 584-0 | GUSSET; 5TH C/MBR | 2 | 2204- | ALL | RH LOWER,LH UPPER | ||
| 103 | I8-97079 659-1 | STOPPER; SUB SPR | 2 | 2204- | ALL | (B) | ||
| 176 | I0-28051 030-0 | BOLT; C/MBR,ENG MTG | 4 | 2204- | ALL | (B) M10X30 FLANGE | ||
| 196 | I8-98033 523-1 | BRACKET; STAB TO FRAME | 4 | 2204- | ALL | |||
| 325 | I8-97222 892-1 | EXTENSION; FRAME | 1 | 2204- | NQR81 | (B) | ||
| 042 | I8-98067 960-0 | MEMBER; CROSS,ENG MTG | 1 | 2204- | NPS81 | (B) | ||

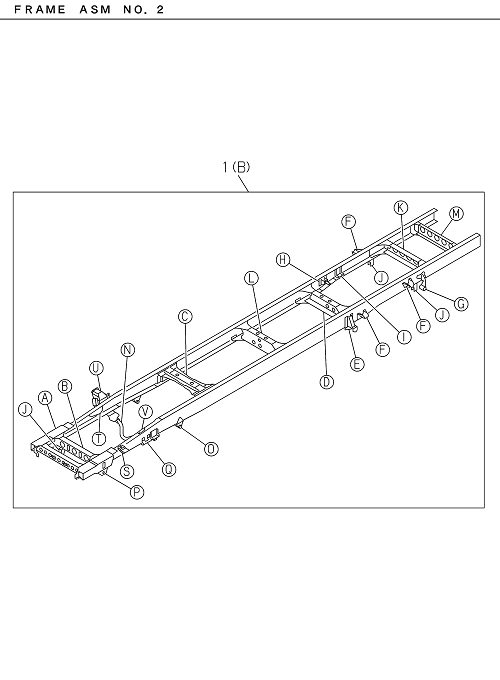

| 001 | I8-98369 672-0 | FRAME ASM | 1 | 2204- | NPS81 | (B) | ||
| 215 | I6-97184 699-0 | BUSHING; BRKT,RR SPRING | 4 | 2204- | ALL | (IADG) OD=40 L=43.7 | ||
| 201 | I8-97096 871-0 | GUSSET; C/MBR | 2 | 2204- | ALL | |||

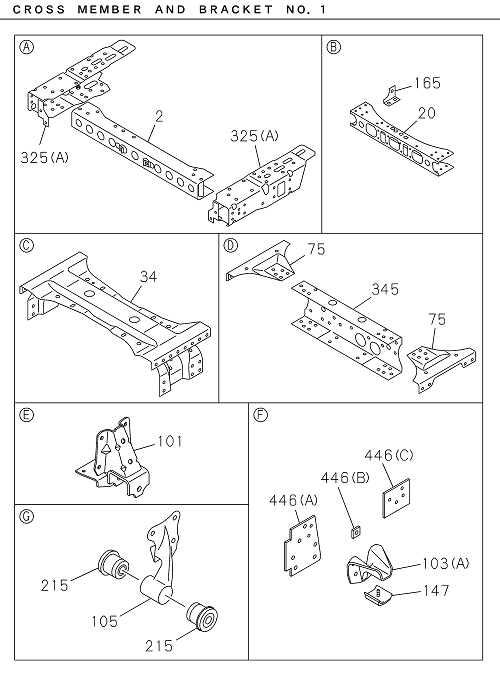

| 002 | I8-97387 866-5 | MEMBER; CROSS,1ST | 1 | 2204- | ALL | |||
| 140 | I8-97302 511-0 | BRACKET; S/ABS,RR | 2 | 2204- | NQR81 | (B) | ||
| 325 | I8-97222 891-1 | EXTENSION; FRAME | 1 | 2204- | NQR81 | (B) | ||
| 039 | I8-98070 113-0 | BRACKET; FRT SPR,RR | 1 | 2204- | NPS81 | (B) | ||
| 024 | I8-98015 274-0 | BRACKET; FRT SPR,FRT | 2 | 2204- | NQR81 | (A) | ||
| 103 | I8-97223 749-0 | STOPPER; SUB SPR | 4 | 2204- | NPS81 | (A) | ||
| 446 | I8-98014 080-1 | STIFFENER; SPRING STOPPER | 2 | 2204- | NQR81 | (A) | ||
| 039 | I8-98070 114-0 | BRACKET; FRT SPR,RR | 1 | 2204- | NPS81 | (B) | ||
| 020 | I8-98014 074-7 | MEMBER; CROSS,2ND | 1 | 2204- | ALL | |||
| 140 | I8-98114 079-0 | BRACKET; S/ABS,RR | 1 | 2204- | NPS81 | (D) | ||
| 101 | I8-98243 605-0 | BRACKET; RR SPR,FRT | 2 | 2204- | ALL | |||
| 131 | I0-28661 025-0 | BOLT; END C/MBR | 8 | 2204- | ALL | M10X25 FLANGE | ||
| 215 | I8-97184 699-1 | BUSHING; BRKT,RR SPRING | 4 | 2204- | ALL | OD=40 L=43.7 | ||
| 376 | I9-06751 032-0 | RIVET; FRAME | AR | 2204- | ALL | (F) D10X32 TAPER END | ||
| 132 | I0-91180 110-0 | NUT; END C/MBR | 8 | 2204- | ALL | M10 FLANGE | ||
| 344 | I8-97175 993-3 | MEMBER; CROSS,4TH | 1 | 2204- | ALL | |||
| 067 | I7-05110 010-A | NUT; C/MBR | 17 | 2204- | ALL | M10 FLANGE | ||
| 376 | I9-06751 240-0 | RIVET; FRAME | AR | 2204- | ALL | (L) D12X40 TAPER END | ||
| 075 | I8-98000 583-0 | GUSSET; 5TH C/MBR | 2 | 2204- | ALL | RH UPPER,LH LOWER | ||
| 414 | I0-28661 230-0 | BOLT | 12 | 2204- | NQR81 | M12X30 FLANGE | ||
| 325 | I8-98073 344-1 | EXTENSION; FRAME | 1 | 2204- | ALL | (A) | ||
| 176 | I0-28651 030-0 | BOLT; C/MBR,ENG MTG | 2 | 2204- | ALL | (B) M10X30 FLANGE | ||
| 042 | I8-98032 389-0 | MEMBER; CROSS,ENG MTG | 1 | 2204- | NQR81 | (A) | ||
| 140 | I8-97080 884-1 | BRACKET; S/ABS,RR | 2 | 2204- | ALL | (A) | ||
| 198 | I8-98014 079-1 | GUSSET; 6TH C/MBR | 2 | 2204- | NQR81 | (B) | ||
| 176 | I0-28651 025-0 | BOLT; C/MBR,ENG MTG | 4 | 2204- | ALL | (A) M10X25 FLANGE | ||
| 176 | I0-28651 025-0 | BOLT; C/MBR,ENG MTG | 2 | 2204- | ALL | (A) M10X25 FLANGE | ||
| 034 | I8-98286 424-0 | MEMBER; CROSS,3RD | 1 | 2204- | ALL | |||
| 147 | I8-98335 039-0 | RUBBER; SUB SPRING | 4 | 2204- | NPS81 | |||
| 130 | I8-97080 872-0 | MEMBER; CROSS,END | 1 | 2204- | NPS81 | (A) | ||
| 217 | I8-97202 417-0 | BRACKET; HELPER RUBBER,RR SPRING | 2 | 2204- | ALL | |||
| 105 | I8-98032 488-0 | BRACKET; RR SPR,RR | 1 | 2204- | ALL | |||

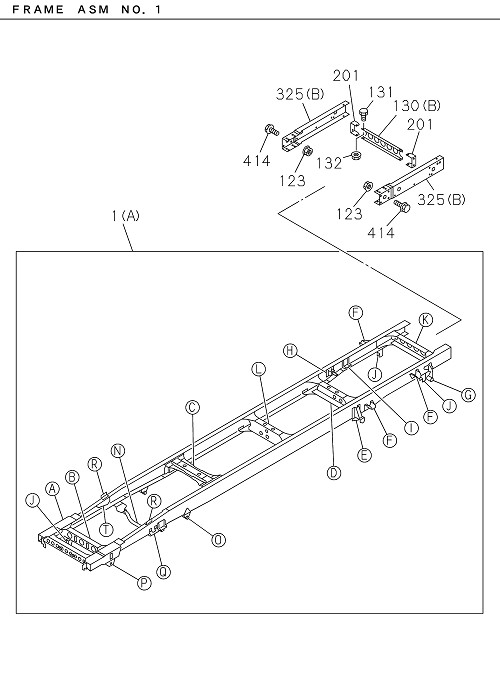

| 001 | I8-98369 674-0 | FRAME ASM | 1 | 2204- | NQR81 | (A) | ||
| 376 | I9-06751 024-0 | RIVET; FRAME | AR | 2204- | ALL | (B) D10X24 TAPER END | ||
| 039 | I8-98014 125-0 | BRACKET; FRT SPR,RR | 2 | 2204- | NQR81 | (A) | ||
| 140 | I8-98114 082-0 | BRACKET; S/ABS,RR | 1 | 2204- | NPS81 | (C) | ||
| 325 | I8-98073 345-0 | EXTENSION; FRAME | 1 | 2204- | ALL | (A) | ||
| 446 | I8-97122 173-0 | STIFFENER; SPRING STOPPER | 2 | 2204- | NPS81 | (B) | ||
| 376 | I9-06751 036-0 | RIVET; FRAME | AR | 2204- | ALL | (G) D10X36 TAPER END |
