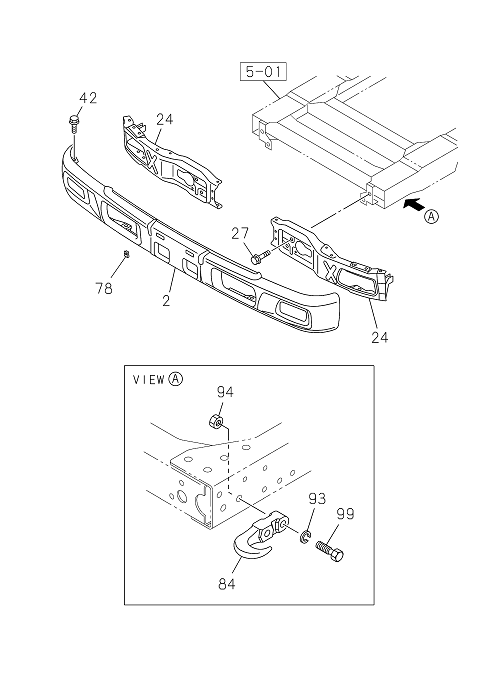

6-01 | FRONT BUMPER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 042 | I8-98298 347-0 | BOLT; BUMPER | 10 | 2204- | ALL | M6X16 W/LK&PL WASHER | ||
| 084 | I8-94249 270-A | HOOK | 1 | 2204- | ALL | |||
| 027 | I8-98092 250-0 | BOLT; BUMPER TO BACK BAR | 4 | 2204- | ALL | M10X30 HEXALOBULAR | ||
| 024 | I8-98025 184-5 | BAR; FRT BUMPER | 1 | 2204- | ALL | |||
| 099 | I8-97301 262-0 | BOLT; HOOK | 2 | 2204- | ALL | M14X55 | ||
| 093 | I0-91510 814-0 | WASHER; LK,HOOK | 2 | 2204- | ALL | ID=14.2 | ||
| 078 | I8-98029 416-0 | NUT; SPIRE | 2 | 2204- | ALL | M6 | ||
| 024 | I8-98025 185-5 | BAR; FRT BUMPER | 1 | 2204- | ALL | |||
| 002 | I8-97405 627-5 | BUMPER; FRT,CENTER | 1 | 2204- | NPS81 | |||
| 094 | I0-91110 514-0 | NUT; HOOK | 1 | 2204- | ALL | M14 | ||
| 002 | I8-97405 628-5 | BUMPER; FRT,CENTER | 1 | 2204- | NQR81 |
