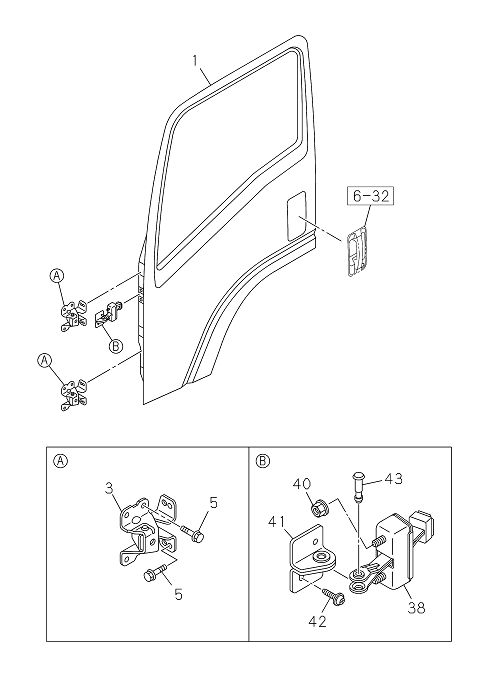

6-30 | FRONT DOOR AND HINGE
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I8-98049 756-0 | BOLT; HINGE | 8 | 2204- | ALL | M8X20 FLANGE | ||
| 042 | I8-98032 159-2 | BOLT; BRKT | 4 | 2204- | ALL | M6X20 W/PL WASHER | ||
| 001 | I8-98260 603-1 | DOOR ASM; FRT,WO/TRIM | 1 | 2204- | ALL | |||
| 038 | I8-98330 950-0 | CHECKER ASM; DOOR | 2 | 2204- | ALL | |||
| 001 | I8-98260 604-0 | DOOR ASM; FRT,WO/TRIM | 1 | 2204- | ALL | |||
| 043 | I8-98037 152-2 | PIN | 2 | 2204- | ALL | |||
| 005 | I8-98049 756-0 | BOLT; HINGE | 12 | 2204- | ALL | M8X20 FLANGE | ||
| 003 | I8-98323 112-0 | HINGE; DOOR FRT | 4 | 2204- | ALL | |||
| 040 | I8-97329 625-0 | NUT; CHECKER | 4 | 2204- | ALL | M8 W/DISHED WASHER | ||
| 041 | I8-98029 290-4 | BRACKET; CHECKER | 2 | 2204- | ALL |
