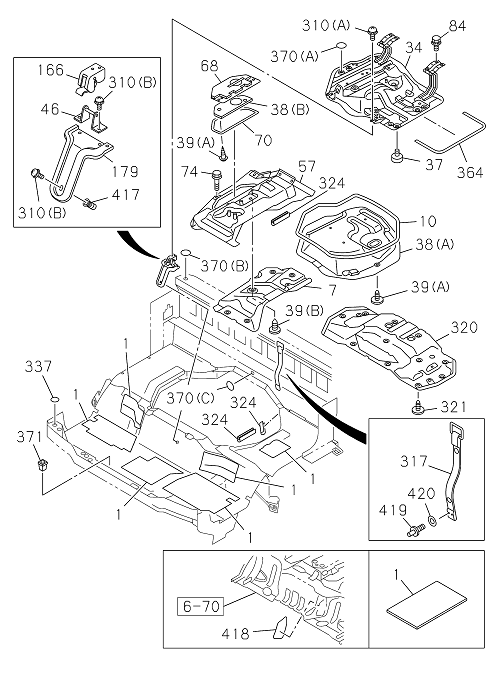

6-76 | FLOOR EQUIPMENT AND SEALING
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 068 | I8-98040 141-0 | COVER ASM; SUB,ENG COVER | 1 | 2204- | NQR81 | |||
| 038 | I8-98242 234-0 | INSULATOR; ENG COVER | 1 | 2204- | NQR81 | (B) | ||
| 057 | I8-97587 400-3 | COVER ASM; SUPPORT,CAB FLOOR | 1 | 2204- | NQR81 | |||
| 310 | I0-28650 616-0 | SCREW; ENG COVER HOOK | 4 | 2204- | ALL | (A) M6X16 FLANGE | ||
| 370 | I1-76798 029-0 | SEAL; LOCATION HOLE | 3 | 2204- | ALL | (B) OD=20 T=0.05 BLACK | ||
| 046 | I8-98040 145-0 | HOOK ASM; ENG COVER | 2 | 2204- | NQR81 | |||
| 320 | I8-97545 954-0 | INSULATOR; FLOOR,FRT | 1 | 2204- | NPS81 | |||
| 364 | I8-97892 744-0 | FINISHER; ENG COVER SIDE | 1 | 2204- | NQR81 | L=1100 | ||
| 037 | I5-74917 001-A | RUBBER; BUFFER,ENG COVER | 2 | 2204- | NQR81 | OD=30 T=10 | ||
| 070 | I8-97853 050-A | SEAL; ENG SUB COVER,CAB FLOOR | 1 | 2204- | NQR81 | |||
| 179 | I8-98048 301-1 | REINFORCEMENT; COVER | 1 | 2204- | NQR81 | |||
| 310 | I0-38050 616-0 | SCREW; ENG COVER HOOK | 5 | 2204- | ALL | (B) M6X16 HEXALOBULAR | ||
| 038 | I8-98242 226-0 | INSULATOR; ENG COVER | 1 | 2204- | NQR81 | (A) | ||
| 418 | I8-98090 192-2 | SEAL; PROTECTOR | 1 | 2204- | L | NQR81 | ||
| 034 | I8-97587 395-3 | COVER ASM; ENG,CAB FLOOR | 1 | 2204- | NQR81 | |||
| 371 | I8-94279 714-0 | GROMMET; LOCATION HOLE | 2 | 2204- | ALL | 14.5X14.5 BLACK | ||
| 420 | I0-91614 705-0 | WASHER; ENG COVER | 1 | 2204- | NQR81 | ID=5.3 OD=16 | ||
| 166 | I8-98040 152-0 | LOCK; ENG COVER | 2 | 2204- | NQR81 | |||
| 084 | I7-04508 025-A | BOLT; ENG COVER HINGE | 4 | 2204- | ALL | M8X20 FLANGE | ||
| 010 | I8-98029 377-A | SEAL; ENG COVER | 1 | 2204- | NQR81 | |||
| 321 | I8-97808 623-0 | CLIP; INSULATOR,FLOOR | 15 | 2204- | ALL | ID=6.2 L=11.4 | ||
| 074 | I7-04508 025-A | BOLT; SUPPORT COVER TO FLOOR | 10 | 2204- | ALL | M8X20 FLANGE | ||
| 418 | I8-98090 191-2 | SEAL; PROTECTOR | 1 | 2204- | R | NQR81 | ||
| 337 | I8-98031 126-0 | SEAL; CLIP HOLE | 1 | 2204- | ALL | OD=32 BLACK | ||
| 039 | I8-97808 623-0 | CLIP; INSULATOR,COVER | 5 | 2204- | ALL | (A) ID=6.2 L=11.4 | ||
| 370 | I1-76798 029-0 | SEAL; LOCATION HOLE | 1 | 2204- | ALL | (C) OD=25 BLACK | ||
| 417 | I8-98013 752-0 | NUT; POP | 1 | 2204- | NQR81 | M6 POP NUT | ||
| 007 | I8-98377 192-0 | INSULATOR; SUPPORT COVER | 1 | 2204- | NQR81 | |||
| 039 | I8-94279 997-0 | CLIP; INSULATOR,COVER | 7 | 2204- | NQR81 | (B) OD=30 | ||
| 317 | I8-97585 575-0 | BAND; ENGINE COVER | 1 | 2204- | NQR81 | |||
| 419 | I8-98065 262-0 | RIVET; ENG COVER | 1 | 2204- | NQR81 | |||
| 324 | I8-97892 742-0 | FINISHER; FLOOR PANEL | 3 | 2204- | NQR81 | L=140 | ||
| 370 | I8-98031 126-0 | SEAL; LOCATION HOLE | 3 | 2204- | ALL | (A) OD=32 BLACK | ||
| 001 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 2204- | ALL | NON ASBESTOS 1000X600 T=1.5 PARTS ONLY |
