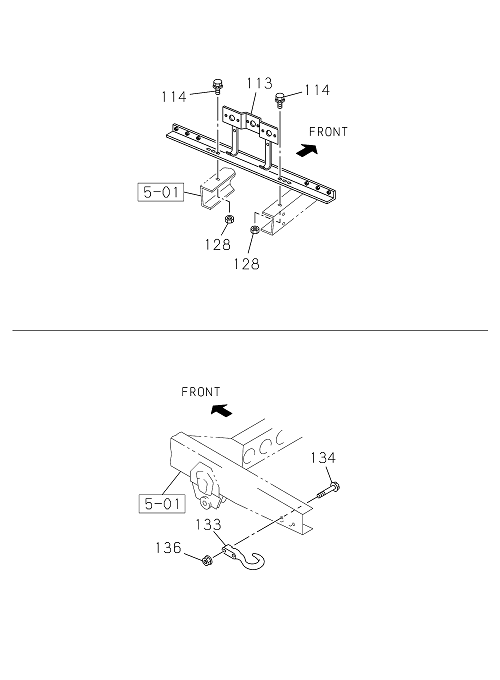

6-90 | REAR BUMPER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 128 | I7-05108 010-A | NUT; CROSS PLATE | 2 | 2204- | ALL | M8 FLANGE | ||
| 133 | I8-94249 270-A | HOOK | 1 | 2204- | ALL | |||
| 113 | I7-41900 208-A | BRACKET; LICENSE PLATE | 1 | 2204- | ALL | |||
| 114 | I0-28650 840-0 | BOLT; BRKT,LICENSE PLATE | 2 | 2204- | ALL | M8X40 FLANGE | ||
| 134 | I0-10861 460-0 | BOLT; HOOK | 2 | 2204- | ALL | M14X60 | ||
| 136 | I0-91180 214-0 | NUT; HOOK | 2 | 2204- | ALL | M14 FLANGE |
