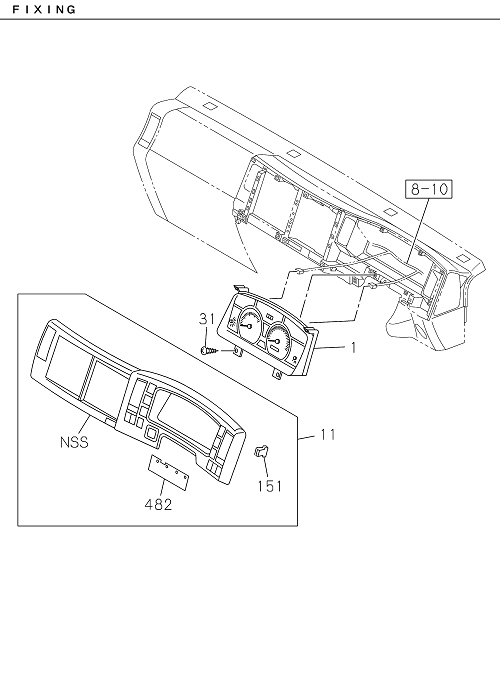

8-21 | METER ASM
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 151 | I8-98021 271-0 | CLIP; METER CLUSTER | 13 | 2204- | ALL | |||
| 081 | I8-97559 494-0 | METER SUB ASM | 1 | 2204- | ALL | |||
| 110 | I8-98354 509-0 | GLASS; CLUSTER METER | 1 | 2204- | ALL | |||
| 002 | I8-98054 638-0 | PANEL; CLUSTER | 1 | 2204- | ALL | |||
| 001 | I8-97559 464-0 | METER COMPL; CLUSTER | 1 | 2204- | ALL | |||
| 031 | I0-72180 516-0 | SCREW; METER,INST PANEL | 4 | 2204- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 011 | I8-97405 350-7 | CLUSTER ASM; METER | 1 | 2204- | ALL | DARK GRAY | ||
| 480 | I8-98354 510-0 | COVER; METER | 1 | 2204- | ALL | |||
| 482 | I8-98116 842-0 | SEAL; CLUSTER METER | 1 | 2204- | ALL |
