8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

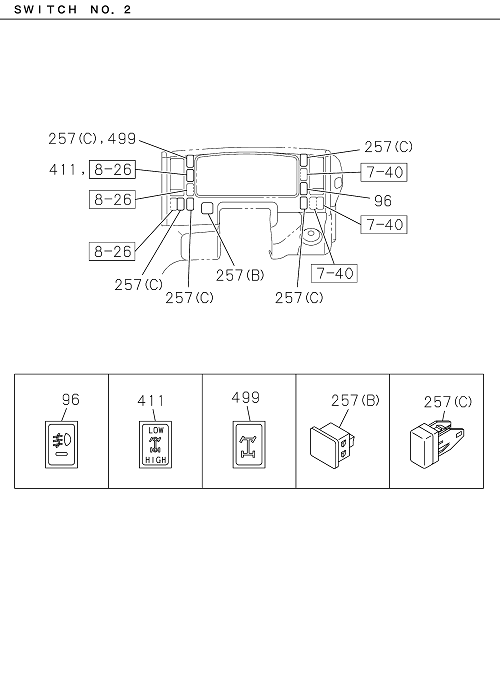

| 096 | I8-97387 031-4 | SWITCH; FOG LAMP | 1 | 2204- | ALL | |||

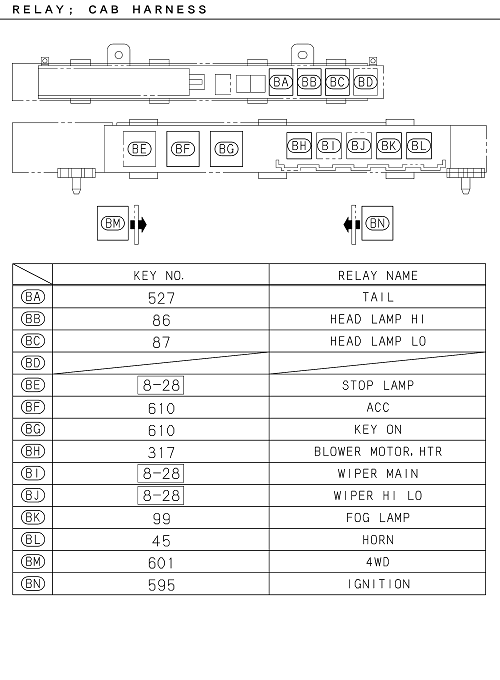

| 595 | I8-97173 035-1 | RELAY; IGNITION | 1 | 2204- | ALL | 24V 10A | ||
| 086 | I8-97173 035-1 | RELAY; HI-BEAM | 1 | 2204- | ALL | 24V 10A | ||
| 003 | I8-98061 743-0 | SCREW; COMB SW | 2 | 2204- | ALL | M5X20 W/PL WASHER&HEXALOBULAR | ||
| 087 | I6-97173 035-0 | RELAY; LOW-BEAM | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 099 | I6-97173 035-0 | RELAY; FOG LAMP | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 411 | I8-97613 967-1 | SWITCH; TRANSFER | 1 | 2204- | NPS81 | |||
| 317 | I6-97173 035-0 | RELAY; BLOWER MOTOR,HTR | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 527 | I8-97173 035-1 | RELAY; TAIL | 1 | 2204- | ALL | 24V 10A | ||
| 527 | I6-97173 035-0 | RELAY; TAIL | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 021 | I8-97358 248-0 | SWITCH; CLU | 1 | 2204- | ALL | (A) | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 2204- | ALL | (C) | ||

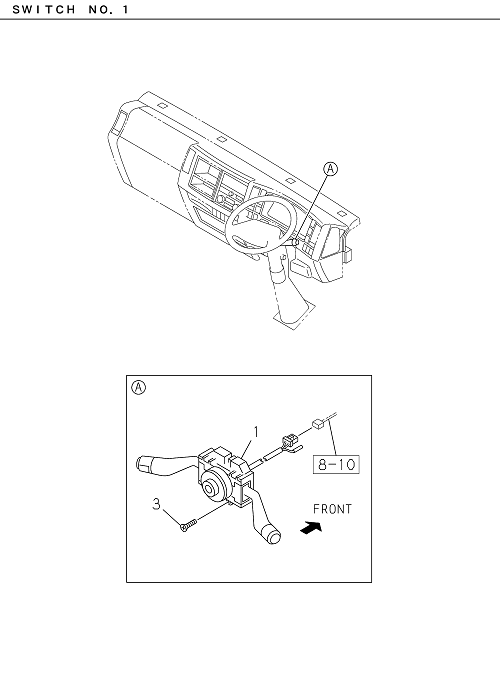

| 001 | I8-98243 728-0 | SWITCH; COMB | 1 | 2204- | ALL | |||
| 086 | I6-97173 035-0 | RELAY; HI-BEAM | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 257 | I8-98029 917-0 | COVER; HOLE,SW | 2 | 2204- | ALL | (A) | ||
| 249 | I8-97386 922-1 | SWITCH; HAZARD | 1 | 2204- | ALL | |||
| 087 | I8-97173 035-1 | RELAY; LOW-BEAM | 1 | 2204- | ALL | 24V 10A | ||
| 317 | I8-97173 035-1 | RELAY; BLOWER MOTOR,HTR | 1 | 2204- | ALL | 24V 10A | ||
| 021 | I8-97620 841-0 | SWITCH; CLU | 1 | 2204- | NPS81 | (B) | ||
| 595 | I6-97173 035-0 | RELAY; IGNITION | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 601 | I8-97173 035-1 | RELAY; 4WD | 1 | 2204- | ALL | 24V 10A | ||
| 499 | I8-97386 914-3 | SWITCH; 4X4 | 1 | 2204- | NPS81 | |||
| 045 | I8-97173 035-1 | RELAY; HORN | 1 | 2204- | ALL | 24V 10A | ||
| 610 | I8-97262 933-0 | RELAY; KEY ON | 2 | 2204- | ALL | 24V 12.5A | ||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 2204- | ALL | (B) | ||
| 099 | I8-97173 035-1 | RELAY; FOG LAMP | 1 | 2204- | ALL | 24V 10A | ||
| 045 | I6-97173 035-0 | RELAY; HORN | 1 | 2204- | ALL | (IADG) 24V 10A | ||
| 601 | I6-97173 035-0 | RELAY; 4WD | 1 | 2204- | ALL | (IADG) 24V 10A |
