8-90 | RADIO AND TV
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

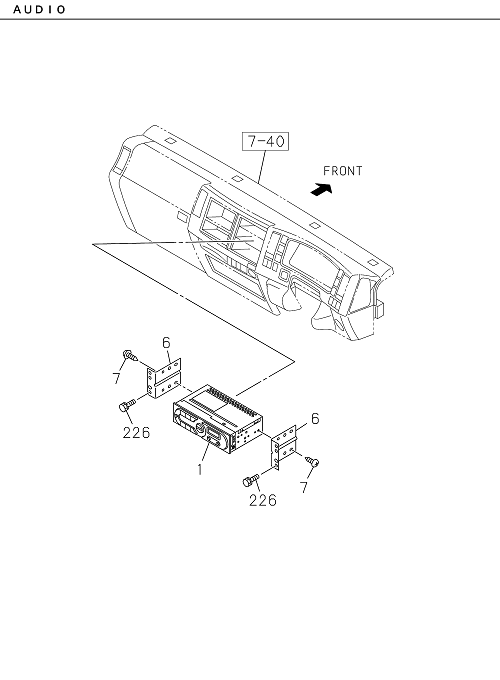

| 001 | I7-39020 220-A | RADIO | 1 | 2208- | ALL | W/ BLUETOOTH | ||
| 010 | I8-98061 742-0 | SCREW; ANTENNA CABLE | 2 | 2204- | ALL | M5X11 HEXALOBULAR | ||
| 226 | I0-72180 520-0 | BOLT; BRKT | 2 | 2204- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 101 | I1-73907 618-0 | CLIP; FEEDER TO BRKT | 1 | 2204- | ALL | ID=4.8 | ||

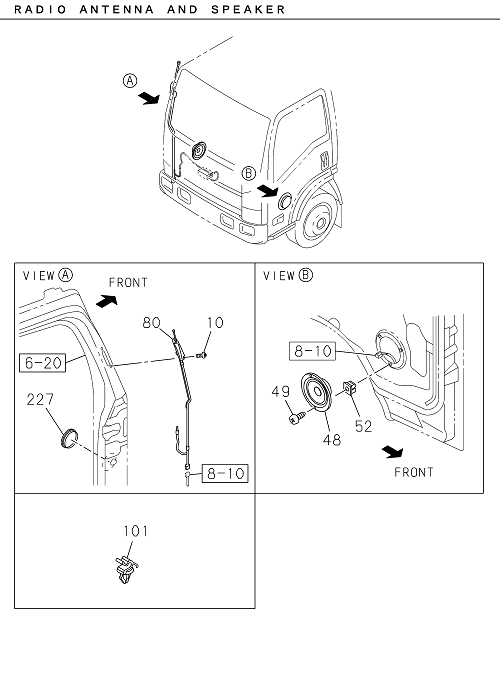

| 048 | I8-97696 027-A | SPEAKER; AUDIO | 2 | 2204- | ALL | |||
| 007 | I8-98063 767-0 | SCREW; RADIO | 4 | 2204- | ALL | M5X7 HEXALOBULAR SOCKET | ||
| 080 | I8-98225 066-0 | ANTENNA | 1 | 2204- | NQR81 | |||
| 001 | I8-98032 643-A | RADIO | 1 | 2204-2207 | ALL | |||
| 052 | I8-94279 078-A | GROMMET; SCREW,SPEAKER | 6 | 2204- | ALL | D=8.6X7.7 L=7.5 | ||
| 049 | I8-98061 856-0 | SCREW; SPEAKER | 6 | 2204- | ALL | M5X14 TAPPING HEXALOBULAR | ||
| 006 | I8-97585 617-0 | BRACKET; RADIO TO PANEL | 2 | 2204- | ALL | |||
| 080 | I8-97695 993-A | ANTENNA | 1 | 2204- | NPS81 | |||
| 227 | I8-98053 117-0 | PROTECTOR; EDGE | 1 | 2204- | ALL |
