9-01 | TOOLS
ELF
NPS81 NQR81 E4

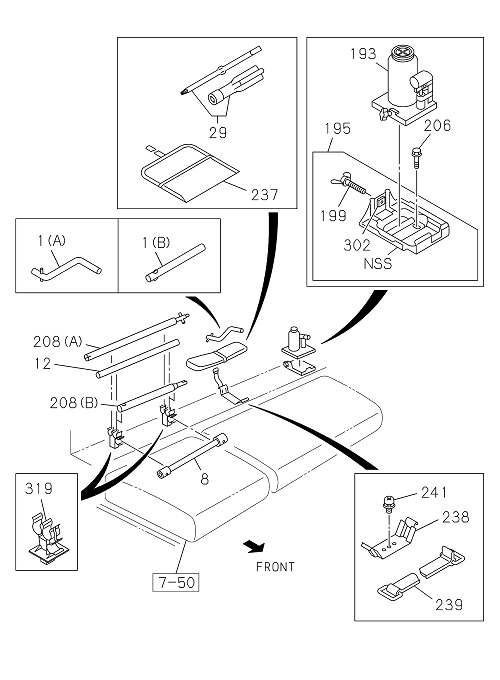

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 319 | I8-97853 077-2 | CLIP; TOOL BAR | 2 | 2204- | ALL | |||
| 208 | I7-99311 211-A | HANDLE; JACK | 1 | 2204- | NPS81 | (B) L=580 | ||
| 239 | I5-73997 026-A | BAND; TOOL BAG | 1 | 2204- | ALL | L=100 | ||
| 029 | I8-98399 562-0 | DRIVER; SCREW | 1 | 2204- | ALL | <+>,<-> L=160 | ||
| 208 | I7-99300 201-A | HANDLE; JACK | 1 | 2204- | NQR81 | (A) L=642 | ||
| 241 | I0-38050 616-0 | SCREW; TOOL BAG SUPPORT | 1 | 2204- | ALL | M6X16 HEXALOBULAR | ||
| 008 | I7-99315 317-A | WRENCH; WHEEL | 1 | 2204- | ALL | B=41X21 L=445 | ||
| 001 | I1-85515 007-A | HANDLE; SPARE TIRE CARRIER | 1 | 2204- | NPS81 | (B) L=280 | ||
| 193 | I7-99301 200-A | JACK ASM | 1 | 2204- | NQR81 | 5TON | ||
| 012 | I7-99400 200-A | HANDLE; WRENCH,WHEEL PIN | 1 | 2204- | NQR81 | OD=25 L=480 | ||
| 195 | I8-97589 376-2 | BRACKET; JACK | 1 | 2204- | ALL | |||
| 001 | I7-99310 210-A | HANDLE; SPARE TIRE CARRIER | 1 | 2204- | NQR81 | (A) | ||
| 302 | I8-98021 556-0 | NUT; JACK BRKT | 1 | 2204- | ALL | |||
| 193 | I8-97556 646-0 | JACK ASM | 1 | 2204- | NPS81 | 5TON | ||
| 237 | I8-97130 903-A | BAG; TOOL | 1 | 2204- | ALL | |||
| 206 | I0-28650 825-0 | SCREW; OIL JACK BRKT | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 238 | I8-97994 977-0 | SUPPORT; TOOL BAG | 1 | 2204- | ALL | |||
| 199 | I8-98005 536-0 | BOLT; JACK | 1 | 2204- | ALL | M8X30 WING |
