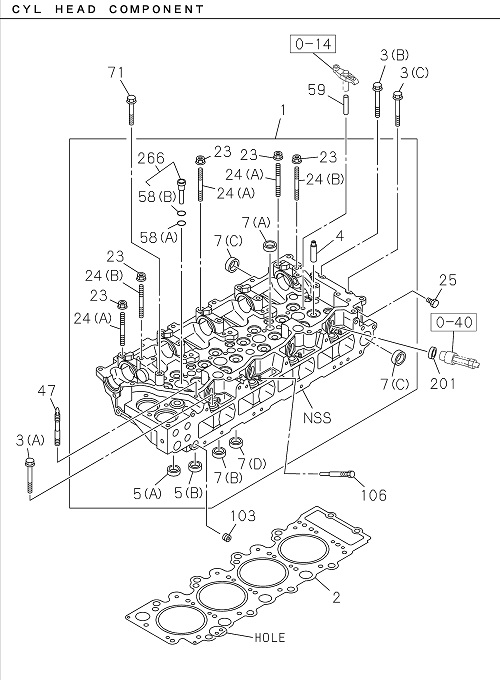

0-11 | CYLINDER HEAD
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 023 | I0-91180 208-0 | NUT CAM BRKT | 10 | 1907- | 4HL1‑TCS | M8 FLANGE | ||
| 024 | I8-94322 513-2 | STUD CM/SHF BRKT | 8 | 1907- | 4HL1‑TCS | (A) M8X41 L=66 | ||
| 004 | I8-97376 719-2 | GUIDE VLV | 16 | 1907- | 4HL1‑TCS | L=57 | ||
| 106 | I8-94392 236-0 | PLUG GLOW PLUG HOLE | 4 | 1907- | 4HL1‑TCS | |||
| 168 | I8-98270 245-0 | HANGER ENG,FRT | 1 | 1907- | 4HL1‑TCS | |||
| 059 | I8-97381 603-1 | GUIDE BRIDGE | 8 | 1907- | 4HL1‑TCS | |||
| 002 | I8-98288 502-0 | GASKET CYL HD | 1 | 1907- | 4HL1‑TCS | GRADE=B T=1.525 1-HOLE | ||
| 007 | I8-97096 821-0 | CUP SEALING,CYL HEAD | 5 | 1907- | 4HL1‑TCS | (C) OD=32 | ||
| 002 | I8-98288 503-0 | GASKET CYL HD | 1 | 1907- | 4HL1‑TCS | GRADE=C T=1.575 2-HOLE | ||
| 007 | I5-11129 006-0 | CUP SEALING,CYL HEAD | 5 | 1907- | 4HL1‑TCS | (B) OD=16 | ||
| 005 | I8-98028 874-0 | SEAT VLV INSERT | 8 | 1907- | 4HL1‑TCS | (A) INLET ID=32 OD=38 | ||
| 007 | I9-11129 128-0 | CUP SEALING,CYL HEAD | 7 | 1907- | 4HL1‑TCS | (D) OD=20 | ||
| 003 | I8-98260 005-0 | BOLT CYL HD TO BLOCK | 18 | 1907- | 4HL1‑TCS | (A) M14X115 FLANGE | ||
| 041 | I0-28161 230-0 | BOLT ENG HANGER | 3 | 1907- | 4HL1‑TCS | M12X30 FLANGE | ||
| 005 | I8-98028 875-0 | SEAT VLV INSERT | 8 | 1907- | 4HL1‑TCS | (B) EXHAUST ID=31 OD=38 | ||
| 003 | I8-94399 555-0 | BOLT CYL HD TO BLOCK | 1 | 1907- | 4HL1‑TCS | (C) M10X43 | ||
| 058 | I8-98004 187-0 | GASKET SLEEVE,NOZZLE HOLDER | 4 | 1907- | 4HL1‑TCS | (B) ID=26.2 | ||
| 002 | I8-98288 501-0 | GASKET CYL HD | 1 | 1907- | 4HL1‑TCS | GRADE=A T=1.475 NON-HOLE | ||
| 007 | I1-09600 016-0 | CUP SEALING,CYL HEAD | 4 | 1907- | 4HL1‑TCS | (A) OD=25 | ||
| 015 | I0-28751 020-0 | BOLT HANGER,FRT | 2 | 1907- | 4HL1‑TCS | M10X20 FLANGE | ||
| 014 | I8-94397 286-0 | STUD EXH MANIF | 2 | 1907- | 4HL1‑TCS | M10X60 L=75 | ||
| 249 | I8-94391 310-0 | GASKET CONNECTOR | 1 | 1907- | 4HL1‑TCS | |||
| 248 | I8-94390 858-1 | CONNECTOR | 1 | 1907- | 4HL1‑TCS | |||
| 266 | I8-98018 462-0 | SLEEVE ASM NOZZLE HOLDER | 4 | 1907- | 4HL1‑TCS | |||
| 058 | I8-97604 916-0 | GASKET SLEEVE,NOZZLE HOLDER | 4 | 1907- | 4HL1‑TCS | (A) ID=26.4 | ||
| 182 | I0-28050 845-0 | BOLT CASE | 4 | 1907- | 4HL1‑TCS | (B) M8X45 FLANGE | ||
| 122 | I8-97331 360-1 | GASKET COVER | 1 | 1907- | 4HL1‑TCS | |||
| 103 | I5-09605 005-0 | PLUG HD | 1 | 1907- | 4HL1‑TCS | PT3/8 T=12 | ||
| 047 | I0-49140 860-0 | STUD CYL HD | 2 | 1907- | 4HL1‑TCS | M8X60 L=72 | ||
| 071 | I0-28050 835-0 | BOLT CAM BRKT | 2 | 1907- | 4HL1‑TCS | M8X35 FLANGE | ||
| 025 | I8-98003 416-0 | PLUG CYL HD | 1 | 1907- | 4HL1‑TCS | M8X10 | ||

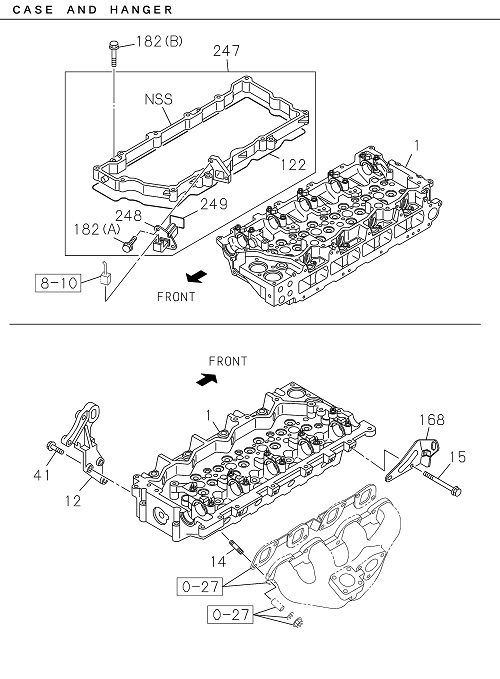

| 247 | I8-97331 362-1 | CASE CYL HEAD,C/H COVER | 1 | 1907- | 4HL1‑TCS | |||
| 024 | I8-94322 512-2 | STUD CM/SHF BRKT | 2 | 1907- | 4HL1‑TCS | (B) M8X54 L=79 | ||
| 001 | I8-98170 619-0 | HEAD ASM CYL | 1 | 1907- | 4HL1‑TCS | |||
| 182 | I0-28050 812-A | BOLT CASE | 2 | 1907- | 4HL1‑TCS | (A) M8X12 FLANGE | ||
| 003 | I8-94399 554-0 | BOLT CYL HD TO BLOCK | 1 | 1907- | 4HL1‑TCS | (B) M10X73 | ||
| 201 | I1-09639 034-0 | GASKET SLEEVE,INJ PUMP | 4 | 1907- | 4HL1‑TCS | OD=30 | ||
| 012 | I8-97310 498-2 | HANGER ENG,RR | 1 | 1907- | 4HL1‑TCS |
