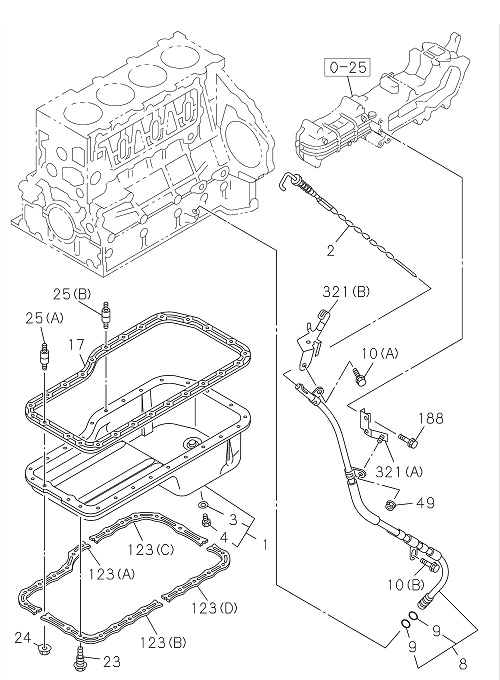

0-13 | OIL PAN AND LEVEL GAUGE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 123 | I8-97186 994-0 | RUBBER SEAL OIL | 1 | 1907- | 4HL1‑TCS | (B) | ||
| 002 | I8-98287 888-0 | GAUGE OIL LEVEL | 1 | 1907- | 4HL1‑TCS | |||
| 009 | I5-09623 002-0 | GASKET GUIDE TUBE,OIL LEVEL GAUGE | 2 | 1907- | 4HL1‑TCS | ID=11 | ||
| 123 | I8-97186 988-0 | RUBBER SEAL OIL | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 001 | I8-97385 244-1 | PAN ASM OIL | 1 | 1907- | 4HL1‑TCS | NPS | ||
| 188 | I0-28050 820-0 | BOLT BRKT,TUBE | 1 | 1907- | 4HL1‑TCS | M8X20 FLANGE | ||
| 024 | I0-91180 108-0 | NUT OIL PAN | 13 | 1907- | 4HL1‑TCS | M8 FLANGE | ||
| 321 | I8-98287 889-0 | BRACKET GUIDE TUBE | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 008 | I8-98221 362-4 | TUBE GUIDE,OIL LEVEL GAUGE | 1 | 1907- | 4HL1‑TCS | |||
| 001 | I8-98124 513-0 | PAN ASM OIL | 1 | 1907- | 4HL1‑TCS | NQR | ||
| 025 | I8-97190 392-0 | STUD OIL PAN | 9 | 1907- | 4HL1‑TCS | (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE | ||
| 017 | I8-97364 386-0 | GASKET OIL PAN | 1 | 1907- | 4HL1‑TCS | |||
| 010 | I0-28050 816-0 | BOLT GUIDE TUBE | 1 | 1907- | 4HL1‑TCS | (A) M8X16 FLANGE | ||
| 004 | I8-94152 613-A | PLUG DRAIN,OIL | 1 | 1907- | 4HL1‑TCS | M14X14 | ||
| 123 | I8-97187 000-0 | RUBBER SEAL OIL | 1 | 1907- | 4HL1‑TCS | (D) | ||
| 025 | I8-97190 391-0 | STUD OIL PAN | 1 | 1907- | 4HL1‑TCS | (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE | ||
| 123 | I8-97186 998-0 | RUBBER SEAL OIL | 1 | 1907- | 4HL1‑TCS | (C) | ||
| 023 | I8-97190 390-0 | BOLT OIL PAN | 13 | 1907- | 4HL1‑TCS | M8X12.8 W/PL WASHER,RUBBER TUBE | ||
| 002 | I8-98287 887-0 | GAUGE OIL LEVEL | 1 | 1907- | 4HL1‑TCS | |||
| 049 | I0-91180 108-0 | NUT GUIDE TUBE | 1 | 1907- | 4HL1‑TCS | M8 FLANGE | ||
| 010 | I0-28151 016-0 | BOLT GUIDE TUBE | 1 | 1907- | 4HL1‑TCS | (B) M10X16 FLANGE | ||
| 003 | I8-97912 531-0 | GASKET DRAIN PLUG | 1 | 1907- | 4HL1‑TCS | ID=14.2 OD=24 | ||
| 321 | I8-98379 823-1 | BRACKET GUIDE TUBE | 1 | 1907- | 4HL1‑TCS | (B) |
