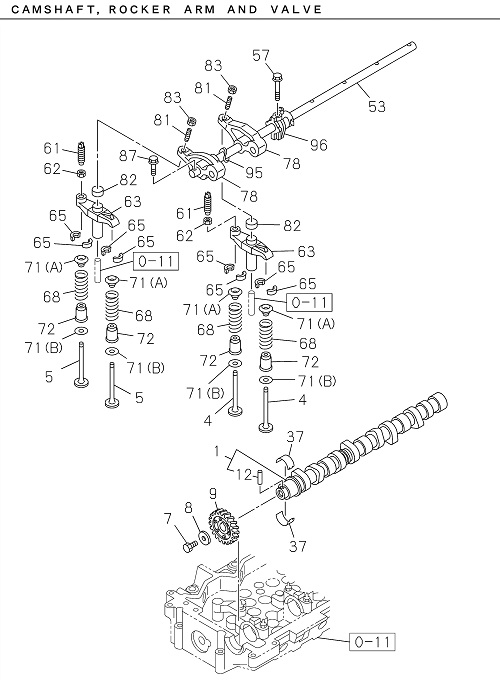

0-14 | CAMSHAFT AND VALVE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 078 | I8-97306 424-3 | ARM ROCKER | 4 | 1907- | 4HL1‑TCS | EXHAUST | ||
| 005 | I8-97209 876-4 | VALVE EXH | 8 | 1907- | 4HL1‑TCS | |||
| 206 | I8-98021 070-0 | BUSHING IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 102 | I8-97096 826-A | COVER IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (B) OD=51 | ||
| 206 | I8-97606 770-0 | BUSHING IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (C) | ||
| 007 | I8-94396 439-0 | BOLT CM/SHF GEAR | 1 | 1907- | 4HL1‑TCS | M14X40 | ||
| 112 | I8-97606 767-0 | GEAR IDLE | 1 | 1907- | 4HL1‑TCS | (A) Z=61 | ||
| 071 | I8-94390 783-2 | SEAT SPR | 16 | 1907- | 4HL1‑TCS | (A) UPPER OD=32.8 T=12.75 | ||
| 111 | I1-12535 030-1 | COLLAR THRUST,IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (B) ID=14.5 OD=59 | ||
| 101 | I0-23951 425-0 | BOLT THRUST COLLAR | 1 | 1907- | 4HL1‑TCS | (C) M14X25 | ||
| 071 | I8-94391 468-0 | SEAT SPR | 16 | 1907- | 4HL1‑TCS | (B) LOWER ID=14.3 T=1.0 | ||
| 105 | I0-16956 460-0 | BOLT IDLE GEAR SHAFT | 1 | 1907- | 4HL1‑TCS | M14X60 | ||
| 107 | I8-97186 398-1 | SHAFT IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 117 | I8-97113 167-0 | BOLT FLANGE | 1 | 1907- | 4HL1‑TCS | M14X65 FLANGE | ||
| 206 | I8-97606 768-0 | BUSHING IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (B) | ||
| 001 | I8-97262 166-0 | CAMSHAFT | 1 | 1907- | 4HL1‑TCS | |||
| 107 | I8-97350 021-A | SHAFT IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (D) | ||
| 101 | I0-28060 816-0 | BOLT THRUST COLLAR | 3 | 1907- | 4HL1‑TCS | (B) M8X16 FLANGE | ||
| 267 | I8-98019 024-0 | SENSOR CAM ANGLE | 1 | 1907- | 4HL1‑TCS | |||
| 081 | I8-94395 024-0 | SCREW ADJ,ROCKER ARM | 8 | 1907- | 4HL1‑TCS | M10 L=32 | ||
| 037 | I8-97386 189-0 | METAL CM/SHF | 10 | 1907- | 4HL1‑TCS | B=16 | ||
| 112 | I8-97606 929-0 | GEAR IDLE | 1 | 1907- | 4HL1‑TCS | (B) Z=41 | ||
| 101 | I8-94372 221-1 | BOLT THRUST COLLAR | 1 | 1907- | 4HL1‑TCS | (A) M14X36.5 | ||
| 087 | I0-28050 840-0 | BOLT ROCKER SHAFT | 2 | 1907- | 4HL1‑TCS | M8X40 FLANGE | ||
| 053 | I8-97389 921-0 | SHAFT ROCKER ARM | 1 | 1907- | 4HL1‑TCS | |||
| 095 | I8-94392 999-0 | SPRING ROCKER SHAFT | 4 | 1907- | 4HL1‑TCS | |||
| 062 | I9-09844 574-0 | NUT ADJ SCREW LK BRIDGE | 8 | 1907- | 4HL1‑TCS | M8 | ||
| 072 | I8-97376 720-0 | SEAL VLV GUIDE | 16 | 1907- | 4HL1‑TCS | |||
| 061 | I8-94394 803-0 | SCREW ADJ,BRIDGE | 8 | 1907- | 4HL1‑TCS | M8X21 | ||
| 068 | I8-97648 793-A | SPRING VLV | 8 | 1907- | 4HL1‑TCS | INLET MARK BLUE | ||
| 269 | I0-28050 612-0 | BOLT SENSOR | 1 | 1907- | 4HL1‑TCS | M6X12 FLANGE | ||
| 107 | I8-98163 984-0 | SHAFT IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (B) | ||
| 112 | I8-97120 005-1 | GEAR IDLE | 1 | 1907- | 4HL1‑TCS | (D) Z=34 | ||
| 009 | I8-98018 935-3 | GEAR CM/SHF | 1 | 1907- | 4HL1‑TCS | Z=35 | ||
| 082 | I8-94396 015-2 | CAP ROCKER SHAFT | 8 | 1907- | 4HL1‑TCS | |||
| 068 | I8-97210 682-0 | SPRING VLV | 8 | 1907- | 4HL1‑TCS | EXHAUST MARK RED | ||
| 065 | I5-12565 004-0 | COLLAR SPLIT | 32 | 1907- | 4HL1‑TCS | |||
| 111 | I8-97209 728-A | COLLAR THRUST,IDLE GEAR | 3 | 1907- | 4HL1‑TCS | (A) ID=14.5 OD=46 | ||
| 112 | I8-98021 069-0 | GEAR IDLE | 1 | 1907- | 4HL1‑TCS | (C) Z=72-60-30 | ||
| 078 | I8-97306 421-3 | ARM ROCKER | 4 | 1907- | 4HL1‑TCS | INLET | ||
| 107 | I8-94334 682-1 | SHAFT IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (C) | ||
| 012 | I8-94399 487-0 | KEY CAM GEAR SET | 1 | 1907- | 4HL1‑TCS | OD=7 L=7.5 | ||
| 008 | I9-09851 850-A | WASHER CM/SHF GEAR | 1 | 1907- | 4HL1‑TCS | ID=14.5 | ||
| 224 | I0-28050 816-0 | BOLT COVER | 2 | 1907- | 4HL1‑TCS | M8X16 FLANGE | ||
| 083 | I0-91111 510-0 | NUT ADJ SCREW,LK | 8 | 1907- | 4HL1‑TCS | M10 | ||
| 063 | I8-94392 002-3 | BRIDGE | 8 | 1907- | 4HL1‑TCS | |||
| 057 | I8-94393 131-0 | BOLT ROCKER ARM BRKT | 3 | 1907- | 4HL1‑TCS | M10X62 FLANGE | ||
| 102 | I8-94334 681-1 | COVER IDLE GEAR | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 096 | I8-97334 414-0 | BRACKET ROCKER ARM SHAFT | 3 | 1907- | 4HL1‑TCS | |||
| 004 | I8-94395 882-2 | VALVE INL | 8 | 1907- | 4HL1‑TCS | |||
| 350 | I8-97369 404-0 | GASKET SENSOR,CAM ANGLE | 1 | 1907- | 4HL1‑TCS | ID=14.2 OD=18.8 | ||
| 223 | I1-09623 423-0 | GASKET COVER,IDLE GEAR | 1 | 1907- | 4HL1‑TCS | ID=105.6 |
