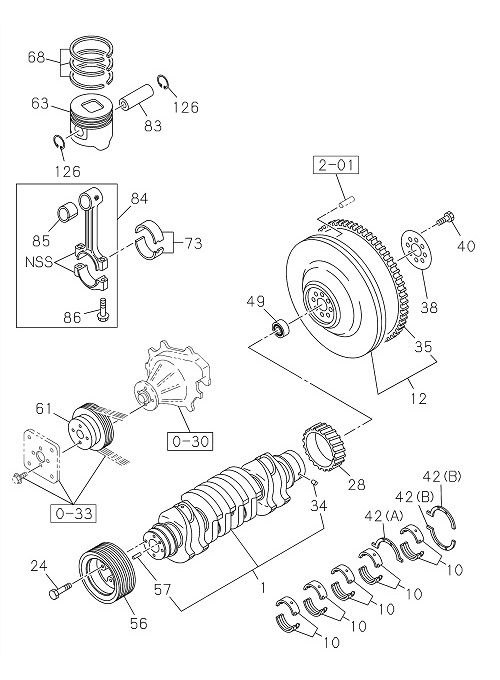

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 040 | I8-97178 013-0 | BOLT FLYWHEEL | 8 | 1907- | 4HL1‑TCS | M16X42 | ||
| 073 | I8-97616 359-0 | METAL SET CONN ROD,STANDARD | 4 | 1907- | 4HL1‑TCS | YELLOW | ||
| 010 | I8-97372 076-1 | METAL SET CRANKSHAFT,STANDARD | 5 | 1907- | 4HL1‑TCS | BLUE | ||
| 086 | I8-98091 141-0 | BOLT CONNROD | 8 | 1907- | 4HL1‑TCS | M13X57 FLANGE | ||
| 012 | I8-97696 377-A | FLYWHEEL | 1 | 1907- | 4HL1‑TCS | |||
| 084 | I8-98032 182-4 | ROD ASM CONN | 4 | 1907- | 4HL1‑TCS | |||
| 024 | I8-97028 733-0 | BOLT DAMPER | 4 | 1907- | 4HL1‑TCS | M16X42 | ||
| 042 | I8-97386 549-0 | WASHER THRUST,CR/SHF | 2 | 1907- | 4HL1‑TCS | (B) | ||
| 035 | I8-97498 796-0 | GEAR RING | 1 | 1907- | 4HL1‑TCS | Z=138 | ||
| 056 | I8-97222 031-3 | PULLEY CR/SHF DAMPER | 1 | 1907- | 4HL1‑TCS | 4-GROOVE | ||
| 010 | I8-97372 077-1 | METAL SET CRANKSHAFT,STANDARD | 5 | 1907- | 4HL1‑TCS | BLACK | ||
| 034 | I9-09878 626-0 | PIN GEAR SETTING | 1 | 1907- | 4HL1‑TCS | OD=5 L=6 | ||
| 038 | I8-94397 496-A | WASHER FLYWHEEL | 1 | 1907- | 4HL1‑TCS | ID=55 OD=110 | ||
| 073 | I8-97616 358-0 | METAL SET CONN ROD,STANDARD | 4 | 1907- | 4HL1‑TCS | GREEN | ||
| 049 | I8-97258 239-A | BEARING PILOT | 1 | 1907- | 4HL1‑TCS | (IADG) | ||
| 057 | I9-08150 820-0 | PIN PULLEY | 2 | 1907- | 4HL1‑TCS | OD=8 L=20 | ||
| 042 | I8-97386 548-0 | WASHER THRUST,CR/SHF | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 126 | I1-09587 081-1 | RING SNAP,PISTON PIN | 8 | 1907- | 4HL1‑TCS | |||
| 061 | I8-97364 396-1 | PULLEY FAN DRIVE | 1 | 1907- | 4HL1‑TCS | 2-GROOVE | ||
| 001 | I8-97363 301-3 | CRANKSHAFT | 1 | 1907- | 4HL1‑TCS | |||
| 063 | I8-98232 325-0 | PISTON | 4 | 1907- | 4HL1‑TCS | NON GRADE | ||
| 028 | I8-97109 626-1 | GEAR CR/SHF | 1 | 1907- | 4HL1‑TCS | Z=42 | ||
| 049 | I8-97258 239-0 | BEARING PILOT | 1 | 1907- | 4HL1‑TCS | |||
| 085 | I8-94391 794-1 | BUSHING CONNROD | 4 | 1907- | 4HL1‑TCS | |||
| 083 | I8-94396 731-1 | PIN PISTON | 4 | 1907- | 4HL1‑TCS | |||
| 010 | I8-97372 078-1 | METAL SET CRANKSHAFT,STANDARD | 5 | 1907- | 4HL1‑TCS | BROWN | ||
| 068 | I8-97603 533-1 | RING SET PISTON,STANDARD | 4 | 1907- | 4HL1‑TCS |
