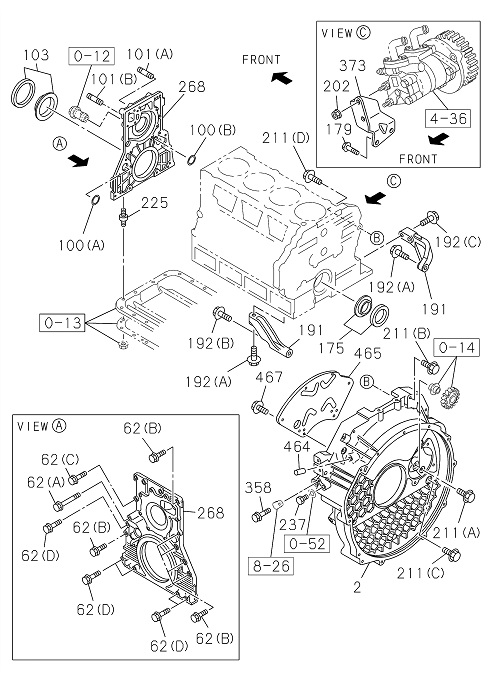

0-20 | TIMING GEAR CASE AND
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 101 | I0-41010 818-0 | STUD WATER PUMP | 1 | 1907- | 4HL1‑TCS | (A) M8X18 L=30 | ||
| 211 | I8-97200 622-1 | BOLT HSG | 2 | 1907- | 4HL1‑TCS | (B) M8X20,M8X65 L=90 | ||
| 202 | I0-91180 108-0 | NUT BRKT | 2 | 1907- | 4HL1‑TCS | M8 FLANGE | ||
| 192 | I0-28151 040-0 | BOLT STAY TO HSG | 2 | 1907- | 4HL1‑TCS | (C) M10X40 FLANGE | ||
| 465 | I8-97363 824-1 | PLATE FLYWHEEL HSG | 1 | 1907- | 4HL1‑TCS | |||
| 101 | I8-97028 541-0 | STUD WATER PUMP | 1 | 1907- | 4HL1‑TCS | (B) M8X18 L=29 | ||
| 062 | I1-09044 072-1 | BOLT COVER | 2 | 1907- | 4HL1‑TCS | (A) M8X65 FLANGE | ||
| 373 | I8-97149 333-0 | BRACKET PUMP | 1 | 1907- | 4HL1‑TCS | |||
| 467 | I8-98030 649-0 | BOLT PLATE | 6 | 1907- | 4HL1‑TCS | M6X10 | ||
| 062 | I0-28650 830-0 | BOLT COVER | 1 | 1907- | 4HL1‑TCS | (C) M8X30 FLANGE | ||
| 464 | I8-94373 246-3 | PIPE PCV,FLYWHEEL HSG | 1 | 1907- | 4HL1‑TCS | |||
| 237 | I0-28051 012-0 | PLUG FLYWHEEL HSG | 1 | 1907- | 4HL1‑TCS | M10X12 FLANGE | ||
| 191 | I8-97167 292-0 | STAY FLYWHEEL HSG | 1 | 1907- | 4HL1‑TCS | |||
| 062 | I0-28650 825-0 | BOLT COVER | 6 | 1907- | 4HL1‑TCS | (B) M8X25 FLANGE | ||
| 192 | I0-28151 200-0 | BOLT STAY TO HSG | 1 | 1907- | 4HL1‑TCS | (B) M12X100 FLANGE | ||
| 211 | I0-28651 040-0 | BOLT HSG | 1 | 1907- | 4HL1‑TCS | (D) M10X40 FLANGE | ||
| 002 | I8-98328 145-0 | HOUSING FLYWHEEL | 1 | 1907- | 4HL1‑TCS | |||
| 179 | I0-28151 020-0 | BOLT BRKT | 2 | 1907- | 4HL1‑TCS | M10X20 FLANGE | ||
| 100 | I9-09561 318-0 | GASKET FRT COVER | 1 | 1907- | 4HL1‑TCS | (B) ID=17.8 | ||
| 211 | I8-98179 087-1 | BOLT HSG | 9 | 1907- | 4HL1‑TCS | (C) M12X70 FLANGE, W/PL WASHER | ||
| 062 | I0-28650 835-0 | BOLT COVER | 6 | 1907- | 4HL1‑TCS | (D) M8X35 FLANGE | ||
| 191 | I8-97167 291-0 | STAY FLYWHEEL HSG | 1 | 1907- | 4HL1‑TCS | |||
| 103 | I8-97329 780-0 | SEAL OIL,CR/SHF,FRT | 1 | 1907- | 4HL1‑TCS | ID=109 OD=137 | ||
| 192 | I0-28151 250-0 | BOLT STAY TO HSG | 2 | 1907- | 4HL1‑TCS | (A) M12X50 FLANGE | ||
| 358 | I0-28050 616-0 | BOLT ADAPTER | 1 | 1907- | 4HL1‑TCS | M6X16 FLANGE | ||
| 211 | I8-97135 419-0 | BOLT HSG | 1 | 1907- | 4HL1‑TCS | (A) M12X30 FLANGE | ||
| 268 | I8-98039 931-2 | COVER FRT | 1 | 1907- | 4HL1‑TCS | |||
| 175 | I8-98334 339-0 | SEAL OIL,CR/SHF,RR | 1 | 1907- | 4HL1‑TCS | ID=104 OD=139 | ||
| 103 | I6-97329 780-0 | SEAL OIL,CR/SHF,FRT | 1 | 1907- | 4HL1‑TCS | (IADG) ID=109 OD=137 | ||
| 100 | I8-97028 748-1 | GASKET FRT COVER | 1 | 1907- | 4HL1‑TCS | (A) ID=35.1 | ||
| 225 | I8-97190 392-0 | STUD OIL PAN | 3 | 1907- | 4HL1‑TCS | M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE |
