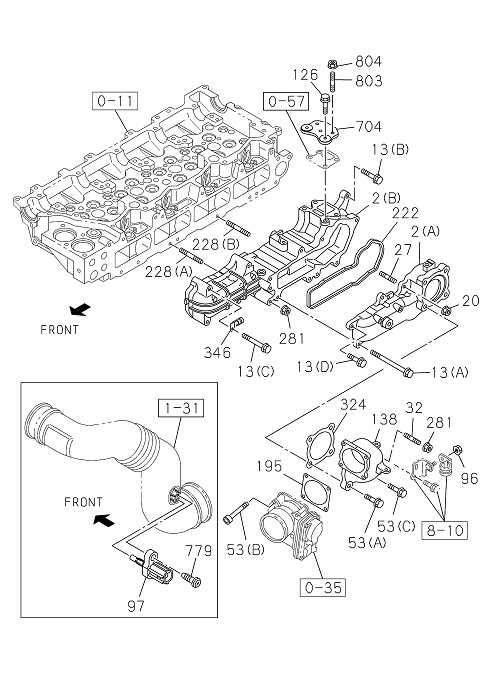

| 324 |
I8-98249 932-0 |
|
GASKET INL PIPE TO INL CVR |
1 |
1907- |
|
4HL1‑TCS |
|
| 053 |
I0-28050 830-0 |
|
BOLT INL PIPE |
1 |
1907- |
|
4HL1‑TCS |
(A) M8X30 FLANGE |
| 013 |
I0-28055 812-0 |
|
BOLT INL MANIF |
3 |
1907- |
|
4HL1‑TCS |
(A) M8X120 FLANGE |
| 346 |
I8-97367 984-1 |
|
CLIP ENG HARNESS |
1 |
1907- |
|
4HL1‑TCS |
ID=12 |
| 126 |
I0-28650 825-0 |
|
BOLT COVER |
2 |
1907- |
|
4HL1‑TCS |
M8X25 FLANGE |
| 804 |
I0-91180 108-0 |
|
NUT COVER |
2 |
1907- |
|
4HL1‑TCS |
M8 FLANGE |
| 096 |
I0-91180 108-0 |
|
NUT ENG HARNESS CLIP |
1 |
1907- |
|
4HL1‑TCS |
M8 FLANGE |
| 002 |
I8-98115 667-1 |
|
COVER INL |
1 |
1907- |
|
4HL1‑TCS |
(B) |
| 138 |
I8-98218 561-0 |
|
PIPE INL |
1 |
1907- |
|
4HL1‑TCS |
|
| 013 |
I0-28050 830-0 |
|
BOLT INL MANIF |
2 |
1907- |
|
4HL1‑TCS |
(B) M8X30 FLANGE |
| 803 |
I0-41010 820-0 |
|
STUD COVER |
2 |
1907- |
|
4HL1‑TCS |
M8X20 L=32 |
| 097 |
I8-98065 377-0 |
|
SENSOR INTAKE,AIR TEMPERATURE |
1 |
1907- |
|
4HL1‑TCS |
|
| 027 |
I0-41010 825-0 |
|
STUD INL MANIF |
2 |
1907- |
|
4HL1‑TCS |
M8X25 L=37 |
| 195 |
I8-98096 968-0 |
|
GASKET THROTTLE BODY INJECTOR |
1 |
1907- |
|
4HL1‑TCS |
|
| 228 |
I8-97111 477-0 |
|
STUD INL COVER |
1 |
1907- |
|
4HL1‑TCS |
(A) M8X117 L=128 |
| 053 |
I8-98028 225-0 |
|
BOLT INL PIPE |
1 |
1907- |
|
4HL1‑TCS |
(C) M8X12,M8X30 L=50 |
| 779 |
I0-36220 514-0 |
|
BOLT SENSOR |
1 |
1907- |
|
4HL1‑TCS |
M5X14 W/LK WASHER |
| 013 |
I0-28050 825-0 |
|
BOLT INL MANIF |
2 |
1907- |
|
4HL1‑TCS |
(D) M8X25 FLANGE |
| 013 |
I0-28050 860-0 |
|
BOLT INL MANIF |
5 |
1907- |
|
4HL1‑TCS |
(C) M8X60 FLANGE |
| 053 |
I0-58330 650-0 |
|
BOLT INL PIPE |
4 |
1907- |
|
4HL1‑TCS |
(B) M6X50 HEX SOCKET |
| 032 |
I0-41010 825-0 |
|
STUD INL PIPE |
2 |
1907- |
|
4HL1‑TCS |
M8X25 L=37 |
| 222 |
I8-98032 611-0 |
|
GASKET INL COVER |
1 |
1907- |
|
4HL1‑TCS |
|
| 228 |
I8-97200 763-0 |
|
STUD INL COVER |
1 |
1907- |
|
4HL1‑TCS |
(B) M8X126 L=137 |
| 002 |
I8-98085 730-1 |
|
COVER INL |
1 |
1907- |
|
4HL1‑TCS |
(A) |
| 704 |
I8-98260 138-0 |
|
COVER |
1 |
1907- |
|
4HL1‑TCS |
|
| 020 |
I0-91180 108-0 |
|
NUT INL MANIF |
2 |
1907- |
|
4HL1‑TCS |
M8 FLANGE |
| 281 |
I0-91180 108-0 |
|
NUT INL COVER |
3 |
1907- |
|
4HL1‑TCS |
M8 FLANGE |
