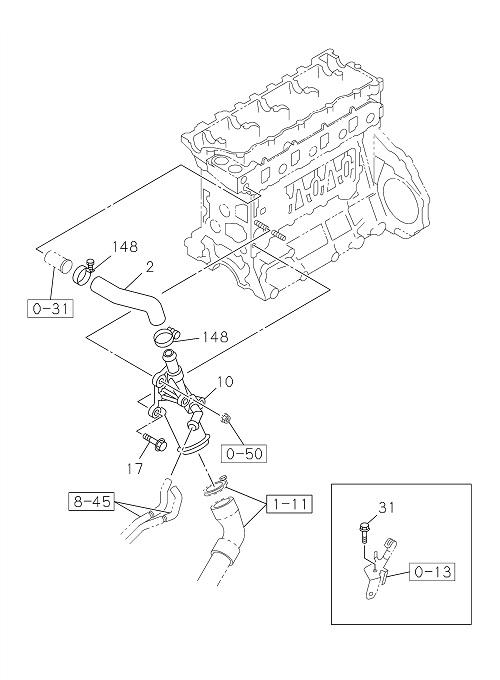

0-32 | WATER PIPING ENGINE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 031 | I0-28050 845-0 | BOLT CLIP | 1 | 1907- | 4HL1‑TCS | M8X45 FLANGE | ||
| 010 | I8-98166 991-0 | PIPE SUCTION | 1 | 1907- | 4HL1‑TCS | |||
| 148 | I1-09704 037-0 | CLIP BYPASS HOSE | 2 | 1907- | 4HL1‑TCS | ID=30 | ||
| 002 | I8-98235 636-2 | HOSE WATER,BY-PASS | 1 | 1907- | 4HL1‑TCS | |||
| 017 | I8-94458 473-1 | BOLT SUCTION PIPE | 1 | 1907- | 4HL1‑TCS | M8X48 FLANGE |
