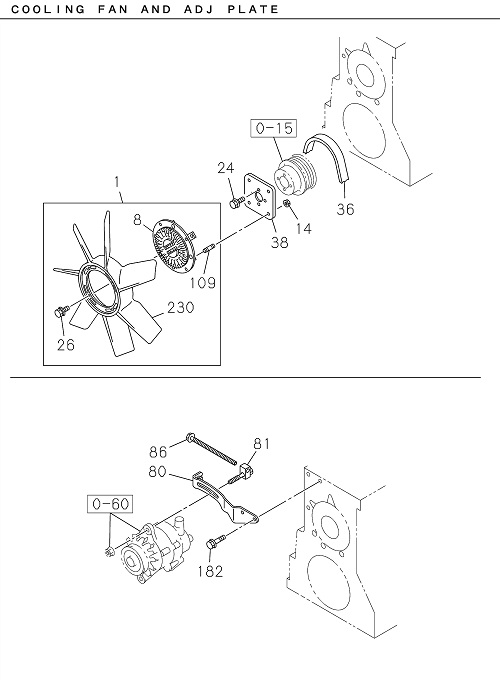

0-33 | FAN AND FAN BELT
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 230 | I8-98190 058-0 | FAN COOLING | 1 | 1907- | 4HL1‑TCS | |||
| 038 | I8-97108 643-0 | SPACER FAN | 1 | 1907- | 4HL1‑TCS | |||
| 008 | I8-98019 743-0 | CLUTCH COOLING FAN | 1 | 1907- | 4HL1‑TCS | |||
| 014 | I0-91180 108-0 | NUT FAN TO CLU | 4 | 1907- | 4HL1‑TCS | M8 FLANGE | ||
| 109 | I8-97049 577-1 | STUD FAN CLU | 4 | 1907- | 4HL1‑TCS | M8X13.5 L=22 | ||
| 024 | I0-28080 818-0 | BOLT FAN | 4 | 1907- | 4HL1‑TCS | M8X18 FLANGE | ||
| 086 | I8-97172 720-1 | BOLT ADJ | 1 | 1907- | 4HL1‑TCS | M8X130 FLANGE | ||
| 081 | I8-97257 223-0 | PIECE SLIDING | 1 | 1907- | 4HL1‑TCS | |||
| 001 | I8-98190 148-1 | FAN COOLING | 1 | 1907- | 4HL1‑TCS | OD=510 | ||
| 036 | I2-97014 252-1 | BELT COOLING FAN | 1 | 1907- | 4HL1‑TCS | |||
| 026 | I8-94389 764-0 | BOLT FAN TO CLU | 4 | 1907- | 4HL1‑TCS | |||
| 182 | I0-28650 835-0 | BOLT BRKT | 2 | 1907- | 4HL1‑TCS | M8X35 FLANGE | ||
| 080 | I8-97249 636-0 | PLATE ADJ | 1 | 1907- | 4HL1‑TCS |
