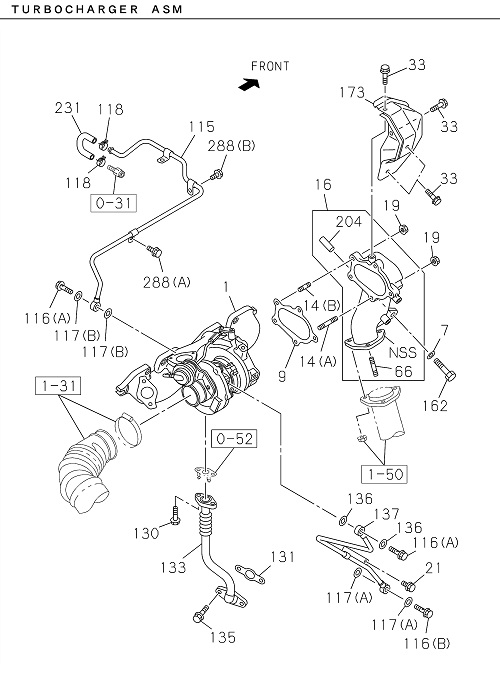

0-36 | TURBOCHARGER SYSTEM
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 133 | I8-97484 294-0 | PIPE OIL DRAIN,TURBOCHARGER | 1 | 1907- | 4HL1‑TCS | |||
| 231 | I6-97209 950-0 | HOSE RUBBER,TURBOCHARGER OUT | 1 | 1907- | 4HL1‑TCS | (IADG) | ||
| 116 | I8-98037 827-0 | BOLT WATER PIPE | 1 | 1907- | 4HL1‑TCS | (B) M14X30 EYE-BOLT | ||
| 014 | I8-97019 477-0 | STUD TURBOCHARGER TO EXH PIPE | 2 | 1907- | 4HL1‑TCS | (A) M8X94 L=108 | ||
| 137 | I8-98213 680-0 | PIPE WATER,TURBOCHARGER IN | 1 | 1907- | 4HL1‑TCS | |||
| 019 | I8-97061 401-1 | NUT EXH PIPE,TURBOCHARGER | 5 | 1907- | 4HL1‑TCS | M8 FLANGE | ||
| 231 | I8-97209 950-A | HOSE RUBBER,TURBOCHARGER OUT | 1 | 1907- | 4HL1‑TCS | |||

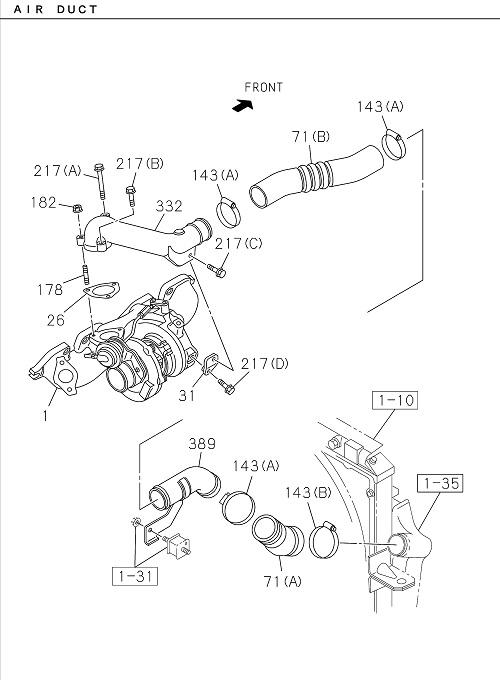

| 332 | I8-98218 562-1 | DUCT AIR,TURBOCHARGER | 1 | 1907- | 4HL1‑TCS | |||
| 178 | I0-41010 630-0 | STUD DUCT | 1 | 1907- | 4HL1‑TCS | M6X30 L=38 | ||
| 389 | I8-98332 259-0 | PIPE INL,TURBOCHARGER TO CAC | 1 | 1907- | 4HL1‑TCS | |||
| 143 | I8-98133 350-0 | CLIP HOSE,TURBOCHARGER OUTLET | 1 | 1907- | 4HL1‑TCS | (B) ID=65-85 | ||
| 016 | I8-97178 487-A | ADAPTER EXH PIPE | 1 | 1907- | 4HL1‑TCS | |||
| 143 | I8-98133 348-0 | CLIP HOSE,TURBOCHARGER OUTLET | 3 | 1907- | 4HL1‑TCS | (A) ID=45-65 | ||
| 033 | I8-97108 669-0 | BOLT HEAT PROTECTOR | 4 | 1907- | 4HL1‑TCS | M6X12 FLANGE | ||
| 217 | I8-94368 563-1 | BOLT BRKT | 1 | 1907- | 4HL1‑TCS | (D) M8X18 FLANGE | ||
| 116 | I8-98037 067-0 | BOLT WATER PIPE | 2 | 1907- | 4HL1‑TCS | (A) M14X31 EYE-BOLT | ||
| 173 | I8-97178 497-2 | PROTECTOR HEAT,FUEL PIPE | 1 | 1907- | 4HL1‑TCS | |||
| 182 | I0-91180 106-0 | NUT DUCT | 1 | 1907- | 4HL1‑TCS | M6 FLANGE | ||
| 117 | I9-09571 414-0 | GASKET WATER PIPE | 2 | 1907- | 4HL1‑TCS | (B) ID=14.2 OD=20 | ||
| 021 | I0-28050 812-A | BOLT PIPE | 1 | 1907- | 4HL1‑TCS | M8X12 FLANGE | ||
| 288 | I0-28050 812-A | BOLT WATER PIPE CLIP | 1 | 1907- | 4HL1‑TCS | (A) M8X12 FLANGE | ||
| 118 | I8-94221 519-0 | CLIP WATER HOSE | 2 | 1907- | 4HL1‑TCS | ID=15.5 | ||
| 204 | I8-97214 384-1 | COLLAR PIPE ADAPTER | 1 | 1907- | 4HL1‑TCS | |||
| 009 | I8-97039 777-1 | GASKET TURBOCHARGER TO EXH DUCT | 1 | 1907- | 4HL1‑TCS | |||
| 001 | I8-98213 669-3 | TURBOCHARGER ASM | 1 | 1907- | 4HL1‑TCS | |||
| 066 | I0-44011 025-0 | STUD EXH PIPE | 3 | 1907- | 4HL1‑TCS | M10X25 L=40 | ||
| 217 | I0-28050 670-0 | BOLT BRKT | 1 | 1907- | 4HL1‑TCS | (B) M6X70 FLANGE | ||
| 031 | I8-98227 651-1 | BRACKET INL DUCT,HEAT PROTECTOR | 1 | 1907- | 4HL1‑TCS | |||
| 217 | I0-28050 630-0 | BOLT BRKT | 1 | 1907- | 4HL1‑TCS | (A) M6X30 FLANGE | ||
| 007 | I8-94174 537-0 | WASHER PL,BRKT | 1 | 1907- | 4HL1‑TCS | ID=8 OD=18 T=3 | ||
| 136 | I8-98251 345-0 | GASKET WATER PIPE | 2 | 1907- | 4HL1‑TCS | ID=14.2 OD=19.2 | ||
| 217 | I0-28050 830-0 | BOLT BRKT | 1 | 1907- | 4HL1‑TCS | (C) M8X30 FLANGE | ||
| 014 | I8-97019 478-0 | STUD TURBOCHARGER TO EXH PIPE | 3 | 1907- | 4HL1‑TCS | (B) M8X49 L=63 | ||
| 162 | I5-09000 275-0 | BOLT ADAPTER | 1 | 1907- | 4HL1‑TCS | M8X57 | ||
| 135 | I0-28050 820-0 | BOLT OIL PIPE TO C/BL | 2 | 1907- | 4HL1‑TCS | M8X20 FLANGE | ||
| 131 | I8-94394 671-0 | GASKET OIL PIPE,C/BL | 1 | 1907- | 4HL1‑TCS | ID=30 | ||
| 071 | I8-98335 374-0 | HOSE INLET PIPE TO TURBOCHARGER | 1 | 1907- | 4HL1‑TCS | (B) | ||
| 288 | I0-28050 816-0 | BOLT WATER PIPE CLIP | 1 | 1907- | 4HL1‑TCS | (B) M8X16 FLANGE | ||
| 115 | I8-98213 681-4 | PIPE WATER,TURBOCHARGER OUT | 1 | 1907- | 4HL1‑TCS | |||
| 071 | I8-98335 366-0 | HOSE INLET PIPE TO TURBOCHARGER | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 071 | I8-98335 361-0 | HOSE INLET PIPE TO TURBOCHARGER | 1 | 1907- | 4HL1‑TCS | (A) | ||
| 130 | I0-50540 616-0 | BOLT OIL PIPE TO TURBOCHARGER DRAIN | 2 | 1907- | 4HL1‑TCS | M6X16 W/LK WASHER | ||
| 117 | I8-98251 345-0 | GASKET WATER PIPE | 2 | 1907- | 4HL1‑TCS | (A) ID=14.2 OD=19.2 | ||
| 026 | I8-97202 328-A | GASKET DUCT | 1 | 1907- | 4HL1‑TCS | ID=47 |
