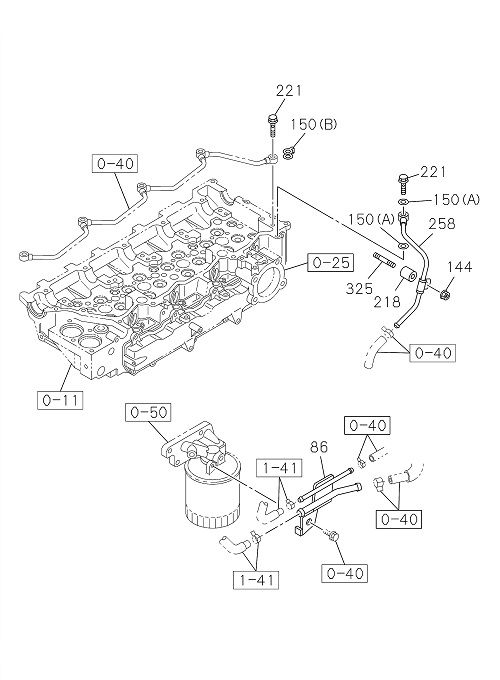

0-42 | FUEL PUMP AND PIPE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 221 | I8-94396 711-0 | BOLT FUEL PIPE | 2 | 1907- | 4HL1‑TCS | M10X21 EYE-BOLT | ||
| 150 | I1-09630 083-0 | GASKET FUEL PIPE | 2 | 1907- | 4HL1‑TCS | (A) ID=10.2 OD=15.2 | ||
| 144 | I0-91180 106-0 | NUT CLIP | 1 | 1907- | 4HL1‑TCS | M6 FLANGE | ||
| 218 | I8-94371 715-1 | PIECE DISTANCE | 1 | 1907- | 4HL1‑TCS | |||
| 258 | I8-98284 565-0 | PIPE ASM FUEL,LEAK OFF | 1 | 1907- | 4HL1‑TCS | |||
| 086 | I8-98213 704-1 | PIPE FUEL,PUMP TO CARBURETOR | 1 | 1907- | 4HL1‑TCS | |||
| 325 | I0-41010 630-0 | STUD CLIP | 1 | 1907- | 4HL1‑TCS | M6X30 L=38 | ||
| 150 | I8-98079 755-0 | GASKET FUEL PIPE | 1 | 1907- | 4HL1‑TCS | (B) ID=10.2 OD=17 |
