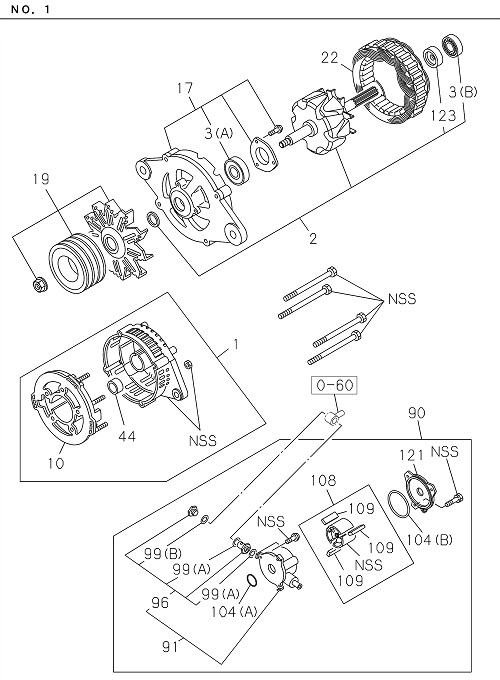

| 022 |
I8-97192 850-0 |
|
STATOR GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 123 |
I8-97062 644-0 |
|
GUIDE BRUSH |
1 |
|
|
ALL |
|
| 096 |
I8-97148 118-0 |
|
VALVE ASM VAC PUMP |
1 |
|
|
ALL |
|
| 099 |
I5-19679 002-0 |
|
GASKET VAC PUMP |
2 |
|
|
ALL |
(A) ID=18 OD=24 |
| 003 |
I8-98146 442-0 |
|
BEARING ROTOR,GEN |
1 |
|
|
24V 80A |
(A) ASM PART B=8-97351-574-1 |
| 109 |
I8-97083 298-0 |
|
VANE VAC PUMP |
3 |
|
|
ALL |
|
| 002 |
I8-97249 330-1 |
|
ROTOR GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |
| 121 |
I8-97148 116-0 |
|
COVER RR,VAC PUMP |
1 |
|
|
ALL |
|
| 104 |
I8-97083 304-0 |
|
GASKET FRT COVER,VAC PUMP |
1 |
|
|
ALL |
(B) |
| 044 |
I8-94156 589-0 |
|
SEAL RR COVER,GEN |
1 |
|
|
ALL |
|
| 001 |
I8-98230 322-0 |
|
COVER ASM RR,GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |
| 010 |
I8-98230 331-0 |
|
RECTIFIER GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |
| 108 |
I8-97353 551-0 |
|
ROTOR VAC PUMP |
1 |
|
|
ALL |
|
| 099 |
I5-19679 003-0 |
|
GASKET VAC PUMP |
1 |
|
|
ALL |
(B) ID=12 OD=24 |
| 019 |
I8-97249 335-0 |
|
PULLEY GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |
| 019 |
I8-97148 113-0 |
|
PULLEY GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 022 |
I8-97249 331-1 |
|
STATOR GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |

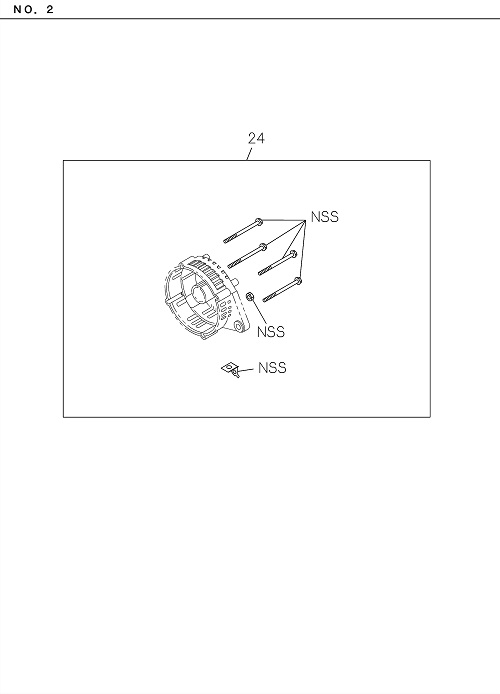

| 024 |
I8-97131 532-0 |
|
SCREW RECTIFIER,GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 003 |
I8-97062 654-A |
|
BEARING ROTOR,GEN |
1 |
|
|
24V 50A |
(IADG) (A) ASM PART A=8-97351-572-1 |
| 010 |
I8-98230 330-0 |
|
RECTIFIER GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 017 |
I8-97249 334-0 |
|
COVER ASM FRT,GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |
| 090 |
I8-97351 707-0 |
|
PUMP ASM VAC,GEN |
1 |
|
|
ALL |
|
| 003 |
I8-97062 654-0 |
|
BEARING ROTOR,GEN |
1 |
|
|
24V 50A |
(A) ASM PART A=8-97351-572-1 |
| 017 |
I8-97351 706-0 |
|
COVER ASM FRT,GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 003 |
I8-97062 744-0 |
|
BEARING ROTOR,GEN |
1 |
|
|
ALL |
(B) ASM PART A=8-97351-572-1 B=8-97351-574-1 |
| 091 |
I8-97148 117-0 |
|
BODY VAC PUMP |
1 |
|
|
ALL |
|
| 104 |
I8-94156 608-0 |
|
GASKET FRT COVER,VAC PUMP |
1 |
|
|
ALL |
(A) |
| 002 |
I8-97351 705-0 |
|
ROTOR GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 001 |
I8-98230 320-0 |
|
COVER ASM RR,GEN |
1 |
|
|
24V 50A |
ASM PART A=8-97351-572-1 |
| 044 |
I6-94156 589-0 |
|
SEAL RR COVER,GEN |
1 |
|
|
ALL |
(IADG) |
| 024 |
I8-97249 336-0 |
|
SCREW RECTIFIER,GEN |
1 |
|
|
24V 80A |
ASM PART B=8-97351-574-1 |
