1-31 | AIR DUCT
ELF
NPS81 NQR81

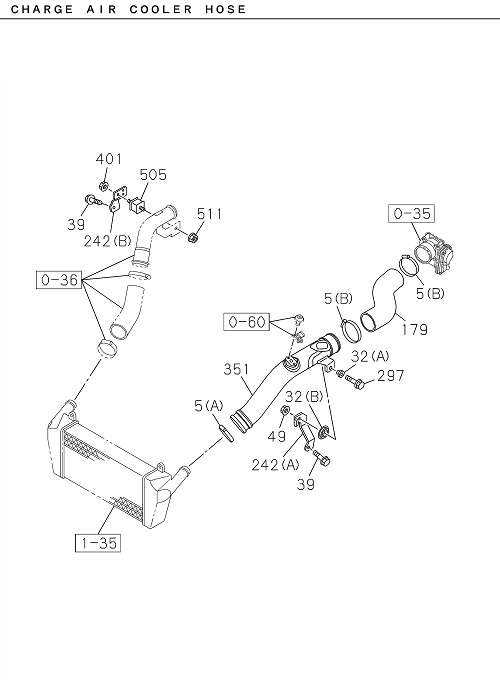

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 287 | I9-09915 075-1 | CLIP AIR DUCT | 1 | 1907- | ALL | (B) ID=117 | ||
| 351 | I8-98254 347-1 | DUCT AIR | 1 | 1907- | NQR81 | |||
| 005 | I1-14239 263-0 | CLIP AIR DUCT | 1 | 1907- | ALL | (C) ID=127 | ||
| 242 | I7-55183 307-0 | BRACKET AIR DUCT | 1 | 1907- | ALL | (C) | ||
| 179 | I8-98347 905-0 | HOSE AIR INT | 1 | 1907- | ALL | |||
| 035 | I8-98336 039-0 | SEAL DUCT,INT | 1 | 1907- | ALL | |||
| 005 | I8-98133 350-0 | CLIP AIR DUCT | 3 | 1907- | ALL | (B) ID=65-85 | ||
| 401 | I0-91180 108-0 | NUT BRKT,AIR INT | 1 | 1907- | ALL | M8 FLANGE | ||
| 242 | I7-55183 375-0 | BRACKET AIR DUCT | 1 | 1907- | L | ALL | (E) | |
| 232 | I8-98335 365-0 | HOSE CONN | 1 | 1907- | ALL | (B) | ||
| 032 | I8-97105 689-A | RUBBER AIR DUCT MTG | 1 | 1907- | ALL | (A) OD=23 | ||
| 281 | I8-98000 230-4 | DUCT AIR,VERTICAL INT | 1 | 1907- | ALL | |||
| 505 | I8-97081 886-A | RUBBER MTG | 1 | 1907- | ALL | |||
| 242 | I8-98347 914-0 | BRACKET AIR DUCT | 1 | 1907- | ALL | (B) | ||
| 314 | I0-91614 810-0 | WASHER PL,AIR INT DUCT | 3 | 1907- | ALL | ID=10.5 OD=32 | ||
| 381 | I8-97581 234-0 | NUT BRKT,AIR DUCT | 5 | 1907- | ALL | M8 W/LK WASHER | ||
| 511 | I0-91180 108-0 | NUT PIPE | 1 | 1907- | ALL | M8 FLANGE | ||
| 061 | I0-28650 825-0 | BOLT BRKT,AIR DUCT | 1 | 1907- | ALL | M8X25 FLANGE | ||
| 351 | I8-98260 614-1 | DUCT AIR | 1 | 1907- | NPS81 | |||
| 389 | I8-97496 857-0 | RUBBER SUPPORT,AIR INT UPR | 2 | 1907- | ALL | (B) | ||
| 242 | I8-98347 913-0 | BRACKET AIR DUCT | 1 | 1907- | NPS81 | (A) | ||
| 049 | I0-91180 108-0 | NUT AIR DUCT | 1 | 1907- | ALL | M8 FLANGE | ||
| 242 | I8-98219 908-0 | BRACKET AIR DUCT | 1 | 1907- | NQR81 | (A) | ||
| 287 | I8-98133 349-0 | CLIP AIR DUCT | 1 | 1907- | ALL | (A) ID=55-75 | ||
| 005 | I9-09915 502-1 | CLIP AIR DUCT | 1 | 1907- | ALL | (A) D=101.6 | ||
| 232 | I8-98231 785-0 | HOSE CONN | 1 | 1907- | ALL | (A) | ||
| 026 | I8-98325 864-0 | DUCT AIR INT | 1 | 1907- | ALL | |||
| 563 | I8-98319 722-0 | BRACKET CLIP | 1 | 1907- | ALL | |||
| 242 | I7-55183 308-0 | BRACKET AIR DUCT | 1 | 1907- | R | ALL | (D) | |
| 389 | I8-98036 825-0 | RUBBER SUPPORT,AIR INT UPR | 1 | 1907- | ALL | (A) | ||
| 297 | I0-28650 840-0 | BOLT DUCT | 1 | 1907- | ALL | M8X40 FLANGE | ||
| 242 | I7-55183 243-0 | BRACKET AIR DUCT | 1 | 1907- | ALL | (F) | ||
| 040 | I0-91180 110-0 | NUT AIR INT DUCT | 1 | 1907- | ALL | M10 FLANGE | ||
| 032 | I8-94395 766-0 | RUBBER AIR DUCT MTG | 1 | 1907- | ALL | (B) OD=32 | ||
| 039 | I0-28650 825-0 | BOLT BRKT | 2 | 1907- | ALL | M8X25 FLANGE | ||
| 064 | I0-52000 816-0 | BOLT BRKT,AIR DUCT | 1 | 1907- | ALL | M8X16 | ||
| 409 | I0-91614 810-0 | WASHER PL,BRKT | 1 | 1907- | ALL | ID=10.5 OD=32 | ||
| 317 | I8-97581 234-0 | NUT CUSHION RUBBER | 3 | 1907- | ALL | M8 W/LK WASHER |
