| 411 |
I8-97371 951-0 |
|
CLIP FUEL TANK UNIT HARNESS |
4 |
1907- |
|
NQR81 |
(D) T=5.5 |
| 043 |

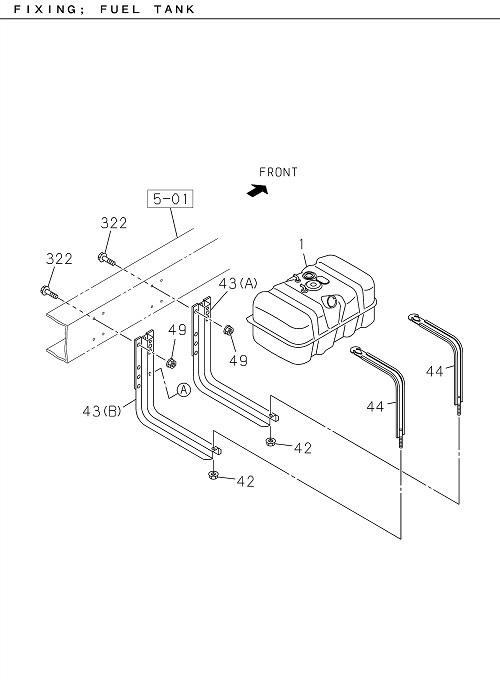

I8-97035 517-A |
|
BRACKET FUEL TANK |
2 |
1907- |
|
NQR81 |
|
| 044 |
I7-56402 275-A |
|
BAND FUEL TANK |
2 |
1907- |
|
NQR81 |
|
| 001 |

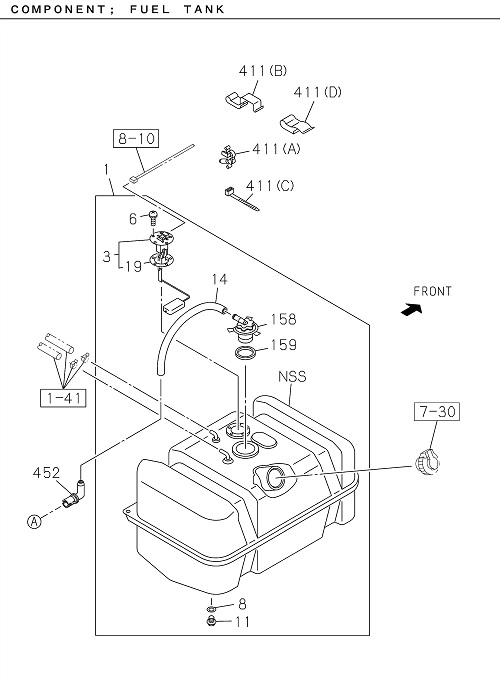

I7-22227 014-A |
|
TANK FUEL |
1 |
1907- |
|
NQR81 |
|
| 044 |
I8-98368 249-0 |
|
BAND FUEL TANK |
2 |
1907- |
|
NPS81 |
L=795 |
| 003 |
I8-98056 705-0 |
|
UNIT FUEL TANK,SUB |
1 |
1907- |
|
ALL |
|
| 322 |
I0-28661 040-0 |
|
BOLT BRKT FIX |
8 |
1907- |
|
ALL |
M10X40 FLANGE |
| 049 |
I7-05110 010-A |
|
NUT BRKT |
8 |
1907- |
|
ALL |
M10 FLANGE |
| 019 |
I5-83148 001-0 |
|
GASKET FUEL TANK UNIT |
1 |
1907- |
|
ALL |
|
| 042 |
I9-09130 408-0 |
|
NUT SUPPORT BELT |
2 |
1907- |
|
ALL |
M8 FLANGE |
| 011 |
I8-94152 613-A |
|
PLUG DRAIN,FUEL TANK |
1 |
1907- |
|
ALL |
M14X14 |
| 318 |
I8-98345 856-0 |
|
HOSE ASM FUEL,DELIVERY,RETURN |
1 |
1907- |
|
ALL |
|
| 006 |
I0-36220 512-0 |
|
SCREW TANK UNIT TO SUB FUEL TANK |
5 |
1907- |
|
ALL |
M5X12 W/LK WASHER |
| 411 |
I8-97371 947-0 |
|
CLIP FUEL TANK UNIT HARNESS |
3 |
1907- |
|
NQR81 |
(B) T=4.5 & 9 |
| 008 |
I9-09572 014-0 |
|
GASKET DRAIN PLUG,FUEL TANK |
1 |
1907- |
|
ALL |
ID=14.2 OD=23.0 |
| 001 |
I8-98062 738-4 |
|
TANK FUEL |
1 |
1907- |
|
NPS81 |
756X482X376 100L |
| 159 |
I8-97326 488-0 |
|
SEAL ROLL OVER & FLOAT VALVE |
1 |
1907- |
|
ALL |
|
| 452 |
I8-97357 261-0 |
|
BREATHER FUEL TANK |
1 |
1907- |
|
ALL |
|
| 411 |
I1-09709 287-0 |
|
CLIP FUEL TANK UNIT HARNESS |
1 |
1907- |
|
ALL |
(A) ID=5-12 L=18 |
| 300 |

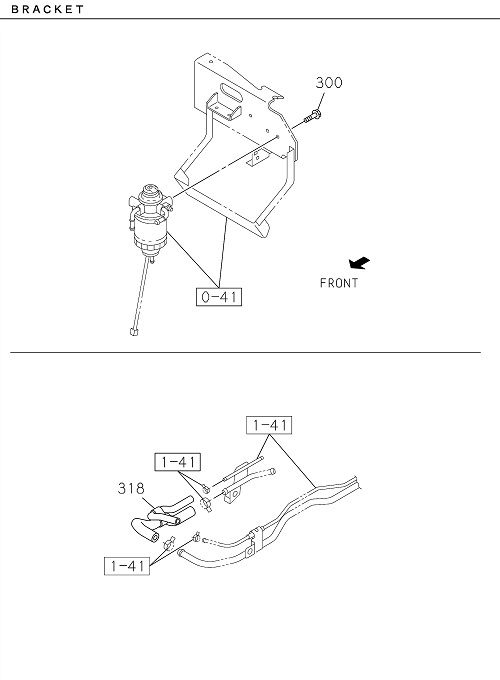

I0-28650 820-0 |
|
BOLT BRKT TO BODY |
2 |
1907- |
|
ALL |
M8X20 FLANGE |
| 411 |
I5-09707 031-1 |
|
CLIP FUEL TANK UNIT HARNESS |
1 |
1907- |
|
ALL |
(C) L=140 |
| 043 |
I8-97384 060-5 |
|
BRACKET FUEL TANK |
1 |
1907- |
|
NPS81 |
(A) |
| 043 |
I8-97384 062-6 |
|
BRACKET FUEL TANK |
1 |
1907- |
|
NPS81 |
(B) |
| 014 |
I8-98157 809-0 |
|
HOSE BREATHER,OUTLET |
1 |
1907- |
|
ALL |
L=420 |
| 158 |
I8-97179 645-0 |
|
VALVE ROLL OVER & FLOAT |
1 |
1907- |
|
ALL |
|
