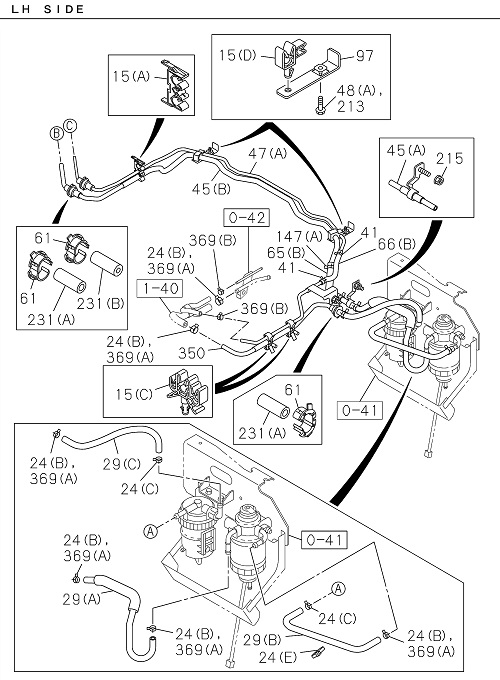

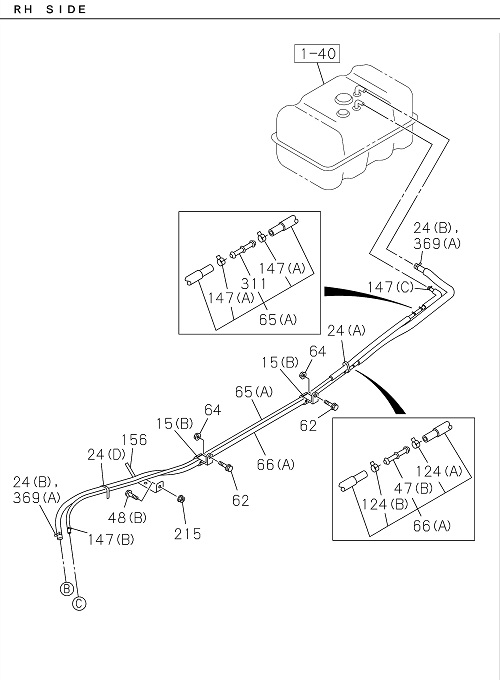

1-41 | FUEL PIPING CHASSIS
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 015 | I8-97326 157-1 | CLIP FUEL PIPE | 1 | 1907- | ALL | (A) ID=10X2 OR 12X2 & 6.35 | ||
| 015 | I8-98153 939-1 | CLIP FUEL PIPE | 2 | 1907- | ALL | (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 | ||
| 061 | I8-94128 319-A | GROMMET PIPE TO FRAME | 3 | 1907- | ALL | ID=17 | ||
| 048 | I0-28651 030-0 | BOLT BRKT | 1 | 1907- | ALL | (B) M10X30 FLANGE | ||
| 124 | I8-98150 358-0 | CLIP HOSE | 1 | 1907- | ALL | (B) ID=12 | ||
| 213 | I0-28650 825-0 | BOLT FUEL PIPE FIX | 1 | 1907- | ALL | M8X25 FLANGE | ||
| 066 | I7-00156 115-A | HOSE FUEL,RETURN PIPE | 1 | 1907- | NQR81 | (A) | ||
| 369 | I8-98150 358-0 | CLAMP HOSE,FUEL | 2 | 1907- | ALL | (B) ID=12 | ||
| 147 | I8-98150 357-0 | CLIP FUEL PIPE TO HOSE | 1 | 1907- | ALL | (C) ID=13 | ||
| 215 | I0-91180 108-0 | NUT FUEL PIPE FIX | 1 | 1907- | ALL | M8 FLANGE | ||
| 311 | I8-97353 668-0 | JOINT HOSE | 1 | 1907- | ALL | |||
| 015 | I8-97215 437-0 | CLIP FUEL PIPE | 2 | 1907- | ALL | (D) ID=12 & 6.35 | ||
| 047 | I8-98036 483-0 | PIPE FUEL,RETURN | 1 | 1907- | ALL | (B) L=70 | ||
| 156 | I8-98041 250-2 | BRACKET FUEL HOSE | 1 | 1907- | ALL | |||
| 045 | I8-97534 915-0 | PIPE FUEL,DELIVERY | 1 | 1907- | ALL | (A) | ||
| 097 | I8-98041 203-0 | BRACKET CLIP | 2 | 1907- | ALL | |||
| 369 | I8-98008 098-0 | CLAMP HOSE,FUEL | 2 | 1907- | ALL | (A) ID=16 | ||
| 231 | I8-94157 054-A | RUBBER SUPPORT,FUEL PIPE | 1 | 1907- | ALL | (B) OD=17 L=50 | ||
| 029 | I8-98345 858-0 | HOSE FUEL | 1 | 1907- | ALL | (B) | ||
| 147 | I8-98150 358-0 | CLIP FUEL PIPE TO HOSE | 1 | 1907- | ALL | (B) ID=12 | ||
| 350 | I8-97534 914-0 | PIPE FUEL,DEL & RET | 1 | 1907- | ALL | |||
| 041 | I8-98150 358-0 | CLIP FUEL PIPE,FUEL TANK | 2 | 1907- | ALL | ID=12 | ||
| 147 | I8-98008 098-0 | CLIP FUEL PIPE TO HOSE | 2 | 1907- | ALL | (A) ID=16 | ||
| 024 | I8-98150 356-0 | CLIP FUEL HOSE | 2 | 1907- | ALL | (C) ID=19 | ||
| 231 | I8-97214 235-0 | RUBBER SUPPORT,FUEL PIPE | 2 | 1907- | ALL | (A) OD=16.5 L=50 | ||
| 029 | I8-97534 916-0 | HOSE FUEL | 1 | 1907- | ALL | (A) | ||
| 062 | I0-28650 825-0 | BOLT CLIP FIX | 2 | 1907- | ALL | M8X25 FLANGE | ||
| 024 | I1-09987 182-0 | CLIP FUEL HOSE | 1 | 1907- | ALL | (D) L=170.3 | ||
| 024 | I5-09707 030-1 | CLIP FUEL HOSE | 1 | 1907- | ALL | (E) L=250 | ||
| 066 | I8-98067 567-2 | HOSE FUEL,RETURN PIPE | 1 | 1907- | NPS81 | (A) | ||
| 065 | I0-01809 140-A | HOSE FUEL,DELIVERY PIPE | 1 | 1907- | ALL | (B) L=140 | ||
| 231 | I8-97077 629-A | RUBBER SUPPORT,FUEL PIPE | 1 | 1907- | NQR81 | |||
| 047 | I8-98043 639-0 | PIPE FUEL,RETURN | 1 | 1907- | ALL | (A) | ||
| 045 | I8-98043 681-1 | PIPE FUEL,DELIVERY | 1 | 1907- | ALL | (B) | ||
| 064 | I0-91180 108-0 | NUT CLIP | 2 | 1907- | ALL | M8 FLANGE | ||
| 066 | I0-01805 150-A | HOSE FUEL,RETURN PIPE | 1 | 1907- | ALL | (B) L=150 | ||
| 015 | I1-09701 027-0 | CLIP FUEL PIPE | 2 | 1907- | ALL | (B) ID=29 H=50 L=45.5 | ||
| 065 | I8-98120 951-3 | HOSE FUEL,DELIVERY PIPE | 1 | 1907- | NPS81 | (A) | ||
| 029 | I8-97534 917-0 | HOSE FUEL | 1 | 1907- | ALL | (C) | ||
| 215 | I0-91180 110-0 | NUT FUEL PIPE FIX | 2 | 1907- | ALL | M10 FLANGE | ||
| 024 | I8-98008 098-0 | CLIP FUEL HOSE | 6 | 1907- | ALL | (B) ID=16 | ||
| 124 | I8-98150 357-0 | CLIP HOSE | 1 | 1907- | ALL | (A) ID=13 | ||
| 024 | I5-09707 031-1 | CLIP FUEL HOSE | 3 | 1907- | ALL | (A) L=140 | ||
| 048 | I0-28650 825-0 | BOLT BRKT | 2 | 1907- | ALL | (A) M8X25 FLANGE | ||
| 065 | I7-00159 155-A | HOSE FUEL,DELIVERY PIPE | 1 | 1907- | NQR81 | (A) |
