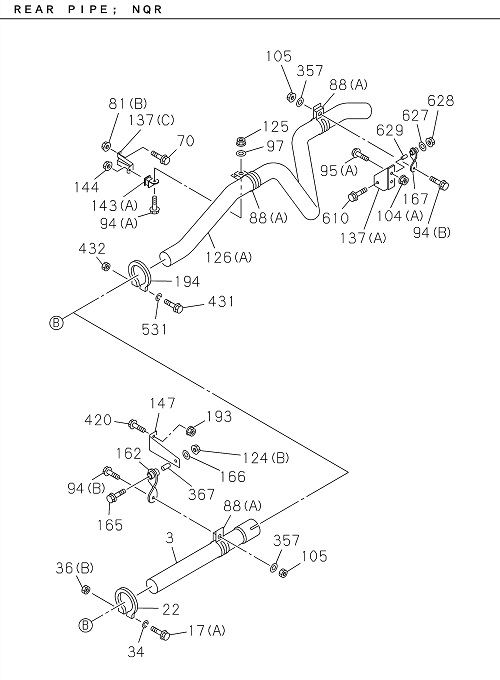

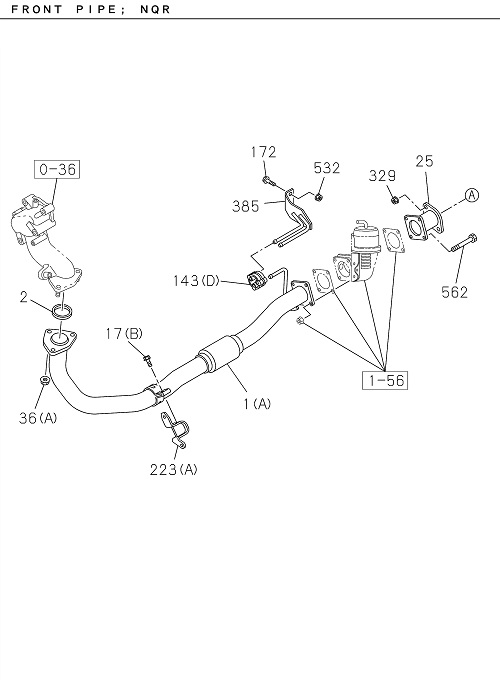

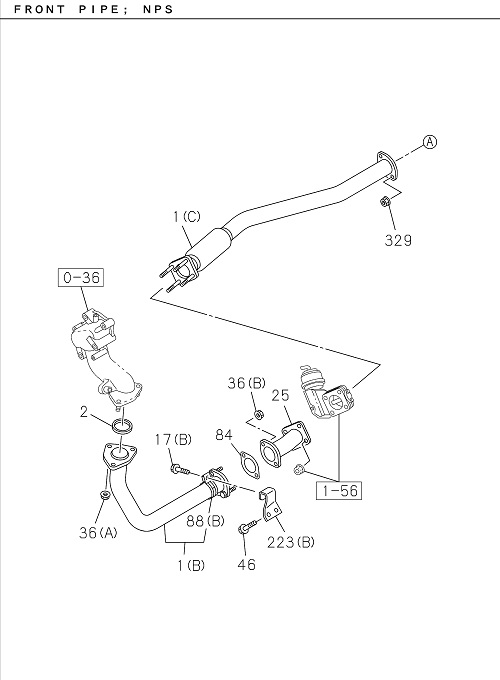

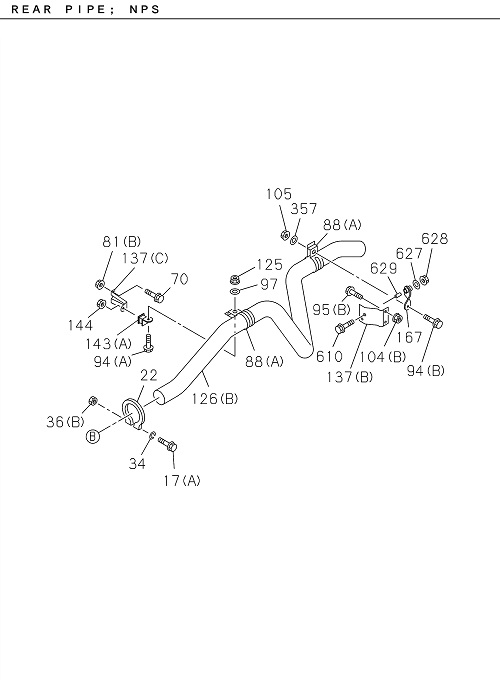

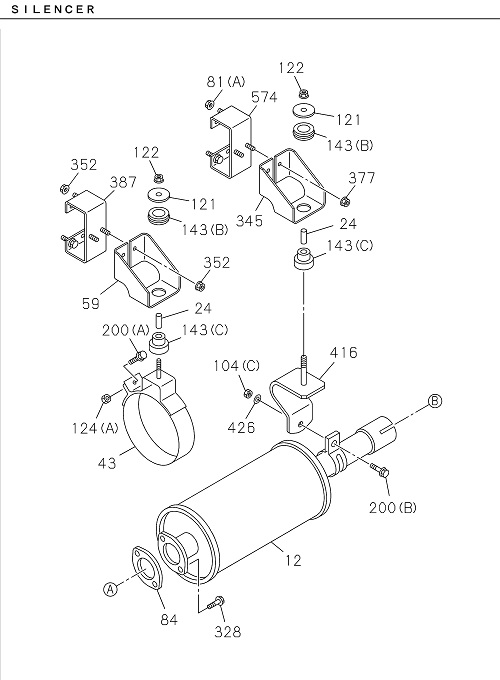

1-50 | EXHAUST PIPE AND SILENCER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 043 | I8-97207 224-0 | CLAMP EXH PIPE | 1 | 1907- | ALL | |||
| 162 | I8-98034 765-0 | RUBBER SUPPORT,TAIL PIPE | 1 | 1907- | NQR81 | L=115 | ||
| 357 | I0-91614 610-0 | WASHER PL,CLAMP | 1 | 1907- | ALL | ID=10.5 OD=22 | ||
| 610 | I0-28051 070-0 | BOLT HANGER | 1 | 1907- | ALL | M10X70 FLANGE | ||
| 137 | I8-97116 588-2 | BRACKET TAIL PIPE | 1 | 1907- | NPS81 | (B) | ||
| 088 | I8-97373 158-0 | CLAMP EXH PIPE | 1 | 1907- | NPS81 | (B) | ||
| 095 | I0-28650 825-0 | BOLT BRKT | 2 | 1907- | NPS81 | (B) M8X25 FLANGE | ||
| 046 | I0-28051 025-0 | BOLT BRKT,EXH PIPE | 2 | 1907- | NPS81 | M10X25 FLANGE | ||
| 367 | I9-22151 217-0 | COLLAR DIST,SUPPORT RUBBER | 1 | 1907- | NQR81 | L=37.5 | ||
| 532 | I0-91180 110-0 | NUT | 2 | 1907- | NQR81 | M10 FLANGE | ||
| 431 | I0-28051 070-0 | BOLT CLAMP | 1 | 1907- | NQR81 | M10X70 FLANGE | ||
| 143 | I8-97379 882-0 | RUBBER SUPPORT | 2 | 1907- | ALL | (B) | ||
| 165 | I0-28051 070-0 | BOLT SUPPORT RUBBER | 1 | 1907- | NQR81 | M10X70 FLANGE | ||
| 137 | I8-98348 111-0 | BRACKET TAIL PIPE | 1 | 1907- | ALL | (C) | ||
| 166 | I0-91614 810-0 | WASHER PL,SUPPORT RUBBER,EXH PIPE | 1 | 1907- | NQR81 | ID=10.5 OD=32 | ||
| 377 | I0-91180 110-0 | NUT BRKT | 2 | 1907- | ALL | M10 FLANGE | ||
| 036 | I8-97096 192-1 | NUT EXH PIPE | 3 | 1907- | ALL | (A) M10 FLANGE | ||
| 034 | I0-91614 510-0 | WASHER EXH PIPE | 1 | 1907- | ALL | ID=10.5 | ||
| 124 | I0-91110 508-0 | NUT SUPPORT RUBBER | 1 | 1907- | ALL | (A) M8 | ||
| 070 | I0-28650 825-0 | BOLT BRKT | 2 | 1907- | ALL | M8X25 FLANGE | ||
| 094 | I0-28051 045-0 | BOLT CLAMP | 1 | 1907- | ALL | (B) M10X45 FLANGE | ||
| 200 | I0-28051 045-0 | BOLT SUPPORT RUBBER | 1 | 1907- | ALL | (B) M10X45 FLANGE | ||
| 094 | I8-97301 165-0 | BOLT CLAMP | 1 | 1907- | ALL | (A) M10X50 FLANGE | ||
| 084 | I8-94328 352-1 | GASKET EXH PIPE | 1 | 1907- | ALL | ID=64.7 | ||
| 036 | I0-91180 110-0 | NUT EXH PIPE | 1 | 1907- | ALL | (B) M10 FLANGE | ||
| 104 | I0-91180 108-0 | NUT BRKT | 2 | 1907- | NPS81 | (B) M8 FLANGE | ||
| 193 | I0-91180 110-0 | NUT BRKT,VERTICAL PIPE | 2 | 1907- | NQR81 | M10 FLANGE | ||
| 143 | I8-97379 927-0 | RUBBER SUPPORT | 2 | 1907- | ALL | (C) | ||
| 104 | I0-91180 110-0 | NUT BRKT | 2 | 1907- | NQR81 | (A) M10 FLANGE | ||
| 574 | I8-98044 774-0 | SPACER DPD | 1 | 1907- | ALL | |||
| 104 | I0-91110 510-0 | NUT BRKT | 1 | 1907- | ALL | (C) M10 | ||
| 345 | I8-98362 715-0 | BRACKET EXH SILENCER,RR | 1 | 1907- | ALL | |||
| 022 | I8-98325 059-0 | CLAMP EXH PIPE | 1 | 1907- | ALL | |||
| 002 | I8-97381 455-0 | GASKET PIPE TO MANIF | 1 | 1907- | ALL | ID=61.2 | ||
| 121 | I8-94319 341-0 | WASHER PL,BRKT | 2 | 1907- | ALL | ID=10.5 OD=55 | ||
| 387 | I8-98044 774-0 | SPACER BRKT | 1 | 1907- | ALL | |||
| 137 | I8-98366 316-0 | BRACKET TAIL PIPE | 1 | 1907- | NQR81 | (A) | ||
| 105 | I0-91110 510-0 | NUT CLAMP | 1 | 1907- | ALL | M10 | ||
| 627 | I0-91614 810-0 | WASHER HANGER | 1 | 1907- | ALL | ID=10.5 OD=32 | ||
| 025 | I8-98332 170-0 | PIPE EXH,BRK VLV TO SILENCER | 1 | 1907- | NPS81 | |||
| 024 | I9-22151 217-0 | COLLAR DIST,CLAMP | 2 | 1907- | ALL | L=37.5 | ||
| 017 | I0-28051 040-0 | BOLT EXH PIPE | 1 | 1907- | ALL | (B) M10X40 FLANGE | ||
| 097 | I0-91614 610-0 | WASHER PL,CLAMP | 1 | 1907- | ALL | ID=10.5 OD=22 | ||
| 001 | I8-98334 724-1 | PIPE EXH | 1 | 1907- | NPS81 | (C) | ||
| 001 | I8-98244 309-0 | PIPE EXH | 1 | 1907- | NPS81 | (B) | ||
| 223 | I8-98072 165-0 | BRACKET EXH PIPE | 1 | 1907- | NPS81 | (B) | ||
| 385 | I8-98348 125-0 | BRACKET SILENCER MTG | 1 | 1907- | NQR81 | |||
| 223 | I8-98348 113-0 | BRACKET EXH PIPE | 1 | 1907- | NQR81 | (A) | ||
| 088 | I8-98346 523-0 | CLAMP EXH PIPE | 2 | 1907- | ALL | (A) ID=65 | ||
| 629 | I9-22151 217-0 | SPACER HANGER | 1 | 1907- | ALL | L=37.5 | ||
| 200 | I0-50740 845-0 | BOLT SUPPORT RUBBER | 1 | 1907- | ALL | (A) M8X45 W/LK WASHER | ||
| 416 | I8-98336 610-0 | BRACKET RR EXH PIPE | 1 | 1907- | ALL | |||
| 562 | I0-10855 870-0 | PLATE STUD,BOLT | 4 | 1907- | NQR81 | M8X70 | ||
| 125 | I0-91110 510-0 | NUT CLAMP | 1 | 1907- | ALL | M10 | ||
| 122 | I5-09440 006-0 | NUT HANGER BRKT | 2 | 1907- | ALL | M10 FLANGE | ||
| 531 | I0-91614 510-0 | WASHER CLAMP | 1 | 1907- | NQR81 | ID=10.5 | ||
| 124 | I0-91180 110-0 | NUT SUPPORT RUBBER | 1 | 1907- | NQR81 | (B) M10 FLANGE | ||
| 081 | I0-91180 108-0 | NUT BRKT | 2 | 1907- | ALL | (A) M8 FLANGE | ||
| 143 | I8-98034 767-0 | RUBBER SUPPORT | 1 | 1907- | ALL | (A) | ||
| 059 | I8-98362 715-0 | BRACKET EXH SILENCER,FRT | 1 | 1907- | ALL | |||
| 081 | I0-91180 110-0 | NUT BRKT | 2 | 1907- | ALL | (B) M10 FLANGE | ||
| 628 | I0-91180 110-0 | NUT HANGER | 1 | 1907- | ALL | M10 FLANGE | ||
| 194 | I8-98325 059-0 | CLAMP TAIL PIPE | 1 | 1907- | NQR81 | |||
| 147 | I8-98348 060-0 | BRACKET VERTICAL PIPE | 1 | 1907- | NQR81 | |||
| 172 | I0-28651 035-0 | BOLT | 2 | 1907- | NQR81 | M10X35 FLANGE | ||
| 012 | I8-98324 935-1 | SILENCER ASM EXH | 1 | 1907- | ALL | |||
| 432 | I0-91180 110-0 | NUT CLAMP | 1 | 1907- | NQR81 | M10 FLANGE | ||
| 420 | I0-28651 030-0 | BOLT BRKT,VERTICAL PIPE | 2 | 1907- | NQR81 | M10X30 FLANGE | ||
| 426 | I0-91614 610-0 | WASHER PL,BRKT | 1 | 1907- | ALL | ID=10.5 OD=22 | ||
| 328 | I0-28651 035-0 | BOLT EXH PIPE TO PIPE | 2 | 1907- | ALL | M10X35 FLANGE | ||
| 167 | I8-98034 765-0 | HANGER EXH PIPE | 1 | 1907- | ALL | L=115 | ||
| 143 | I8-97080 694-0 | RUBBER SUPPORT | 1 | 1907- | NQR81 | (D) | ||
| 003 | I8-98324 983-0 | PIPE EXH,CENTER | 1 | 1907- | NQR81 | |||
| 329 | I0-91180 110-0 | NUT EXH PIPE TO PIPE | 2 | 1907- | ALL | M10 FLANGE | ||
| 025 | I8-98332 166-0 | PIPE EXH,BRK VLV TO SILENCER | 1 | 1907- | NQR81 | |||
| 352 | I0-91180 110-0 | NUT BRKT | 4 | 1907- | ALL | M10 FLANGE | ||
| 144 | I0-91180 108-0 | NUT MTG RUBBER | 1 | 1907- | ALL | M8 FLANGE | ||
| 126 | I8-98325 023-0 | PIPE EXH,RR | 1 | 1907- | NPS81 | (B) | ||
| 001 | I8-98332 159-1 | PIPE EXH | 1 | 1907- | NQR81 | (A) | ||
| 095 | I0-28651 030-0 | BOLT BRKT | 2 | 1907- | NQR81 | (A) M10X30 FLANGE | ||
| 126 | I8-98325 024-0 | PIPE EXH,RR | 1 | 1907- | NQR81 | (A) | ||
| 017 | I0-28051 070-0 | BOLT EXH PIPE | 1 | 1907- | ALL | (A) M10X70 FLANGE |
