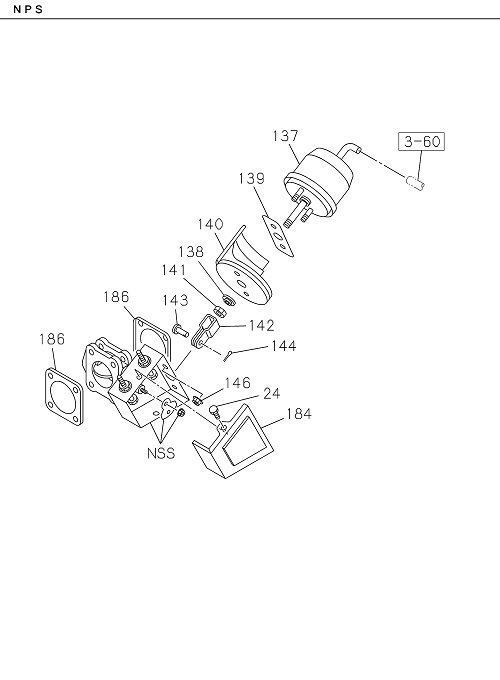

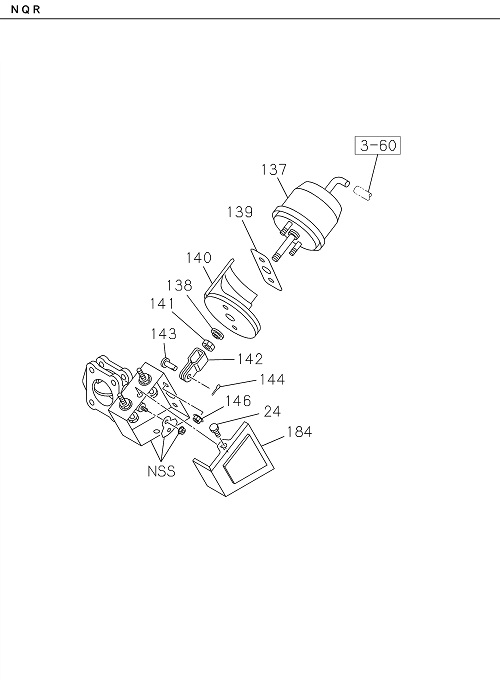

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 144 | I8-97029 428-0 | PIN SPLIT,EXH BRK VLV | 1 | 1907- | ALL | |||
| 137 | I8-98368 750-0 | CHAMBER POWER | 1 | 1907- | NPS81 | |||
| 141 | I9-09111 508-A | NUT CLEVIS,EXH BRK VLV | 1 | 1907- | ALL | |||
| 137 | I8-98070 470-0 | CHAMBER POWER | 1 | 1907- | NQR81 | |||
| 024 | I8-97065 029-0 | BOLT COVER | 2 | 1907- | ALL | |||
| 184 | I8-98070 514-0 | COVER BRKT | 1 | 1907- | ALL | |||
| 139 | I8-94328 234-0 | GASKET EXH BRK VLV | 1 | 1907- | ALL | |||
| 143 | I8-94311 452-0 | PIN EXH BRK VLV | 1 | 1907- | ALL | |||
| 140 | I8-97129 576-0 | INSULATOR EXH BRK VLV | 1 | 1907- | NPS81 | |||
| 146 | I0-91180 108-0 | NUT EXH BRK VLV | 2 | 1907- | ALL | M8 FLANGE | ||
| 186 | I8-98022 713-0 | GASKET EXH BRK VLV,BODY | 2 | 1907- | NPS81 | |||
| 140 | I8-97173 333-0 | INSULATOR EXH BRK VLV | 1 | 1907- | NQR81 | |||
| 138 | I8-94311 446-0 | BEARING EXH BRK VLV | 1 | 1907- | ALL | |||
| 142 | I8-97177 311-0 | CLEVIS EXH BRK VLV | 1 | 1907- | ALL |
