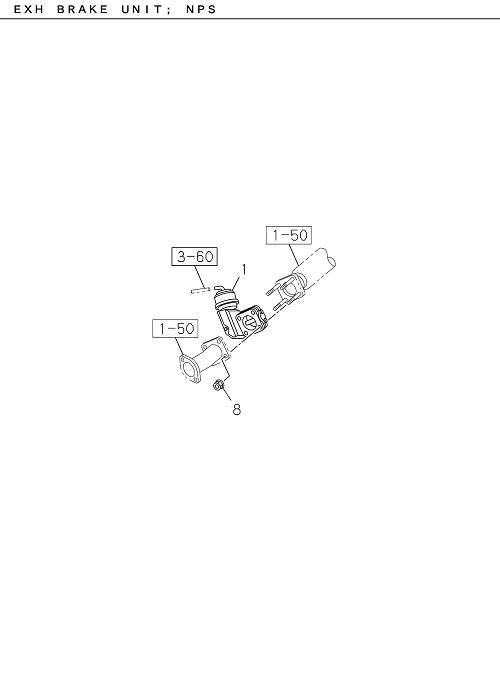

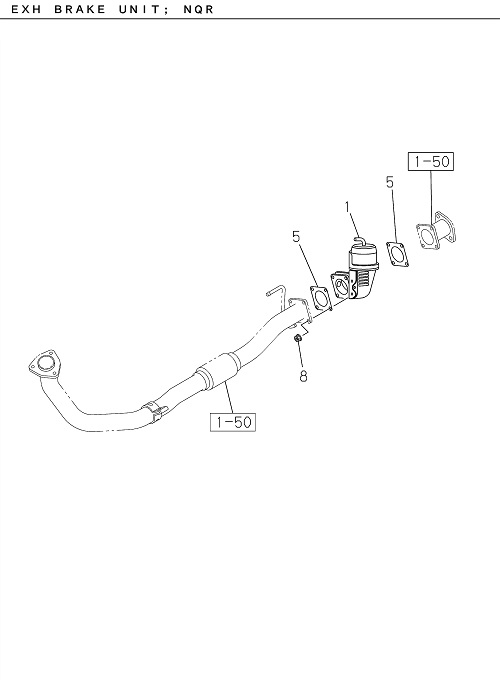

1-56 | EXHAUST BRAKE SYSTEM
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 092 | I0-28650 825-0 | BOLT MAG VLV | 1 | 1907- | ALL | M8X25 FLANGE | ||
| 008 | I8-97581 234-0 | NUT EXH BRAKE UNIT FIX | 4 | 1907- | ALL | M8 W/LK WASHER | ||
| 086 | I8-98043 344-0 | VALVE MAG,EXH BRK | 1 | 1907- | ALL | |||
| 014 | I8-97033 888-0 | FILTER AIR,EXH BRAKE | 1 | 1907- | NPS81 | |||
| 001 | I8-98244 304-0 | BRAKE UNIT EXH | 1 | 1907- | NPS81 | |||
| 015 | I0-91180 108-0 | NUT AIR FILTER | 2 | 1907- | NPS81 | M8 FLANGE | ||
| 094 | I8-98034 053-3 | BRACKET MAG VLV,EXH BRAKE | 1 | 1907- | ALL | |||
| 001 | I8-98333 421-0 | BRAKE UNIT EXH | 1 | 1907- | NQR81 | |||
| 122 | I8-98087 988-0 | PROTECTOR MAG VLV | 1 | 1907- | ALL | |||
| 017 | I0-28650 825-0 | BOLT BRKT | 1 | 1907- | ALL | M8X25 FLANGE | ||
| 005 | I8-97373 108-0 | GASKET EXH BRAKE UNIT | 2 | 1907- | NQR81 | ID=64 | ||
| 126 | I0-91180 108-0 | NUT BRKT | 1 | 1907- | ALL | M8 FLANGE |
