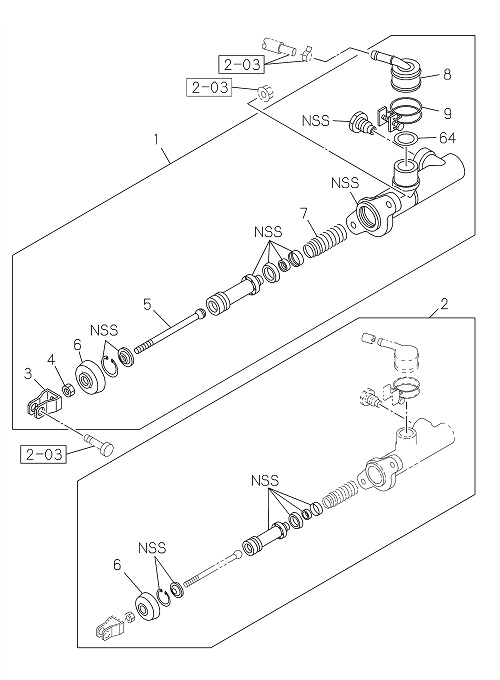

2-08 | CLUTCH MASTER CYLINDER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 004 | I9-09111 508-A | NUT JAW JOINT | 1 | 1907- | ALL | M8 | ||
| 008 | I8-97163 191-0 | CONNECTOR PIPE,CLU M/CYL | 1 | 1907- | ALL | |||
| 006 | I8-94412 200-0 | BOOT CLU M/CYL | 1 | 1907- | ALL | |||
| 002 | I5-87832 226-0 | REPAIR KIT CLU M/CYL | 1 | 1907- | ALL | |||
| 003 | I8-97167 770-0 | JOINT JAW,CLU M/CYL | 1 | 1907- | ALL | |||
| 064 | I8-97167 767-0 | GASKET CONNECTOR | 1 | 1907- | ALL | |||
| 005 | I8-97167 768-0 | ROD PUSH,CLU M/CYL | 1 | 1907- | ALL | |||
| 002 | I6-87832 226-0 | REPAIR KIT CLU M/CYL | 1 | 1907- | ALL | (IADG) | ||
| 009 | I8-97167 773-0 | CLAMP PIPE CONNECTOR,CLU M/CYL | 1 | 1907- | ALL | |||
| 001 | I8-98117 639-0 | CYLINDER ASM CLUTCH MASTER | 1 | 1907- | ALL | |||
| 007 | I8-97167 780-0 | SPRING ASM CLU M/CYL | 1 | 1907- | ALL |
