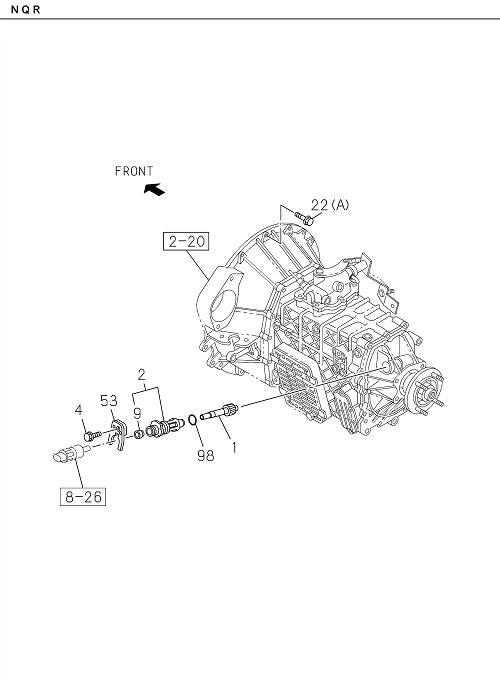

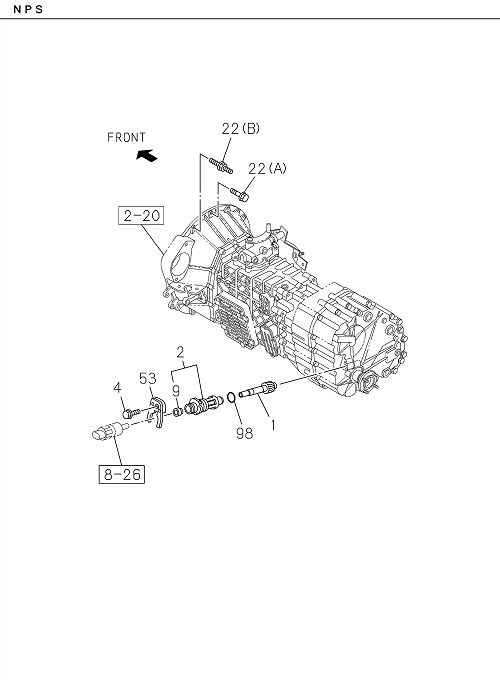

2-25 | SPEEDOMETER DRIVEN GEAR
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 022 | I8-97365 449-0 | BOLT TRANS CASE TO ENG | 2 | 1907- | NQR81 | (A) M10X55 FLANGE | ||
| 053 | I8-98046 217-0 | PLATE LOCK,DRIVEN GEAR | 1 | 1907- | ALL | |||
| 022 | I8-97178 725-0 | BOLT TRANS CASE TO ENG | 2 | 1907- | NPS81 | (B) M10X35 L=65 | ||
| 004 | I0-28650 820-0 | BOLT RET,DRIVEN GEAR | 1 | 1907- | ALL | M8X20 FLANGE | ||
| 022 | I0-28151 035-0 | BOLT TRANS CASE TO ENG | 3 | 1907- | ALL | (A) M10X35 FLANGE | ||
| 002 | I8-97253 124-0 | BUSHING DRIVEN GEAR,SPEEDOMETER | 1 | 1907- | NQR81 | MARK "10,11,16,17" | ||
| 022 | I0-28151 050-0 | BOLT TRANS CASE TO ENG | 2 | 1907- | NPS81 | (A) M10X50 FLANGE | ||
| 001 | I8-97253 559-1 | GEAR DRIVEN,SPD | 1 | 1907- | NQR81 | Z=11 | ||
| 009 | I8-97131 328-1 | SEAL OIL,DRIVEN GEAR | 1 | 1907- | ALL | |||
| 001 | I8-97253 562-1 | GEAR DRIVEN,SPD | 1 | 1907- | NPS81 | Z=13 | ||
| 022 | I0-28151 030-0 | BOLT TRANS CASE TO ENG | 4 | 1907- | ALL | (A) M10X30 FLANGE | ||
| 002 | I8-97253 125-0 | BUSHING DRIVEN GEAR,SPEEDOMETER | 1 | 1907- | NPS81 | MARK "12,13,14,15" | ||
| 098 | I8-97075 755-0 | SEAL OIL,BUSH | 1 | 1907- | ALL |
