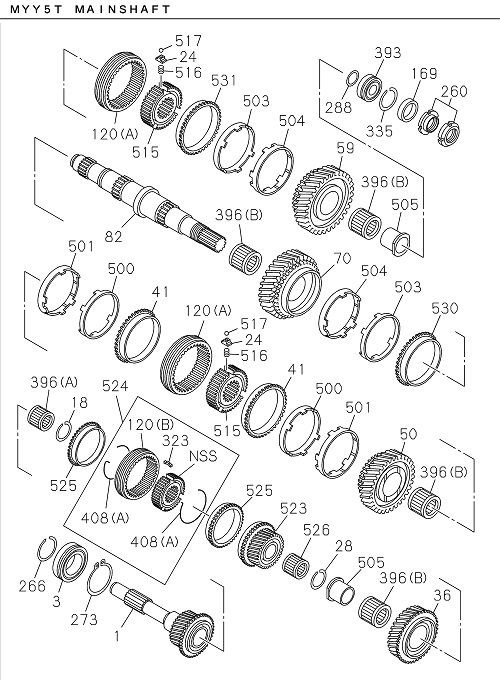

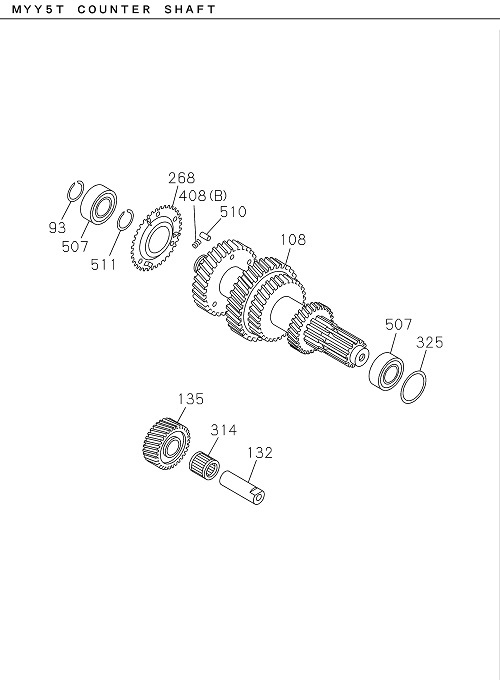

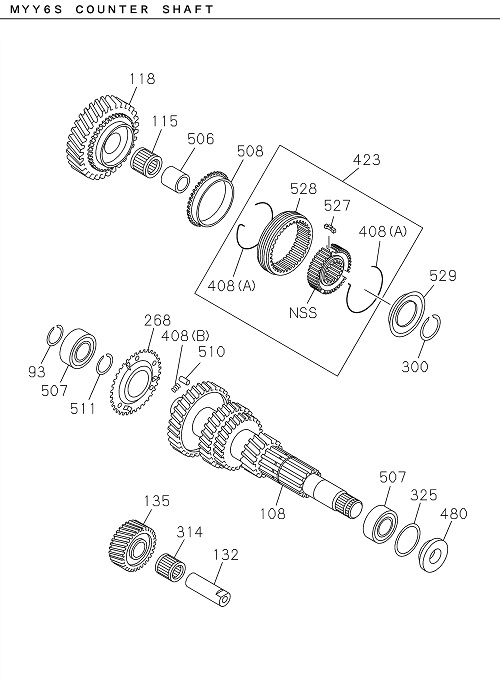

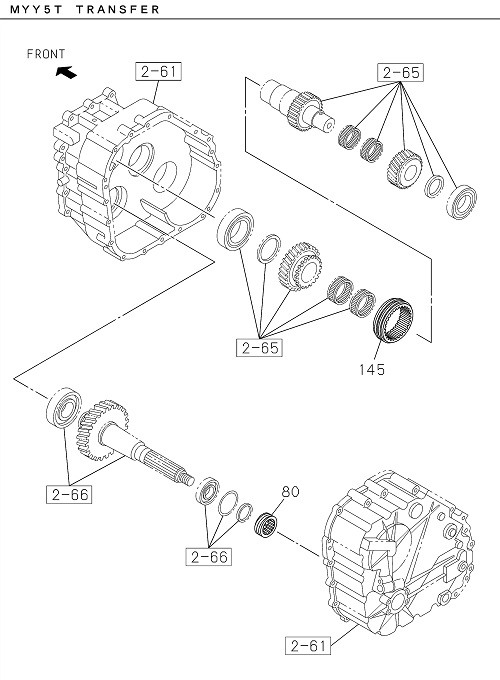

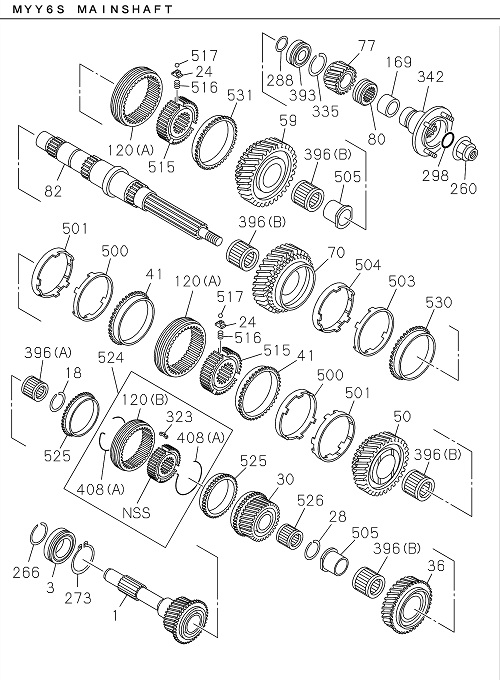

2-26 | MANUAL TRANSMISSION GEAR
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 169 | I8-97252 937-1 | COLLAR MAINSHAFT | 1 | 1907- | MYY6S | |||
| 093 | I8-97254 734-0 | RING SNAP,COUNTER FRT BRG | 1 | 1907- | ALL | ID=30.7 T=1.9 | ||
| 503 | I8-97241 309-1 | RING OUTSIDE,LOW & REV | 1 | 1907- | ALL | |||
| 408 | I8-94148 196-0 | SPRING | 3 | 1907- | ALL | (B) | ||
| 325 | I8-97257 622-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.89 | ||
| 028 | I8-97254 743-0 | RING SNAP,3RD GEAR | 1 | 1907- | ALL | ID=46.5 T=1.8 | ||
| 300 | I8-97365 617-0 | RING SNAP COUNTER SHAFT,RR END | 1 | 1907- | MYY6S | ID=30.7 T=1.6 | ||
| 080 | I8-97253 556-0 | GEAR SPD DRIVE | 1 | 1907- | MYY6S | Z=4 | ||
| 300 | I8-97254 734-0 | RING SNAP COUNTER SHAFT,RR END | 1 | 1907- | MYY6S | ID=30.7 T=1.9 | ||
| 003 | I8-97253 098-1 | BEARING TOP GEAR SHAFT | 1 | 1907- | ALL | |||
| 080 | I8-97318 465-0 | GEAR SPD DRIVE | 1 | 1907- | MYY5T | Z=4 | ||
| 530 | I6-97241 306-0 | RING BLOCK,LOW | 1 | 1907- | ALL | (IADG) Z=45 | ||
| 260 | I8-97360 410-0 | NUT MAINSHAFT END | 1 | 1907- | MYY6S | M27 H=25 | ||
| 524 | I8-97366 526-0 | SLEEVE & HUB ASM TOP-4TH,OD | 1 | 1907- | ALL | |||
| 070 | I8-97350 010-0 | GEAR 1ST,MAINSHAFT | 1 | 1907- | ALL | Z=43 | ||
| 325 | I8-97252 673-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.71 | ||
| 505 | I8-97253 119-2 | COLLAR 3RD & REV | 2 | 1907- | ALL | |||
| 325 | I8-97252 666-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.29 | ||
| 511 | I8-97254 767-0 | RING SNAP,ANTI LASH PLATE | 1 | 1907- | ALL | |||
| 300 | I8-97254 728-0 | RING SNAP COUNTER SHAFT,RR END | 1 | 1907- | MYY6S | ID=30.7 T=1.8 | ||
| 059 | I8-97241 244-0 | GEAR REV MAINSHAFT | 1 | 1907- | ALL | Z=41 | ||
| 268 | I8-97252 684-1 | PLATE ANTI LASH,COUNTER | 1 | 1907- | MYY6S | |||
| 325 | I8-97252 674-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.77 | ||
| 325 | I8-97252 667-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.35 | ||
| 517 | I8-97252 935-0 | BALL SYNCHRO,INDEX | 6 | 1907- | ALL | |||
| 041 | I8-97241 306-1 | RING BLOCK,2ND & 3RD | 2 | 1907- | ALL | Z=45 | ||
| 273 | I8-97254 610-0 | RING SNAP,BRG OUTER | 1 | 1907- | ALL | |||
| 118 | I8-97386 580-0 | GEAR 6TH,COUNTER | 1 | 1907- | MYY6S | Z=50 | ||
| 423 | I8-97367 022-0 | SLEEVE & HUB ASM 6TH | 1 | 1907- | MYY6S | |||
| 135 | I8-98031 869-1 | GEAR REV IDLER | 1 | 1907- | ALL | Z=25 | ||
| 036 | I8-97241 234-0 | GEAR 3RD,MAINSHAFT | 1 | 1907- | ALL | Z=34 | ||
| 516 | I8-97254 835-0 | SPRING SYNCHRO,INDEX | 6 | 1907- | ALL | |||
| 325 | I8-97306 188-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.11 | ||
| 530 | I8-97241 306-1 | RING BLOCK,LOW | 1 | 1907- | ALL | Z=45 | ||
| 266 | I8-97286 916-0 | RING SNAP,BRG INNER | 1 | 1907- | ALL | |||
| 288 | I8-97252 942-0 | SPACER BRG,MAINSHAFT | 1 | 1907- | ALL | |||
| 030 | I8-97241 230-0 | GEAR 4TH,MAINSHAFT | 1 | 1907- | MYY6S | Z=28 | ||
| 024 | I8-97241 313-1 | BLOCK INDEX,SYN | 6 | 1907- | ALL | |||
| 500 | I6-97241 309-0 | RING OUTSIDE,3RD & 2ND | 2 | 1907- | ALL | (IADG) | ||
| 503 | I6-97241 309-0 | RING OUTSIDE,LOW & REV | 1 | 1907- | ALL | (IADG) | ||
| 260 | I8-97314 121-1 | NUT MAINSHAFT END | 1 | 1907- | MYY5T | |||
| 335 | I8-97254 722-0 | RING SNAP,BEARING | 1 | 1907- | ALL | |||
| 120 | I8-94421 871-1 | SLEEVE | 1 | 1907- | ALL | (B) Z=45 | ||
| 515 | I8-97241 298-3 | HUB CLU,1ST & REV,2ND & 3RD | 2 | 1907- | ALL | |||
| 001 | I8-98387 238-0 | SHAFT TOP GEAR,TRANS | 1 | 1907- | MYY6S | Z=26 | ||
| 115 | I8-97253 113-0 | BEARING NEEDLE,6TH, COUNTER | 1 | 1907- | MYY6S | OD=49.75 | ||
| 077 | I8-97386 582-0 | GEAR 6TH,MAINSHAFT | 1 | 1907- | MYY6S | Z=21 | ||
| 082 | I8-97314 394-1 | SHAFT MAIN,TRANS | 1 | 1907- | MYY5T | Z=28-42-42-21 | ||
| 342 | I8-98031 862-0 | FLANGE OUTPUT | 1 | 1907- | MYY6S | |||
| 145 | I8-98258 279-0 | SLEEVE HIGH-LOW SHIFT,TRANSFER | 1 | 1907- | MYY5T | Z=45 | ||
| 268 | I8-97257 300-1 | PLATE ANTI LASH,COUNTER | 1 | 1907- | MYY5T | |||
| 507 | I8-97253 107-0 | BEARING COUNTER SHAFT,FRT & RR | 2 | 1907- | ALL | |||
| 298 | I8-98028 226-0 | GASKET MAINSHAFT | 1 | 1907- | MYY6S | ID=30.6 T=5.7 | ||
| 393 | I8-97253 105-1 | BEARING MAINSHAFT END | 1 | 1907- | ALL | |||
| 529 | I8-97248 952-0 | PLATE STOPPER,6TH | 1 | 1907- | MYY6S | |||
| 500 | I8-97241 309-1 | RING OUTSIDE,3RD & 2ND | 2 | 1907- | ALL | |||
| 001 | I8-98031 848-0 | SHAFT TOP GEAR,TRANS | 1 | 1907- | MYY5T | Z=28 | ||
| 169 | I8-97314 455-0 | COLLAR MAINSHAFT | 1 | 1907- | MYY5T | |||
| 325 | I8-97252 671-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.59 | ||
| 408 | I8-97366 040-1 | SPRING | 2 | 1907- | ALL | (A) | ||
| 093 | I8-97254 740-0 | RING SNAP,COUNTER FRT BRG | 1 | 1907- | ALL | ID=30.7 T=2.1 | ||
| 525 | I8-97309 532-0 | RING BLOCK,TOP & 4TH,OD | 2 | 1907- | ALL | Z=45 | ||
| 480 | I8-97253 123-1 | WASHER THRUST,6TH | 1 | 1907- | MYY6S | |||
| 523 | I8-97241 231-0 | GEAR OD,MAINSHAFT | 1 | 1907- | MYY5T | Z=22 | ||
| 396 | I8-97253 102-1 | BEARING NEEDLE,MAINSHAFT | 1 | 1907- | ALL | (A) | ||
| 314 | I8-97253 114-0 | BEARING NEEDLE,REV GEAR | 1 | 1907- | ALL | |||
| 325 | I8-97252 668-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.41 | ||
| 501 | I6-97241 312-0 | RING INSIDE,3RD & 2ND | 2 | 1907- | ALL | (IADG) | ||
| 093 | I8-97254 742-0 | RING SNAP,COUNTER FRT BRG | 1 | 1907- | ALL | ID=30.7 T=2.3 | ||
| 120 | I8-98258 279-0 | SLEEVE | 2 | 1907- | ALL | (A) Z=45 | ||
| 003 | I8-97253 098-A | BEARING TOP GEAR SHAFT | 1 | 1907- | ALL | (IADG) | ||
| 108 | I8-97380 627-1 | SHAFT COUNTER | 1 | 1907- | MYY6S | Z=47-39-33-20 | ||
| 325 | I8-97252 670-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.53 | ||
| 531 | I6-97368 343-0 | RING BLOCK,REV | 1 | 1907- | ALL | (IADG) Z=45 | ||
| 050 | I8-97241 237-1 | GEAR 2ND,MAINSHAFT | 1 | 1907- | ALL | Z=38 | ||
| 323 | I8-94448 202-2 | INSERT | 3 | 1907- | ALL | |||
| 082 | I8-97253 116-3 | SHAFT MAIN,TRANS | 1 | 1907- | MYY6S | Z=28-42-42-21 | ||
| 506 | I8-97253 121-1 | COLLAR 6TH,COUNTER | 1 | 1907- | MYY6S | |||
| 300 | I8-97254 727-0 | RING SNAP COUNTER SHAFT,RR END | 1 | 1907- | MYY6S | ID=30.7 T=1.7 | ||
| 504 | I6-97241 312-0 | RING INSIDE,LOW & REV | 1 | 1907- | ALL | (IADG) | ||
| 525 | I6-97309 532-0 | RING BLOCK,TOP & 4TH,OD | 2 | 1907- | ALL | Z=45 | ||
| 524 | I6-97366 526-0 | SLEEVE & HUB ASM TOP-4TH,OD | 1 | 1907- | ALL | |||
| 115 | I8-98286 084-0 | BEARING NEEDLE,6TH, COUNTER | 1 | 1907- | MYY6S | OD=49.8 | ||
| 325 | I8-97252 672-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.65 | ||
| 510 | I9-08160 825-0 | PIN STRAIGHT,ANTI LASH | 3 | 1907- | ALL | |||
| 531 | I8-97368 343-0 | RING BLOCK,REV | 1 | 1907- | ALL | Z=45 | ||
| 325 | I8-97306 189-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.17 | ||
| 325 | I8-97306 190-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.23 | ||
| 504 | I8-97241 312-1 | RING INSIDE,LOW & REV | 1 | 1907- | ALL | |||
| 041 | I6-97241 306-0 | RING BLOCK,2ND & 3RD | 2 | 1907- | ALL | (IADG) Z=45 | ||
| 325 | I8-97252 669-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.47 | ||
| 526 | I8-97253 112-0 | BEARING NEEDLE,4TH & 5TH | 1 | 1907- | ALL | |||
| 108 | I8-97380 630-1 | SHAFT COUNTER | 1 | 1907- | MYY5T | Z=45-49-33-20 | ||
| 018 | I8-97254 728-0 | RING SNAP,CLU HUB | 1 | 1907- | ALL | ID=30.7 T=1.8 | ||
| 132 | I8-97252 655-0 | SHAFT REV | 1 | 1907- | ALL | |||
| 501 | I8-97241 312-1 | RING INSIDE,3RD & 2ND | 2 | 1907- | ALL | |||
| 396 | I8-97253 110-0 | BEARING NEEDLE,MAINSHAFT | 4 | 1907- | ALL | (B) | ||
| 325 | I8-97252 675-0 | SHIM COUNTER SHAFT BRG | 1 | 1907- | ALL | ID=62.7 T=2.83 |
