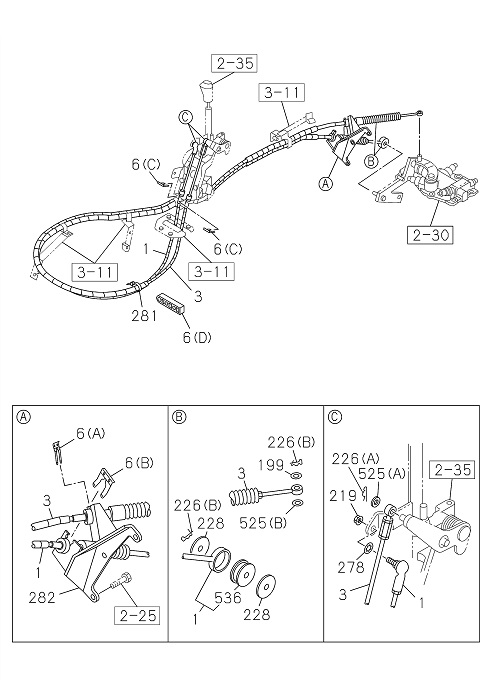

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 219 | I8-94363 045-0 | NUT FLANGE,SHAFT CABLE | 1 | 1907- | ALL | M8 T=8.0 | ||
| 006 | I8-97211 011-0 | CLIP CABLE | 1 | 1907- | ALL | (B) ID=19.2 | ||
| 278 | I0-91541 208-0 | WASHER LK,SHIFT WIRE | 1 | 1907- | ALL | ID=8.4 TOOTH LK INT | ||
| 006 | I8-97093 491-1 | CLIP CABLE | 1 | 1907- | MYY6S | (D) | ||
| 006 | I8-97011 448-0 | CLIP CABLE | 2 | 1907- | ALL | (C) | ||
| 226 | I8-94157 841-0 | PIN SHIFT CABLE | 1 | 1907- | ALL | (A) L=27.7 | ||
| 525 | I8-94242 854-0 | WASHER SHIFT CABLE | 1 | 1907- | ALL | (B) ID=8.4 OD=14 | ||
| 226 | I8-94170 378-0 | PIN SHIFT CABLE | 2 | 1907- | ALL | (B) L=23 | ||
| 003 | I8-98025 442-3 | CABLE SELECT,TRANS CONT | 1 | 1907- | ALL | L=3202 | ||
| 228 | I8-97182 975-0 | WASHER PL,SHIFT CABLE | 2 | 1907- | ALL | ID=8.2 OD=40 | ||
| 001 | I8-98146 856-0 | CABLE SHIFT,TRANS CONT | 1 | 1907- | ALL | L=3090 | ||
| 282 | I8-98032 395-0 | BRACKET TRANS SIDE | 1 | 1907- | ALL | |||
| 006 | I1-09701 209-1 | CLIP CABLE | 1 | 1907- | ALL | (A) ID=22.2 | ||
| 536 | I8-98097 681-0 | DAMPER CABLE | 1 | 1907- | ALL | |||
| 281 | I5-09707 031-1 | CLIP BAND | 1 | 1907- | ALL | L=140 | ||
| 199 | I0-91610 508-0 | WASHER PL,SELECT | 1 | 1907- | ALL | ID=8.4 OD=16 | ||
| 525 | I0-91614 508-0 | WASHER SHIFT CABLE | 1 | 1907- | ALL | (A) ID=8.4 OD=16 |
