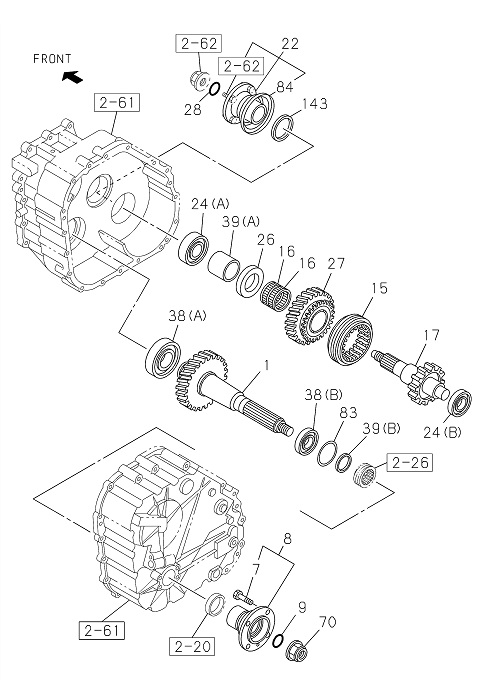

2-66 | MANUAL TRANSFER GEAR OUTPUT
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 083 | I8-97326 903-0 | SHIM OUTPUT SHAFT | 2 | 1907- | NPS81 | T=0.50 | ||
| 083 | I8-97326 906-0 | SHIM OUTPUT SHAFT | 1 | 1907- | NPS81 | T=0.30 | ||
| 007 | I8-98031 764-0 | BOLT COUPLING DRIVER | 4 | 1907- | NPS81 | |||
| 083 | I8-97326 905-0 | SHIM OUTPUT SHAFT | 1 | 1907- | NPS81 | T=0.35 | ||
| 017 | I8-97326 900-0 | SHAFT OUTPUT | 1 | 1907- | NPS81 | |||
| 008 | I8-98079 515-0 | FLANGE OUTPUT | 1 | 1907- | NPS81 | |||
| 024 | I8-97326 893-0 | BEARING FRT DRIVE SHAFT,FRT,TRANSFER | 1 | 1907- | NPS81 | (B) | ||
| 038 | I8-97326 909-0 | BEARING RR DRIVE SHAFT,RR,TRANSFER | 1 | 1907- | NPS81 | (B) | ||
| 028 | I8-97326 890-0 | GASKET SHAFT | 1 | 1907- | NPS81 | |||
| 001 | I8-97326 911-1 | SHAFT GEAR,OUTPUT,RR | 1 | 1907- | NPS81 | |||
| 009 | I8-98028 226-0 | GASKET SHAFT | 1 | 1907- | NPS81 | ID=30.6 T=5.7 | ||
| 039 | I8-97326 901-0 | COLLAR DIST,OUTPUT | 1 | 1907- | NPS81 | (B) | ||
| 083 | I8-97326 902-0 | SHIM OUTPUT SHAFT | 1 | 1907- | NPS81 | T=0.18 | ||
| 083 | I8-97326 907-0 | SHIM OUTPUT SHAFT | 1 | 1907- | NPS81 | T=0.25 | ||
| 022 | I8-97328 676-0 | FLANGE OUTPUT,FRT | 1 | 1907- | NPS81 | |||
| 083 | I8-97326 904-0 | SHIM OUTPUT SHAFT | 1 | 1907- | NPS81 | T=0.40 | ||
| 038 | I8-97326 910-0 | BEARING RR DRIVE SHAFT,RR,TRANSFER | 1 | 1907- | NPS81 | (A) | ||
| 024 | I8-97326 894-0 | BEARING FRT DRIVE SHAFT,FRT,TRANSFER | 1 | 1907- | NPS81 | (A) | ||
| 143 | I8-97326 889-0 | SEAL OIL | 1 | 1907- | NPS81 | |||
| 070 | I8-97360 410-0 | NUT RR OUTPUT SHAFT,TRANSFER | 1 | 1907- | NPS81 | M27 H=25 | ||
| 026 | I8-97326 896-0 | WASHER THRUST | 1 | 1907- | NPS81 | |||
| 039 | I8-97326 895-0 | COLLAR DIST,OUTPUT | 1 | 1907- | NPS81 | (A) | ||
| 015 | I1-33262 175-1 | SLEEVE NEUTRAL & FRT | 1 | 1907- | NPS81 | |||
| 016 | I8-97351 791-0 | BEARING OUTPUT GEAR | 2 | 1907- | NPS81 | |||
| 084 | I8-97326 891-0 | COVER DUST | 1 | 1907- | NPS81 | |||
| 027 | I8-97326 899-0 | GEAR OUTPUT,FRT | 1 | 1907- | NPS81 |
